Air cushion roof for Zone.college
Contact form
+31 (0)316-250830

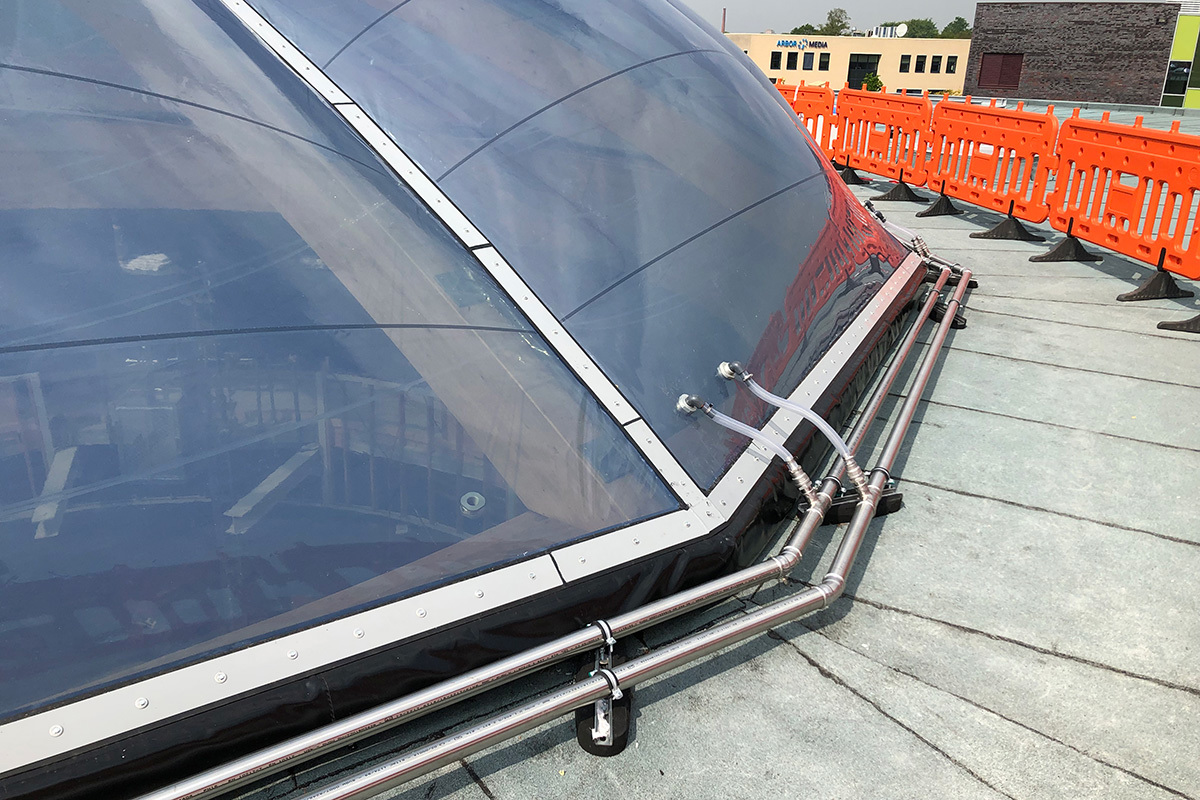

Buitink TechnologyBuitink Technology realized an ETFE air cushion roof on behalf of "Woodteq Houtconstructies" for the new Zone.college in Doetinchem (Holland). A school having so called Green and Innovative education.

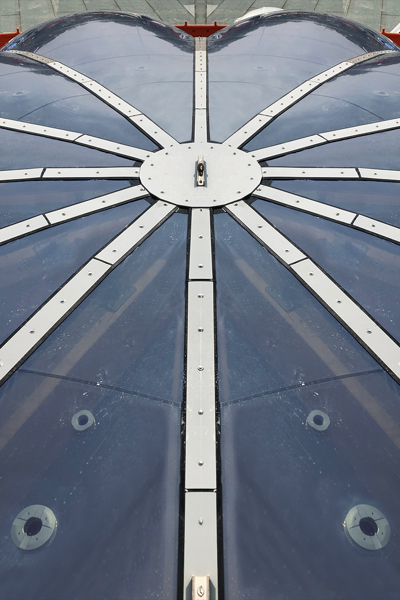

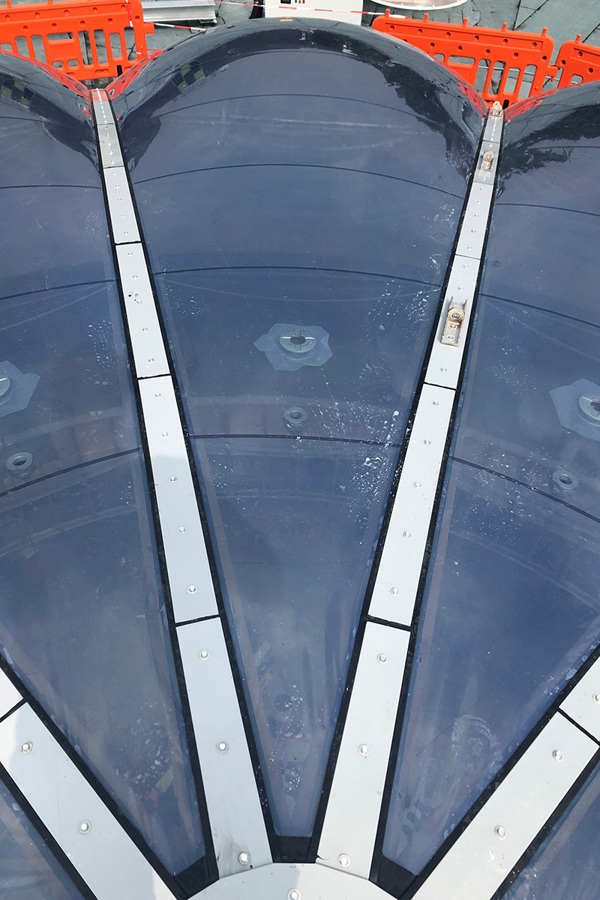

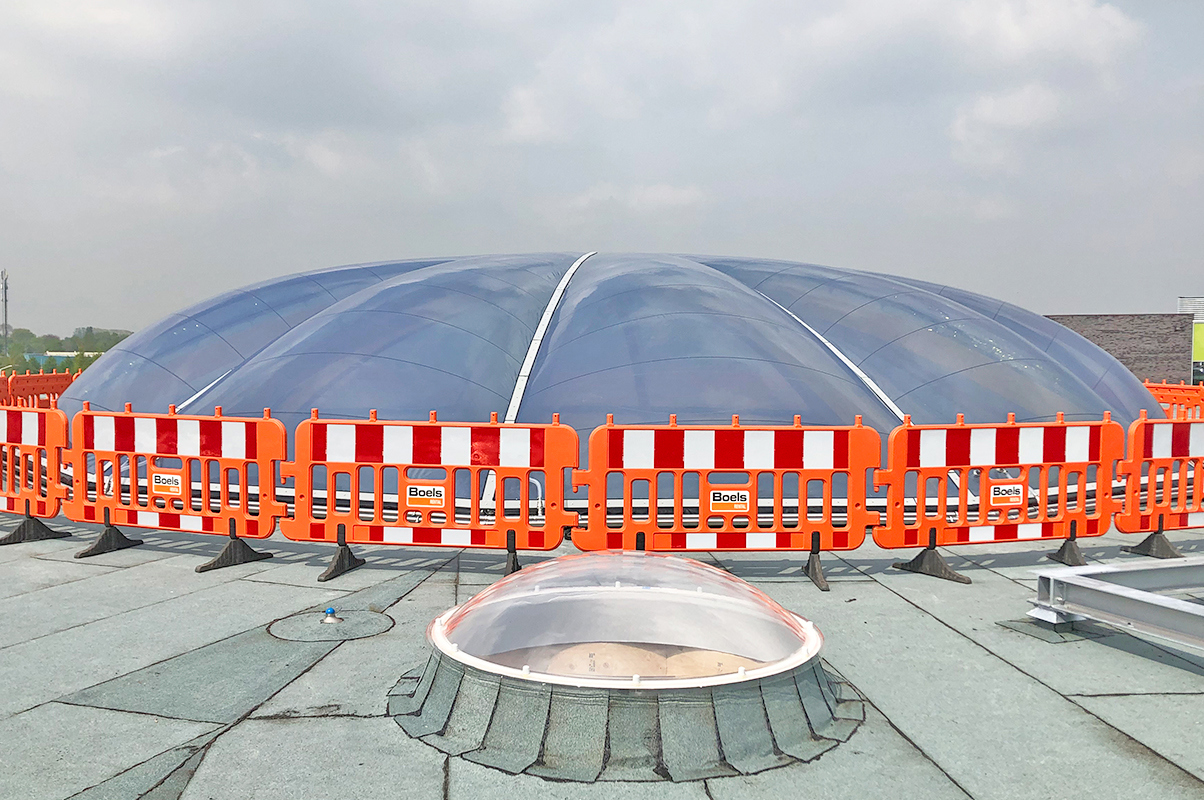

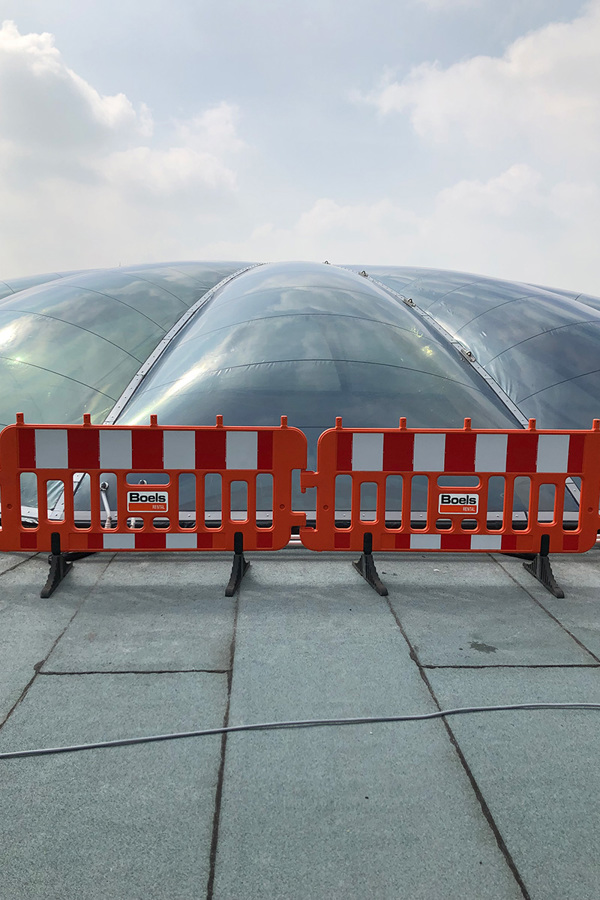

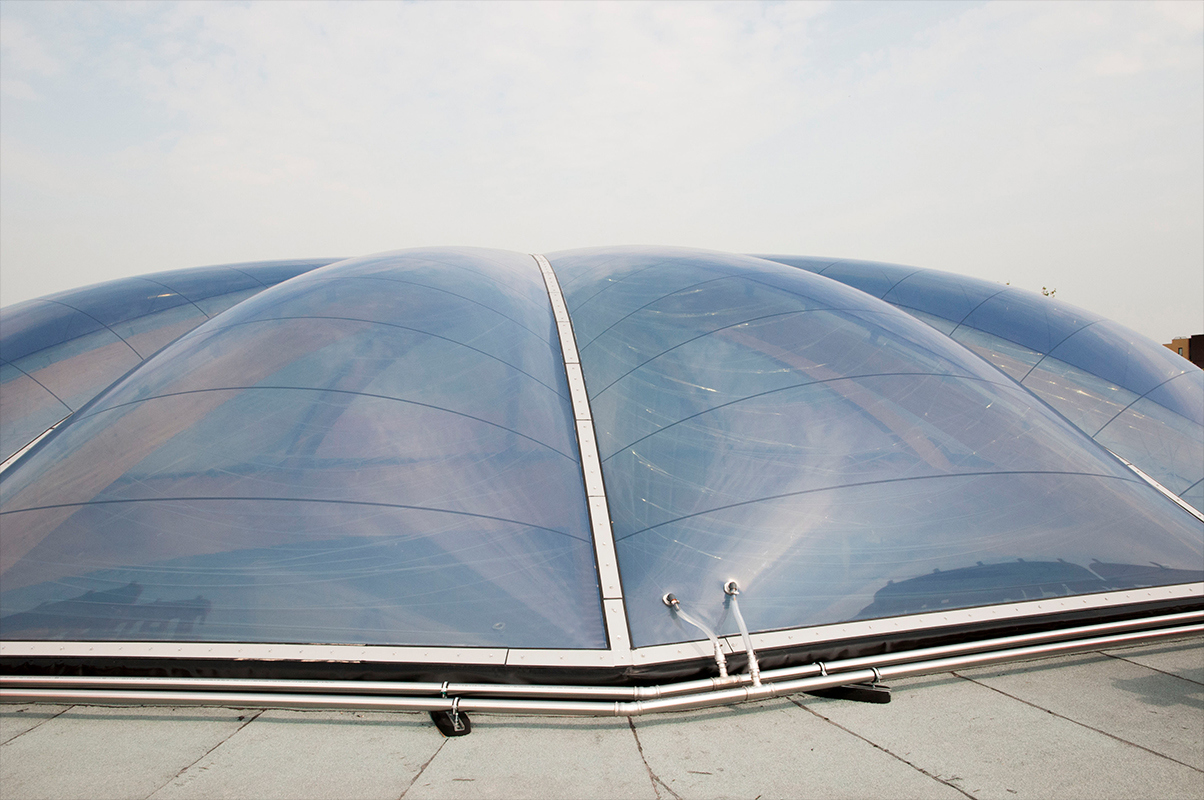

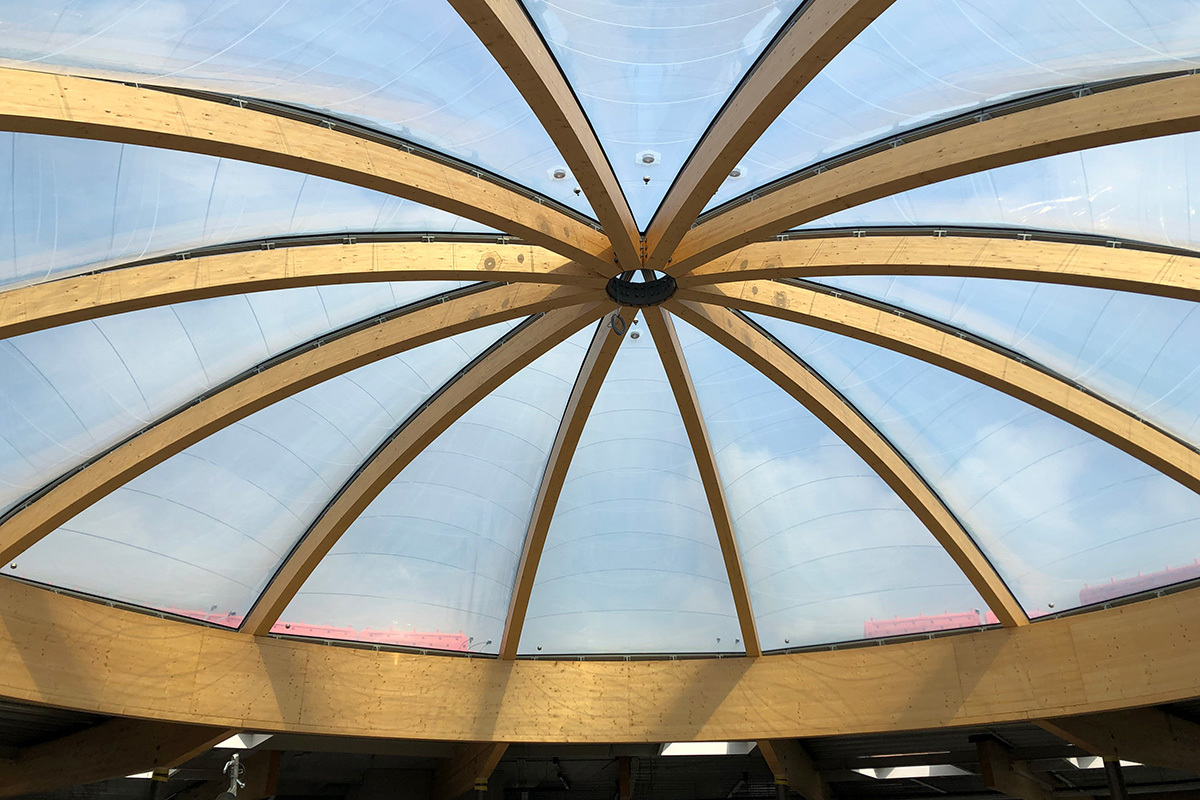

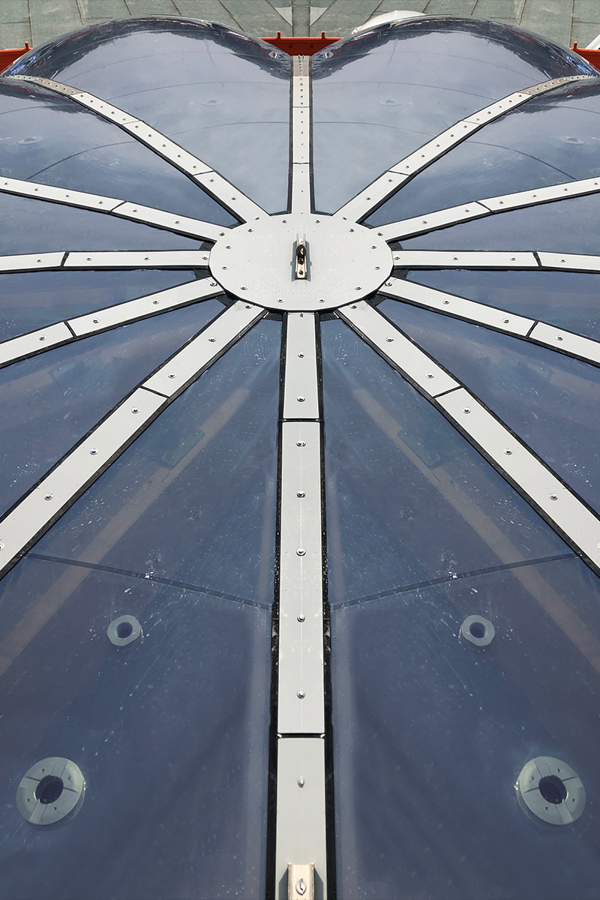

The air cushion roof consists of 12 ETFE cushions with a total surface area of about 200 m2. The "pie shaped" ETFE cushion arrangement exhibit an outstanding circular roof.
Heat reflecting ETFE roof
The air cushion roof consists of 4 layers of ETFE foil (so 3 air chambers) and is fully transparent. The outer layer of ETFE has an IR (infra red) block to reduce heat input through solar radiation.
| LTA-value: | about 0,39 |
| ZTA-value: |
about 0,38 |
| U-value: | about 2 W/ m2 K |
Projectdata air cushion roof
| Size: | 200 m2, consisting of 12 cushions |
| Material: | ETFE foil, transparant with IR block |
| Client: | Zone.college |
| Main contractor: | BINX Smartility |
| Wood construction: | Woodteq Houtconstructies |
| ETFE air cushion roof: | Buitink Technology |
| Year of execution: | 2019 |

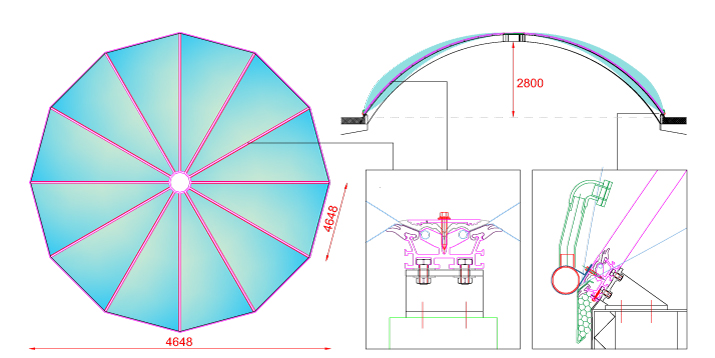

Engineering ETFE roof

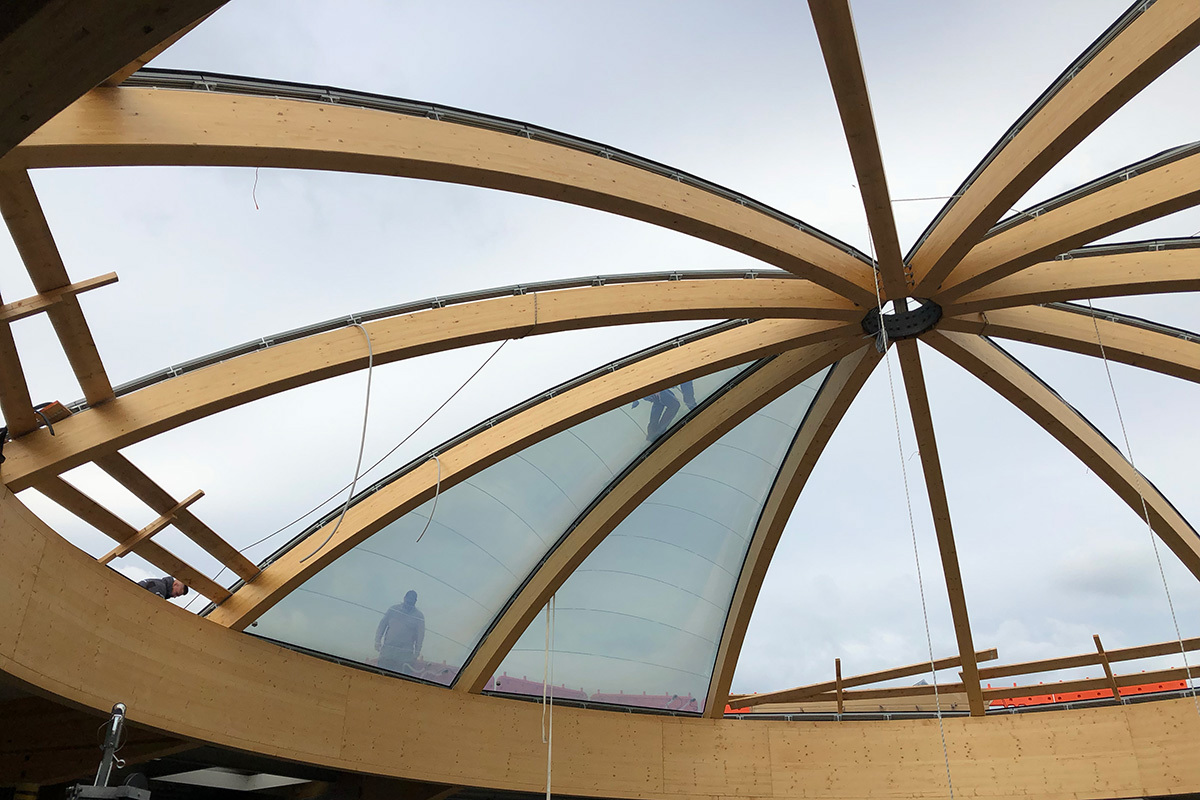

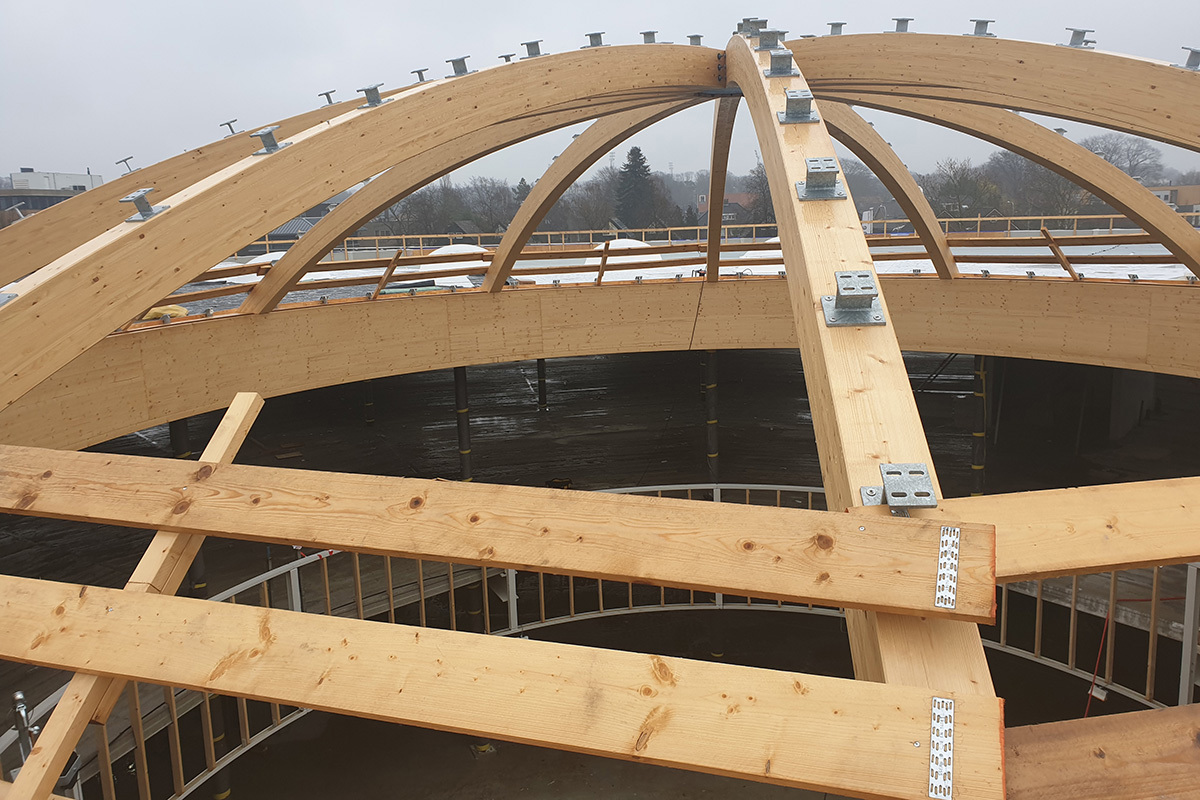

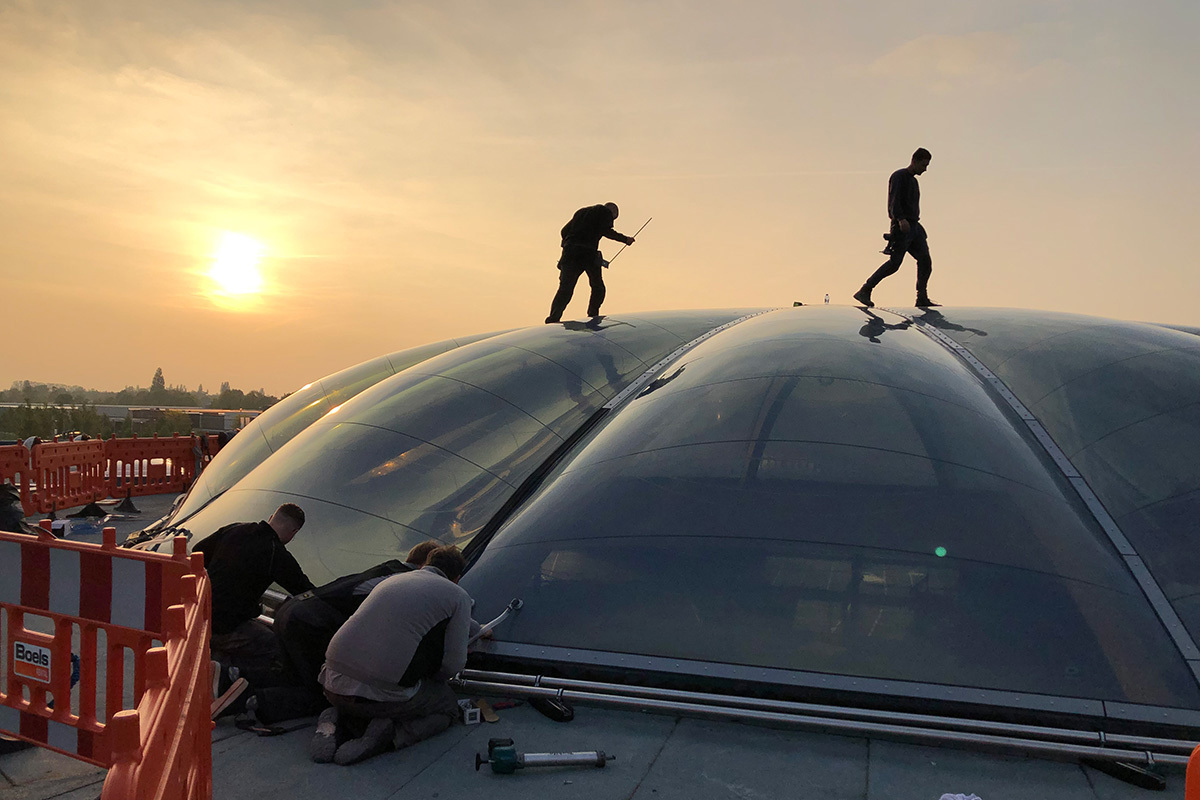

Installation ETFE air cushion roof
Location
Gildenbroederslaan 3, 7005 BM Doetinchem
