ETFE canopy bus station Tilburg
Contact form
+31 (0)316-250830

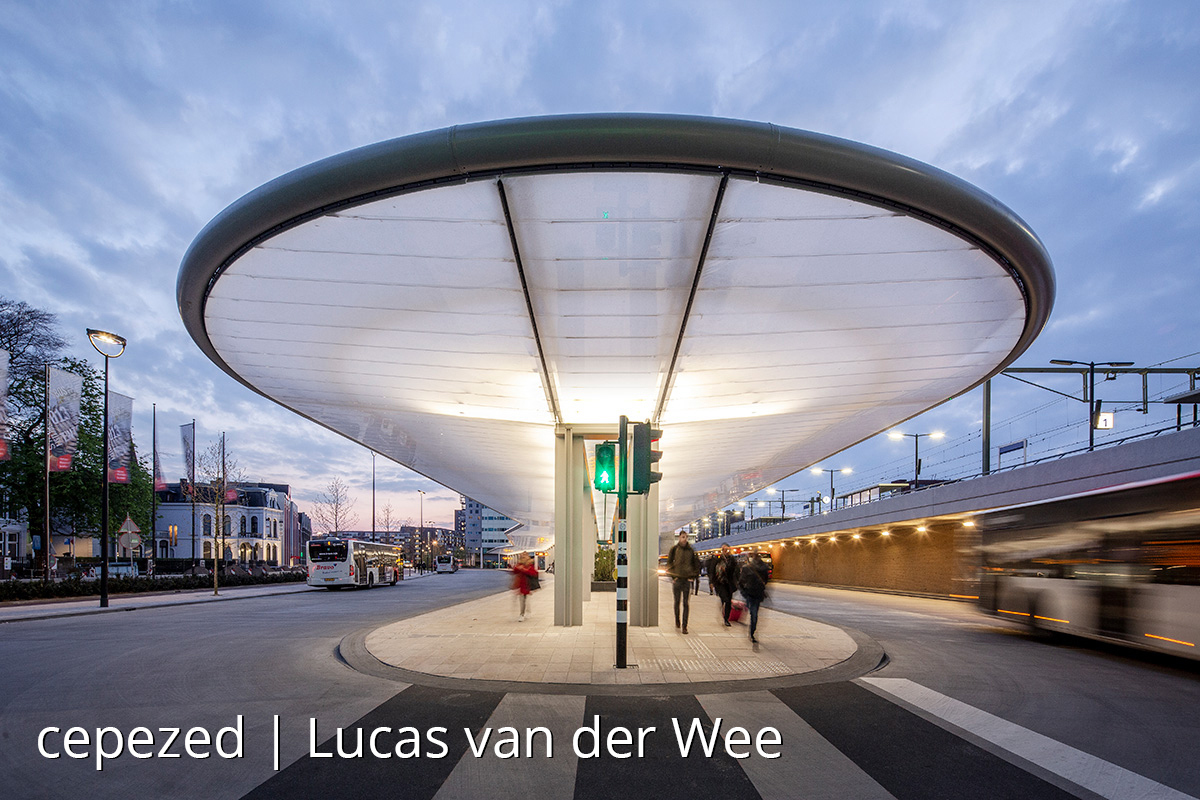

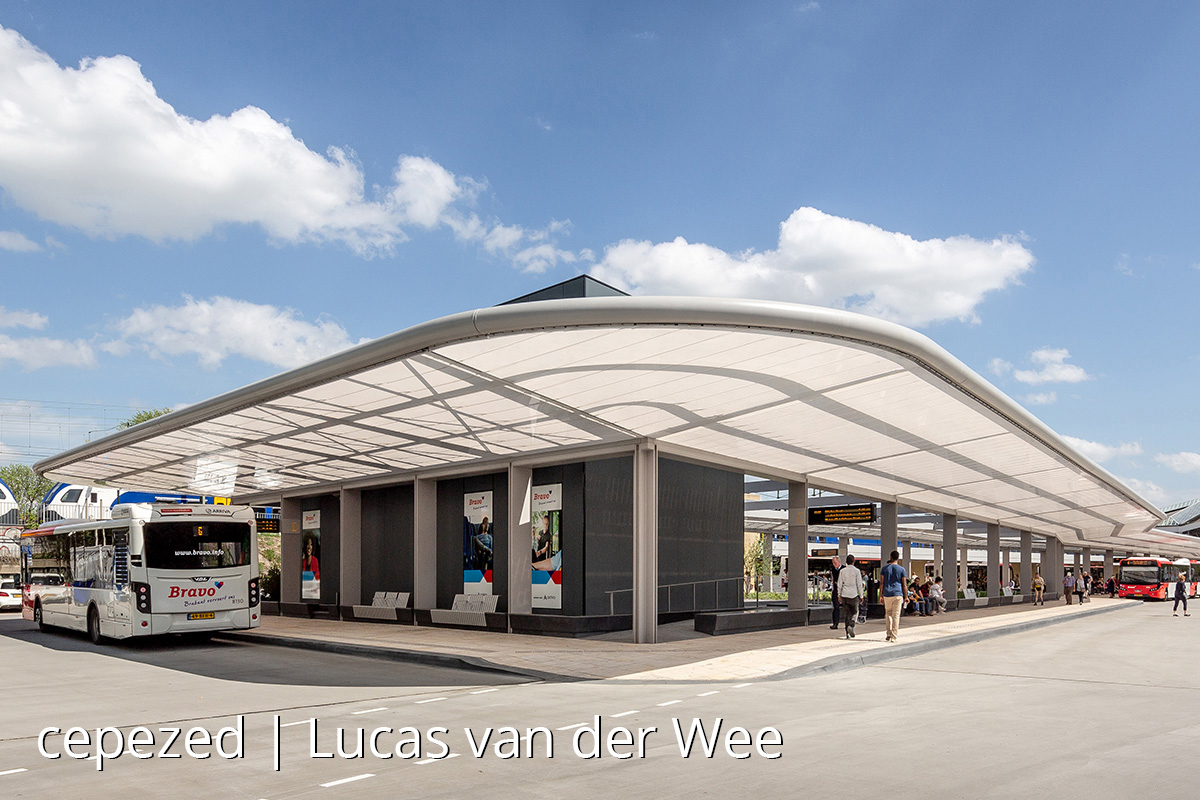

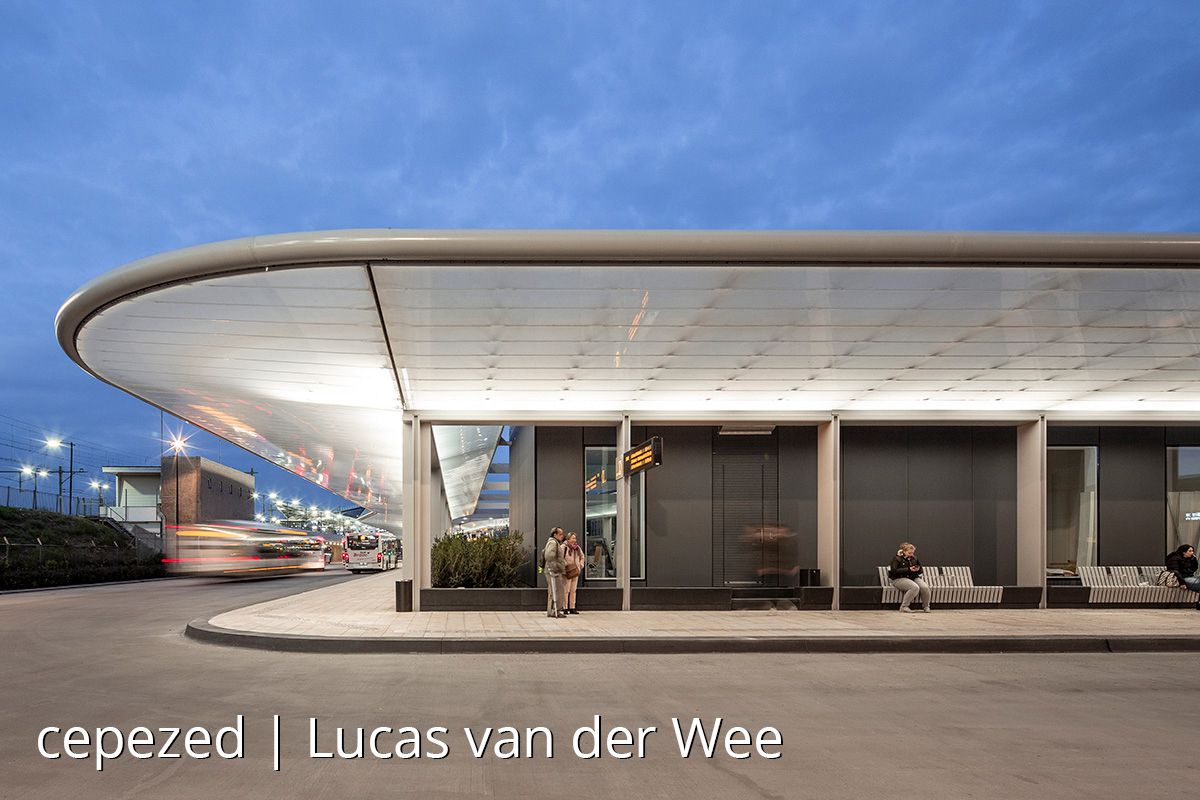

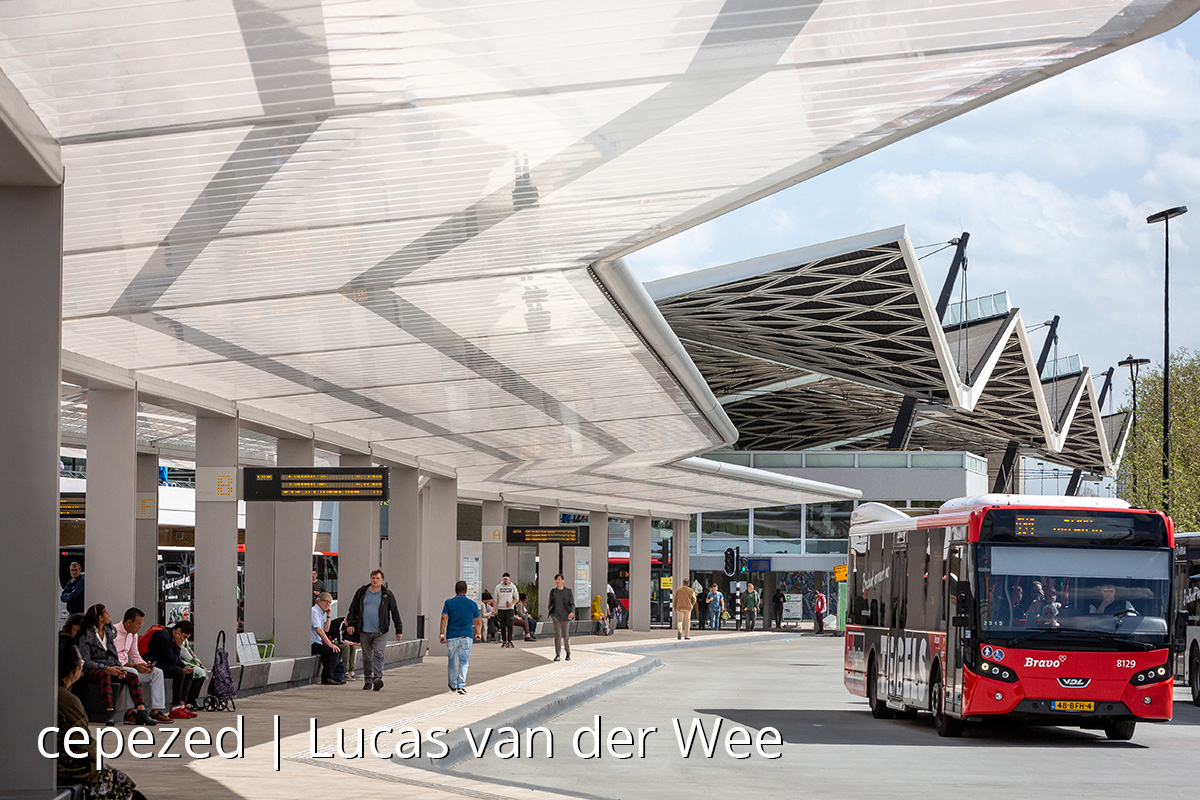

Buitink TechnologyBuitink Technology engineered, produced and installed an ETFE foil roof for the new bus station "Spoorlaan" in Tilburg (Holland).
A single layer tensed ETFE foil was chosen due to its self cleaning properties, durability, transparency, light diffusity and its extreme light weight.
Stainless Steel cables
To resist wind force and potential snow load the ETFE membranes are equipped with Stainless Steel cables, inserted in pockets around the ETFE membranes.
The total surface area of the ETFE membranes is about 2400 m2.
Project data canopy
| Material: | ETFE foil, white |
| Surface area: |
About 2400 m2 |
| Client: | BAM Infra Regio Civiel (Gouda) |
| Architect: | Cepezed |
| Engineering: | Tentech |
| ETFE membranes: |
Buitink Technology |
| Year of installation: | 2019 |

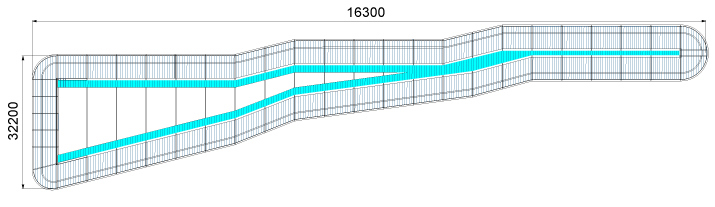

Top view bus canopy

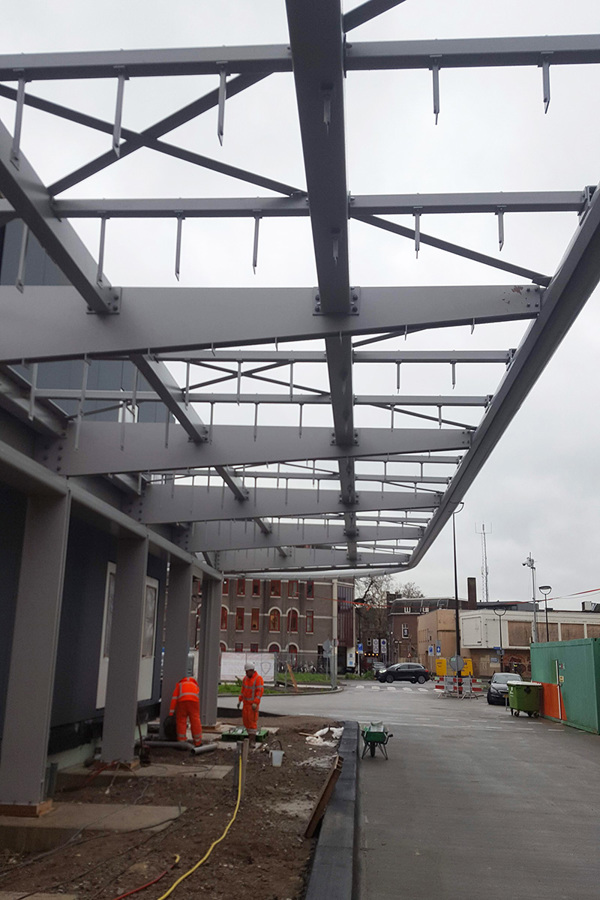

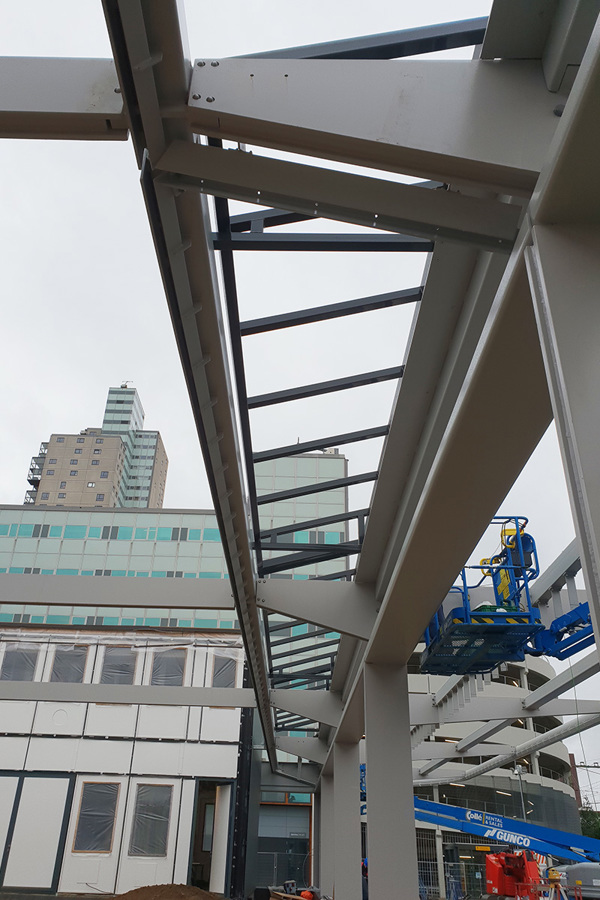

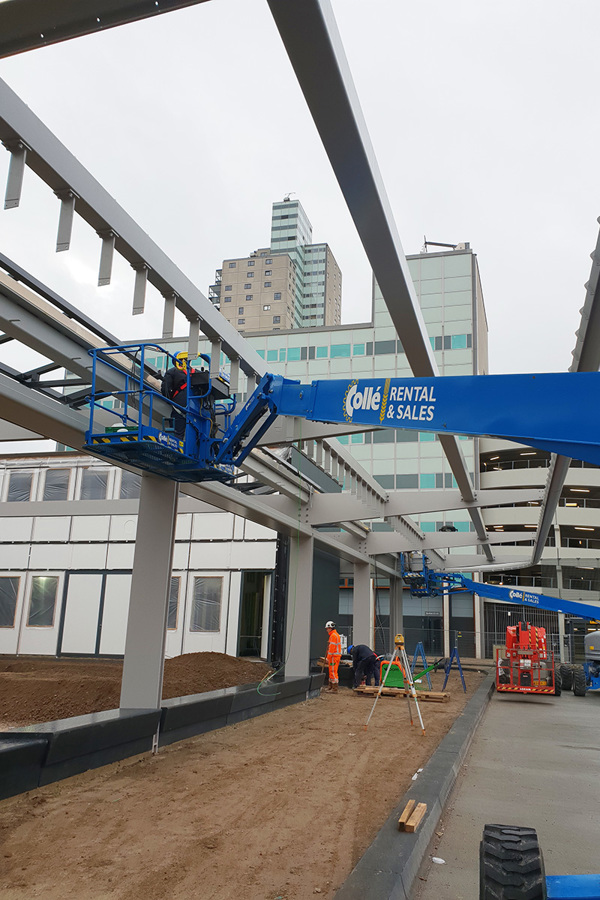

Pictures of installation
Location
Bus station Tilburg, Spoorlaan, Tilburg
