Air cushion roof public square Bisonspoor
Contact form
+31 (0)316-250830
Buitink TechnologyBuitink Technology realized an air inflated ETFE cushion roof in the centre part of a public square in shopping centre Bisonspoor in Maarssen (the Netherlands).

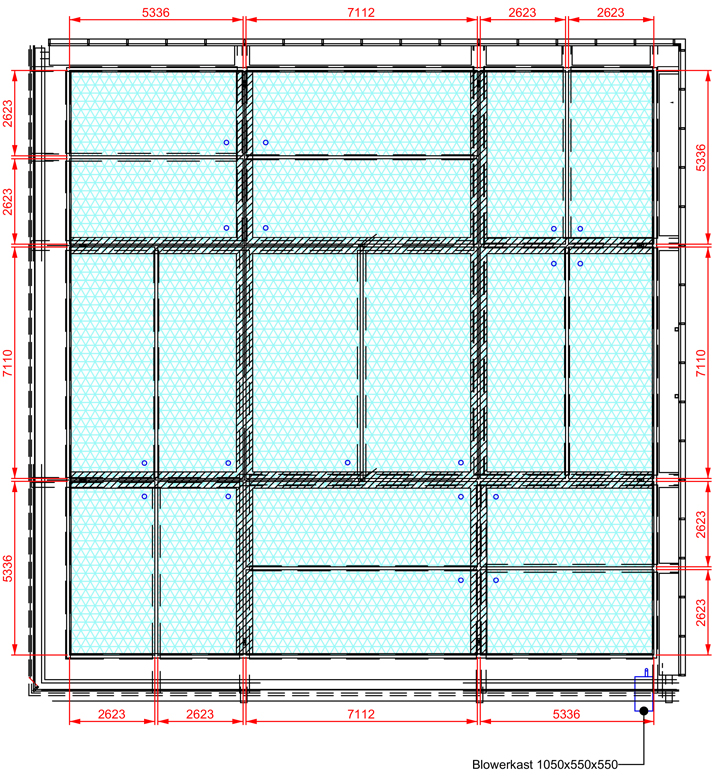

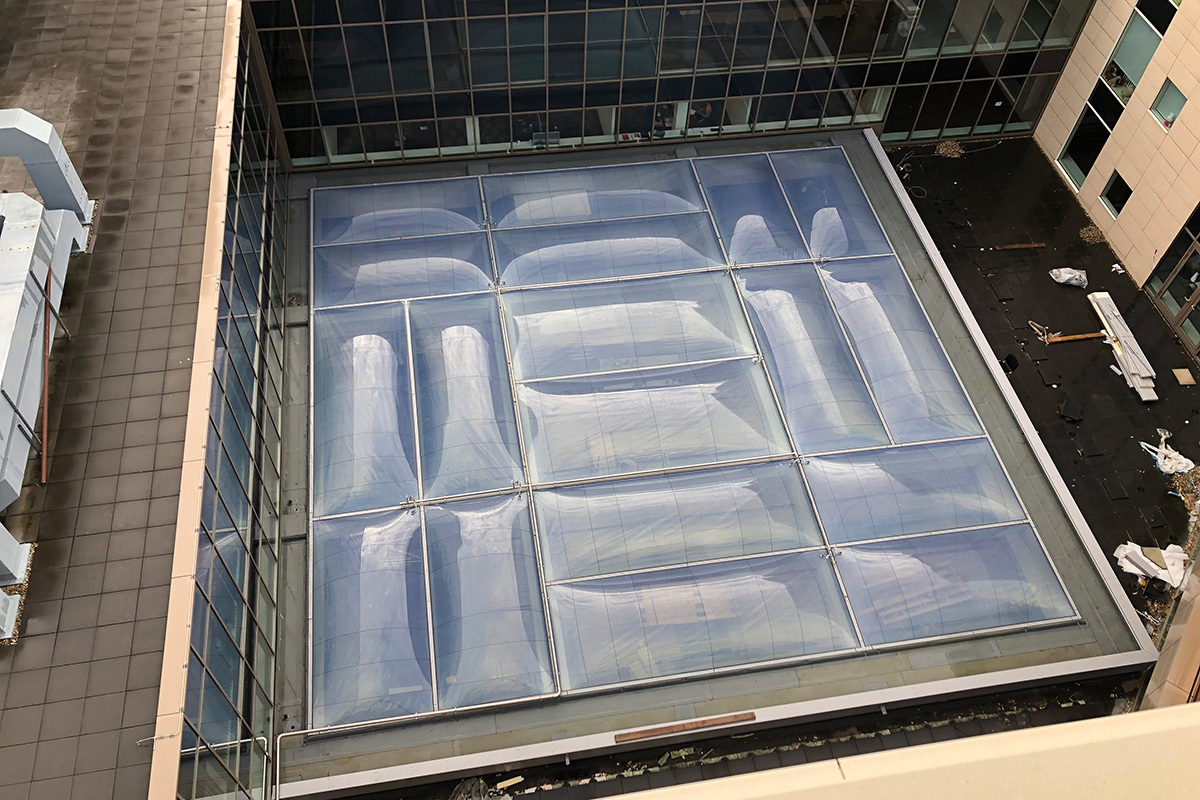

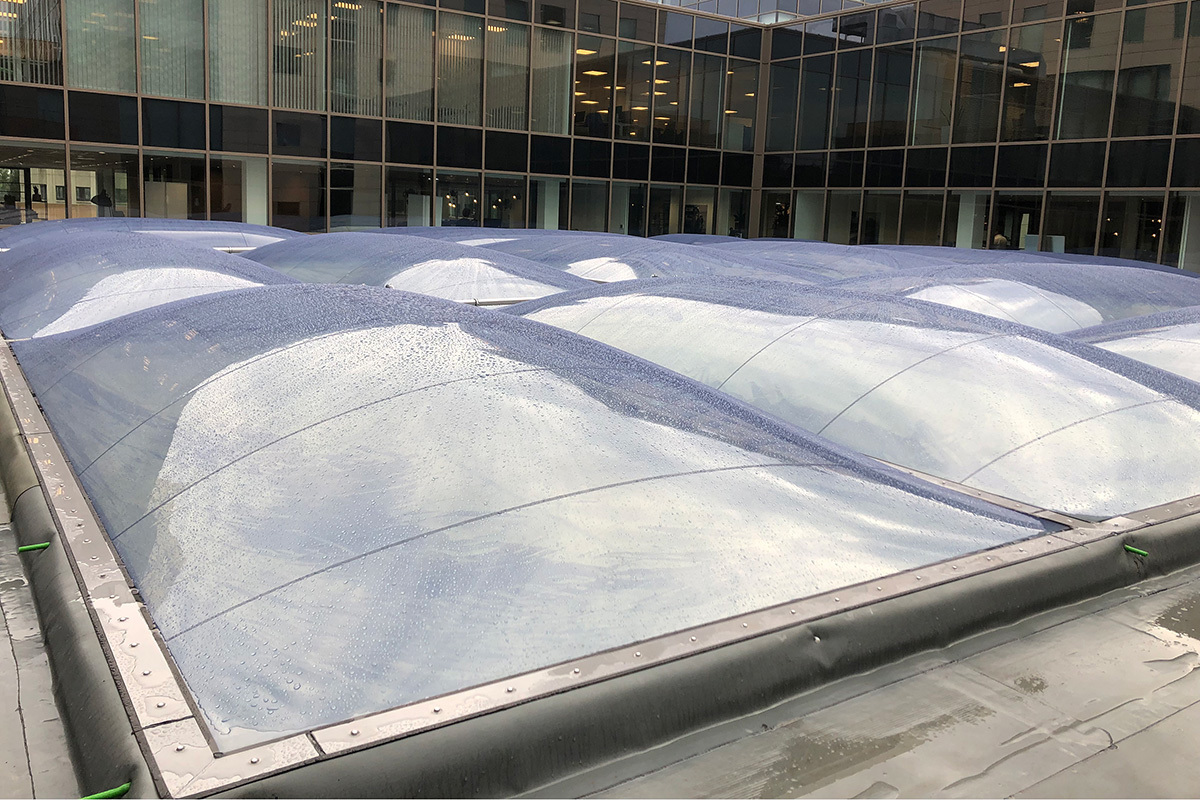

The air cushion roof consists of 18 ETFE cushions covering a total surface area of 315 m2.

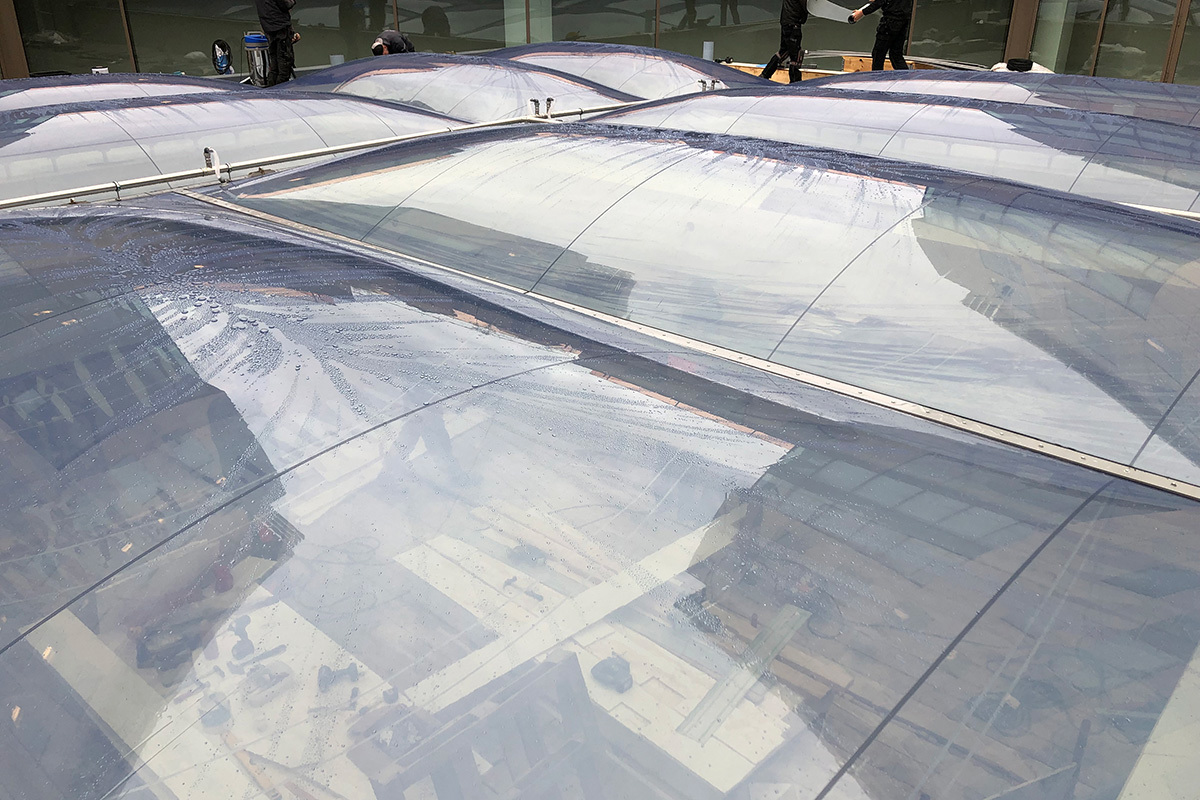

Heat reflecting ETF roof

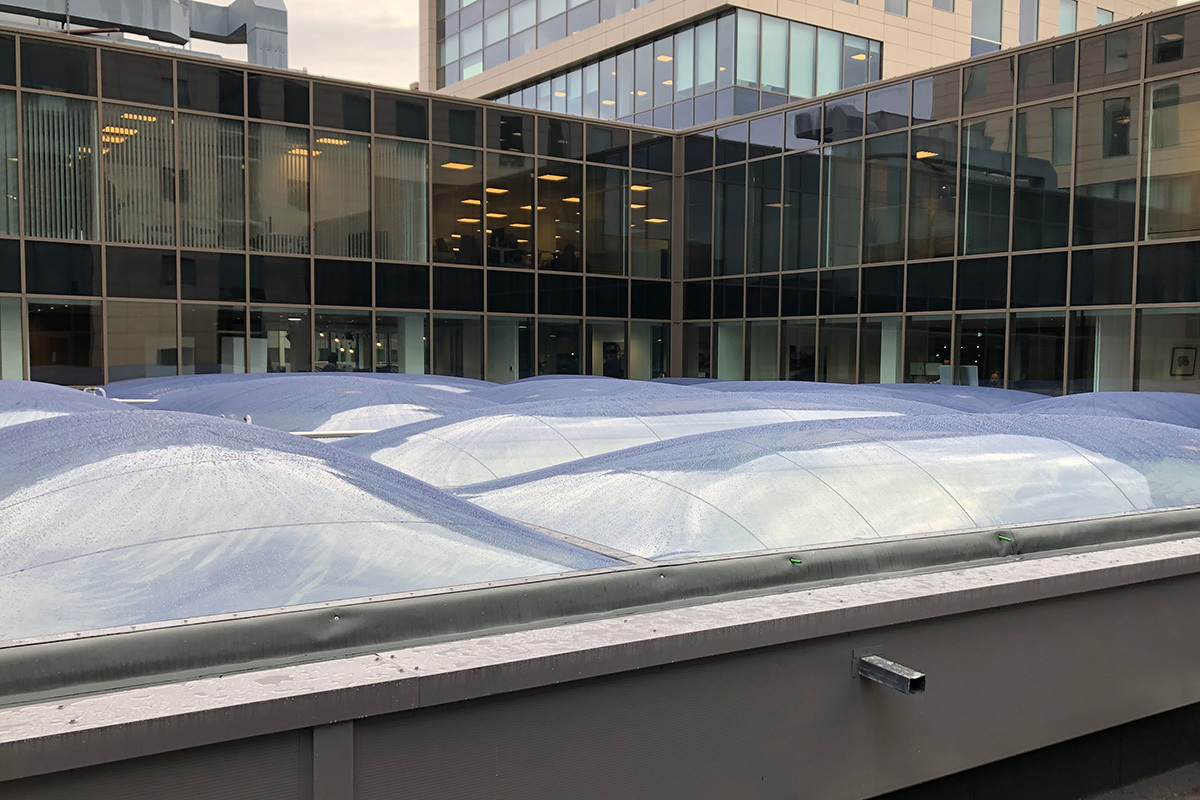

The roof consists of 3 layers of ETFE foil (2 air chambers. The outside layer is coated with a heat reflecting so called "infra red block". The infra red block foil still is very transparent for light, but blocks effectively heat from sun-radiation.

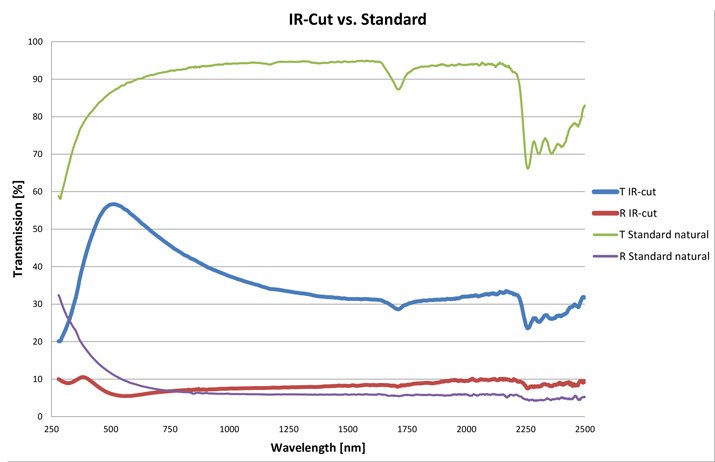

In below graph a comparison of the transmission is shown between a standard ETFE foil (''T Standard natural'') and an IR block foil (''T IR-cut'').
|
|
3 layer ETFE clear |
1 layer IR-cut / 2 layer ETFE clear |
| Direct energy transmission: | 0,74 | 0,36 |
| Radiation reflectance: | 0,22 | 0,11 |
| Light transmission grade: | 0,71 | 0,44 |
| Light reflection grade: | 0,24 | 0,11 |
| UV- transmission grade: | 0,45 | 0,19 |
| Solar heat gain coeffincient: | 0,75 | 0,41 |

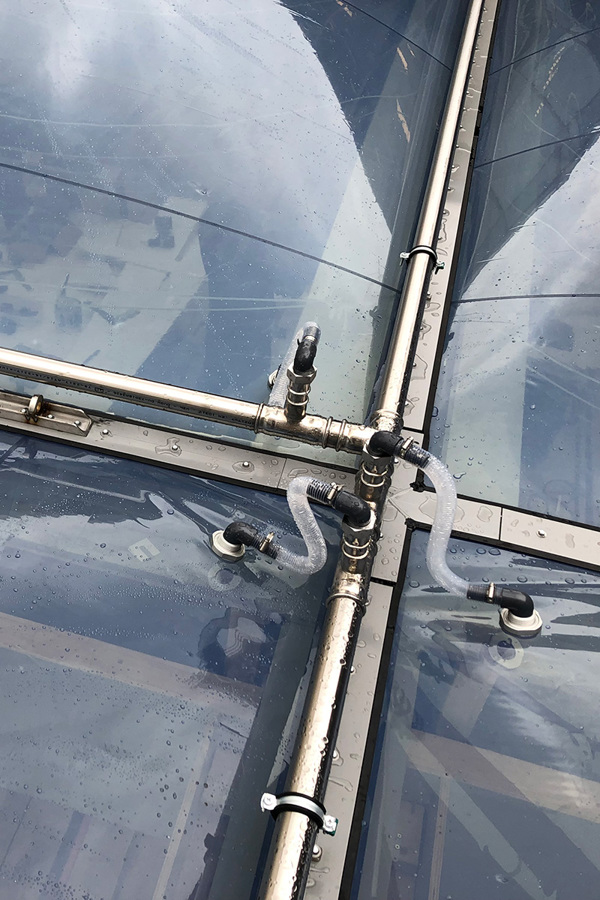

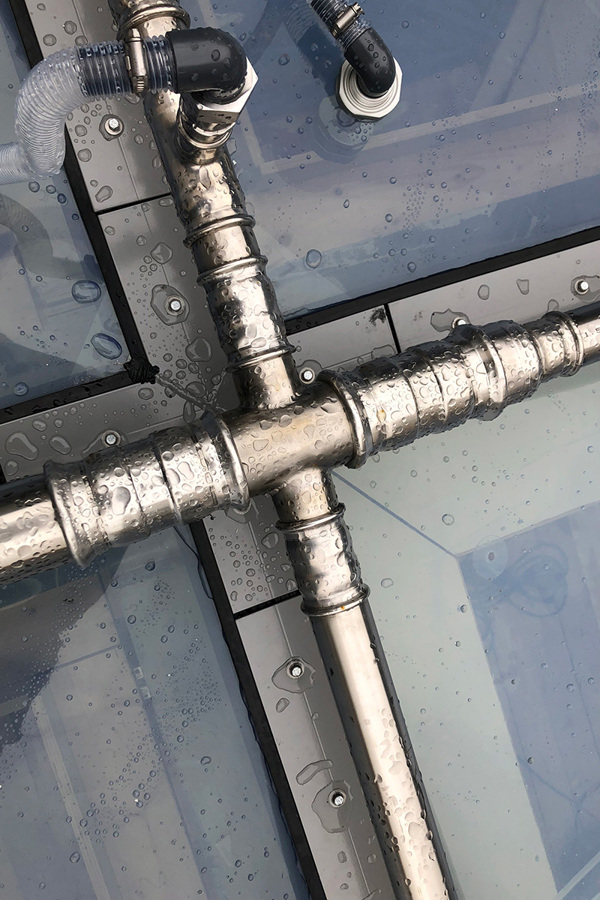

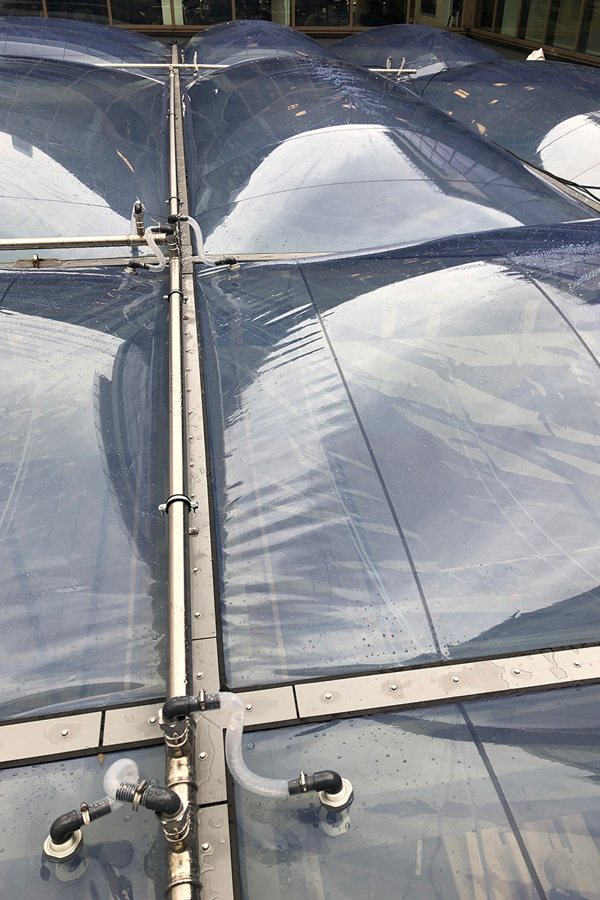

Air equipment and SS tubing is delivered and installed by Buitink technology as well.
Project data air cushion roof
| Sizing: | 315 m2, made of 18 ETFE cushions |
| Material: |
ETFE foil, transparent with infrared block |
| Client | Wintertrust |
| Architect: | Op ten Noort Blijdenstein |
| Main contractor: | Bouwbedrijf Pennings BV |
| ETFE air cushion roof: |
Buitink Technology |
| Year of construction: |
2019 |
Location
Bisonspoor 2017, 3605 LB Maarssen (the Netherlands)
