Pancake lifting bags for lifting loads

For lifting situations where you have (very) little space, Buitink Technology developed a lightweight, extremely flat and flexible solution: The Pancake Liftbag.

Our lifting bags are very strong and durable. The pneumatic lifting bags are filled with air pressure. This allows easily lifting of heavy loads.

Innovative lifting solutions for confined spaces
Pancake Liftbag for tight lifting situations
Lifting technology with minimal space requirements

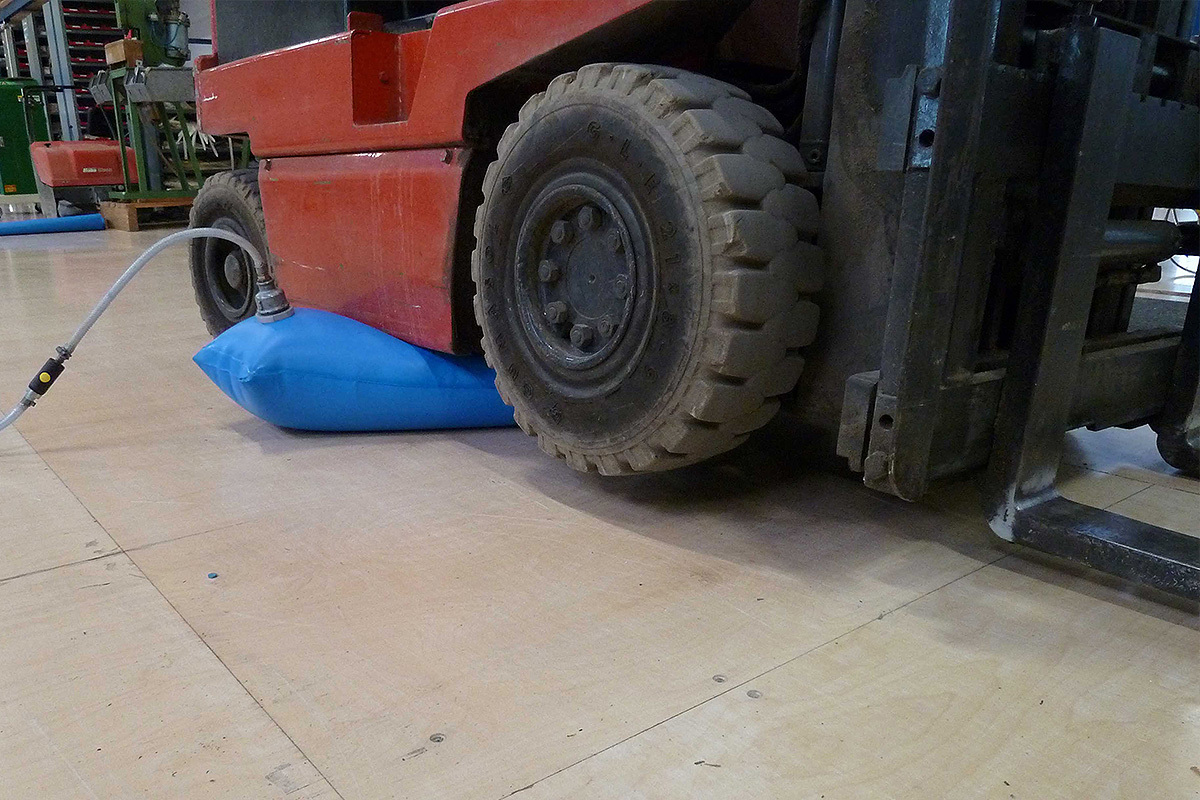

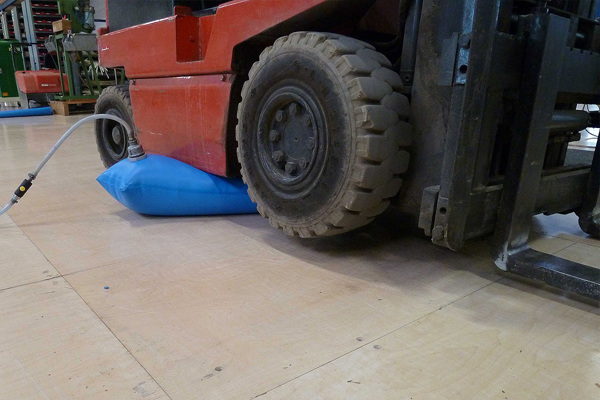

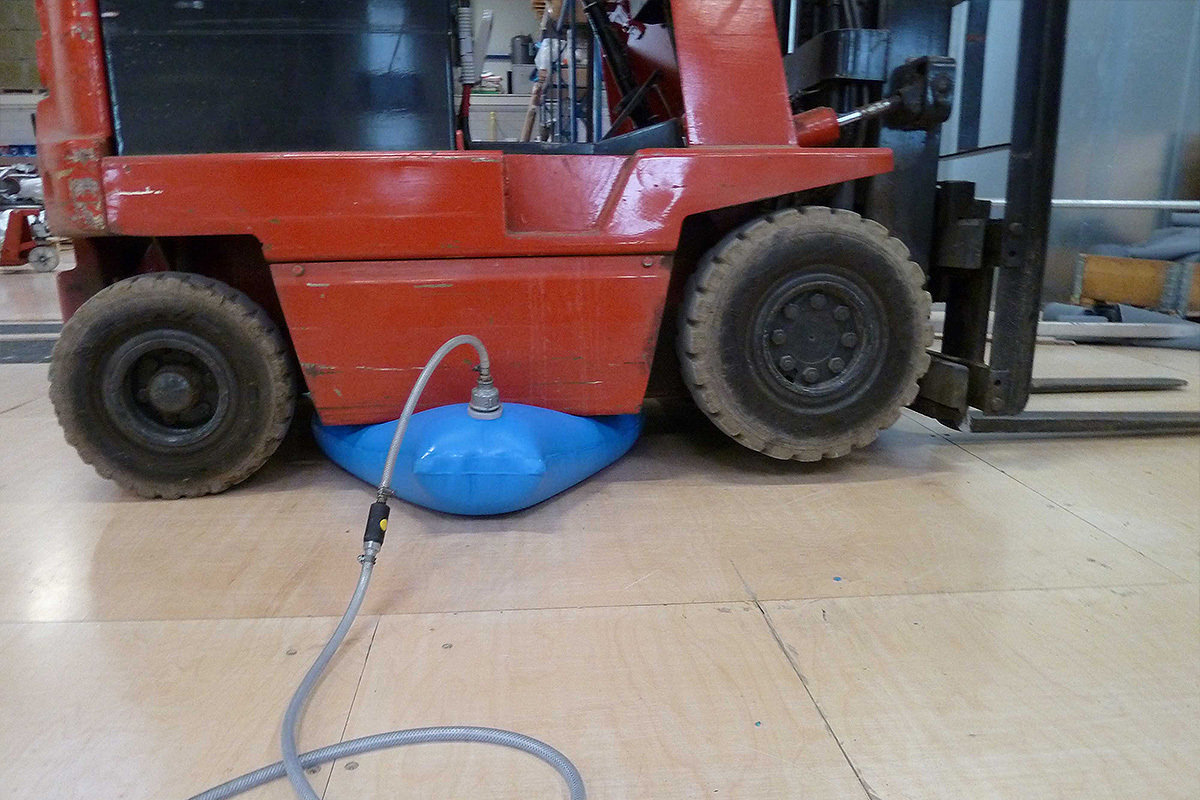

Lifting in confined spaces

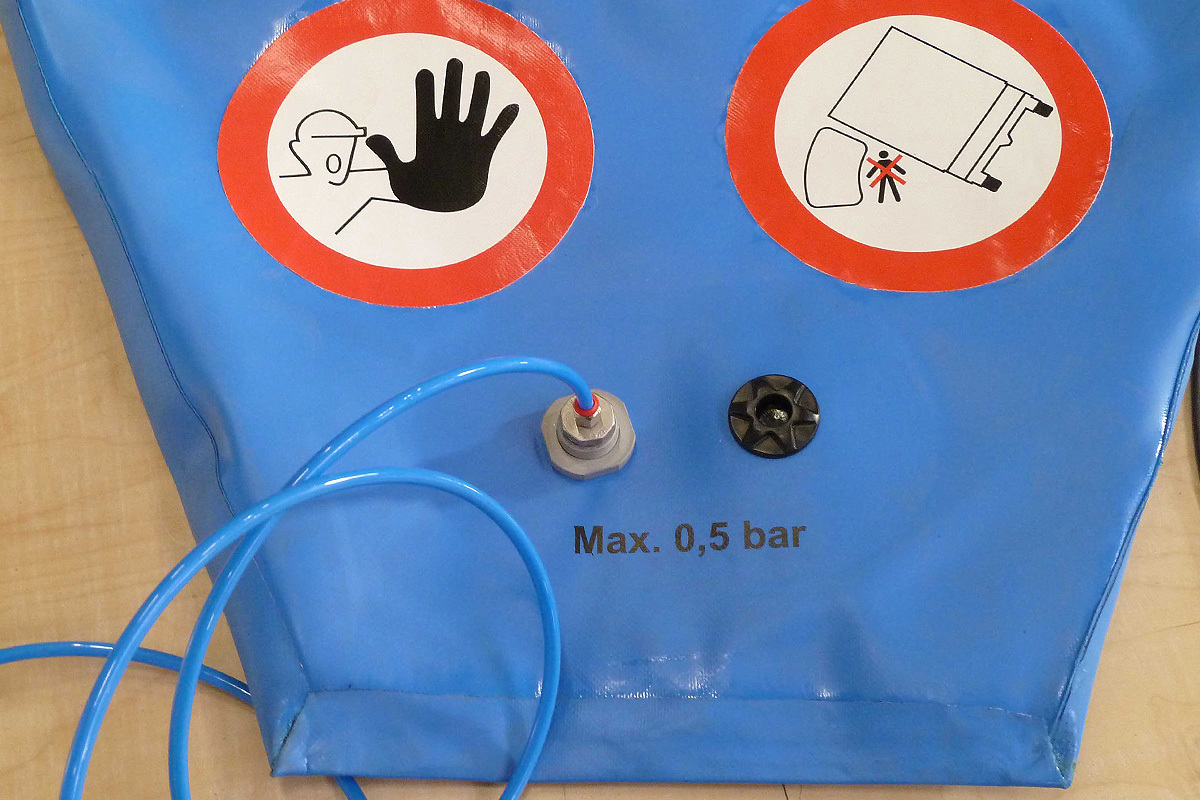

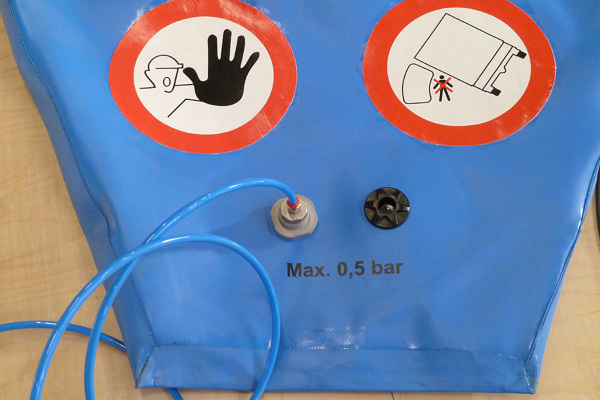

Pancake Liftbag6

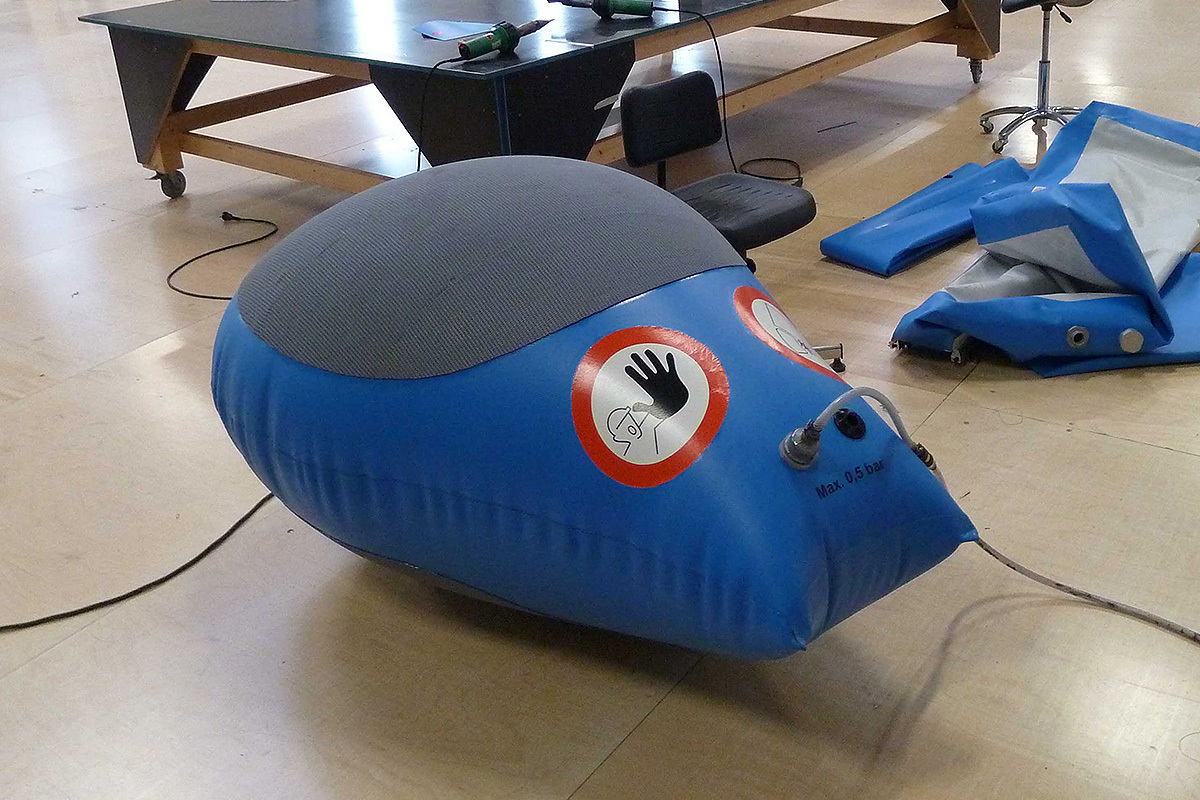

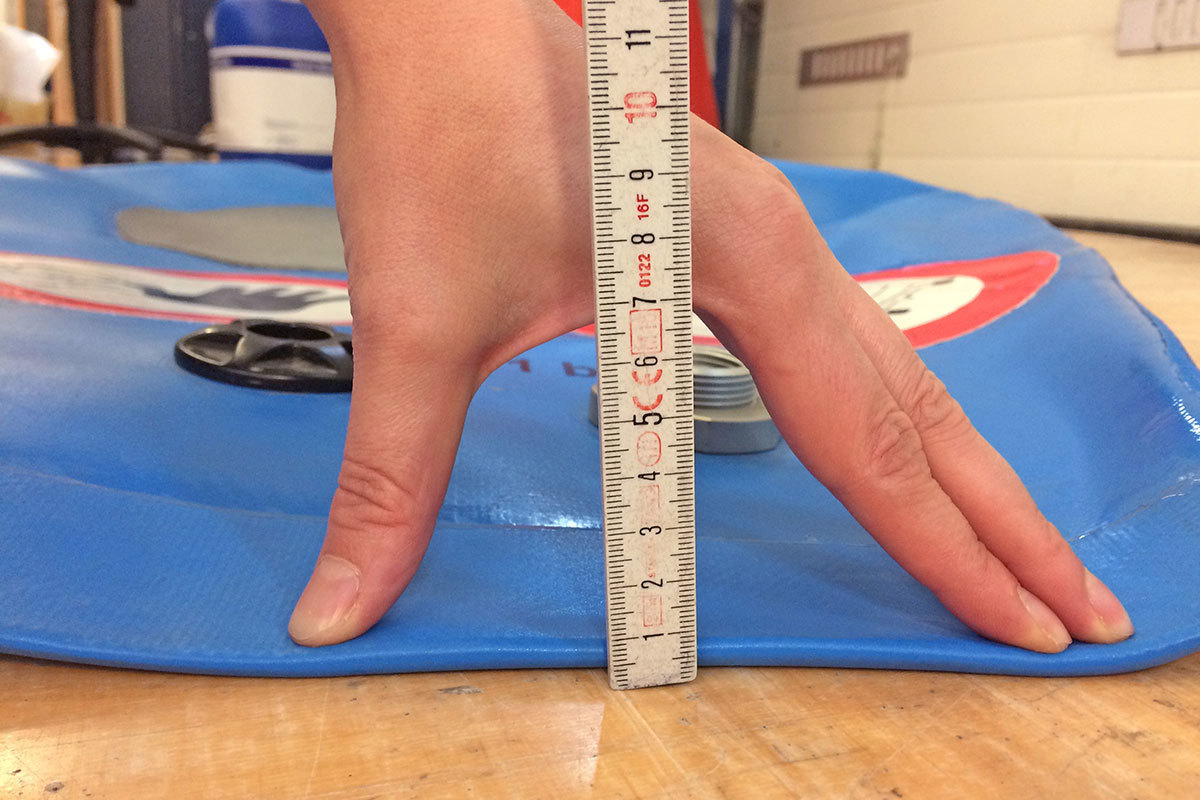

Superflat Lifting Bag

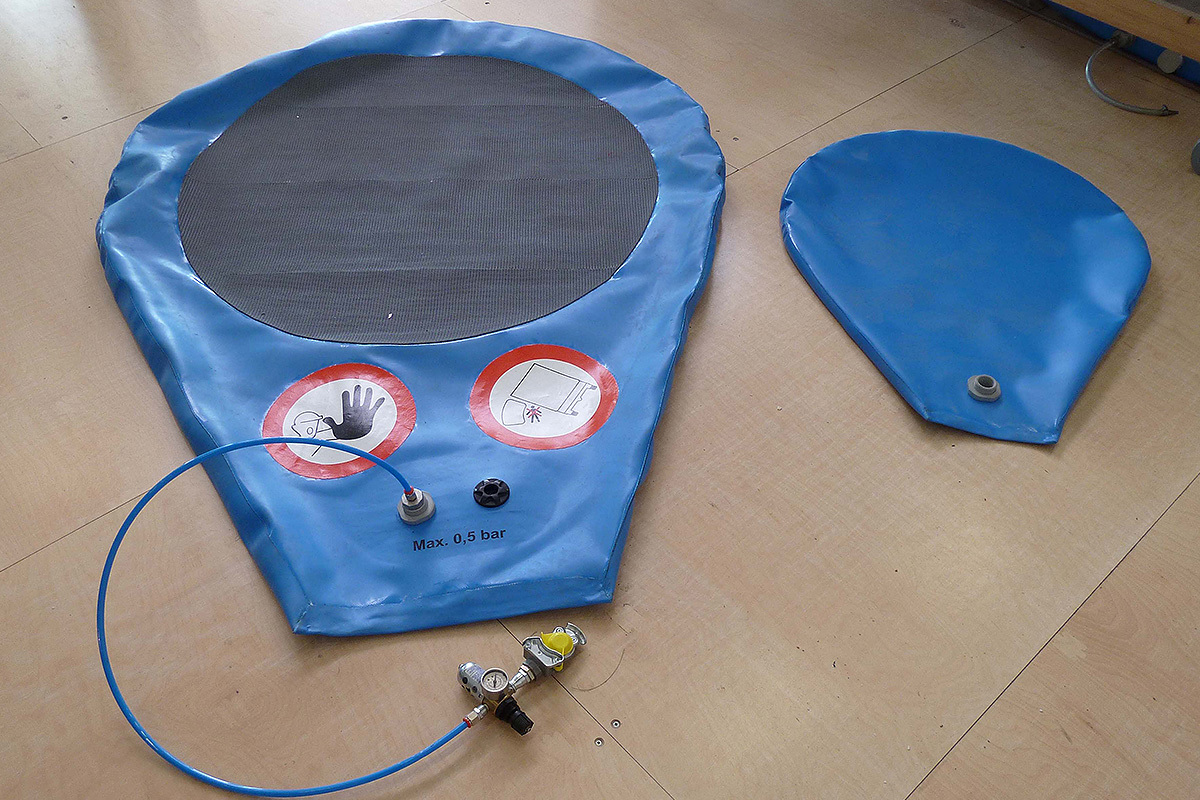

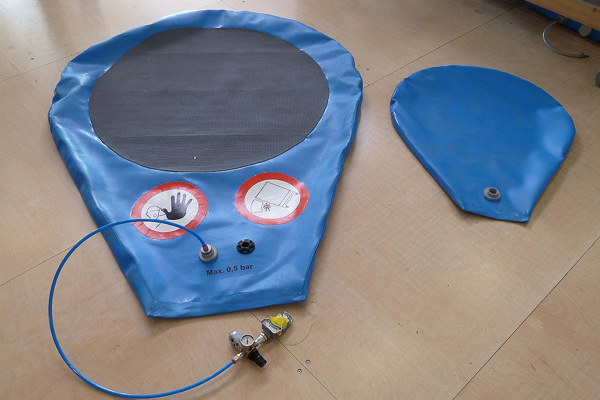

Dimensions pancakes

We offer the pancakes in two formats:

  • Pancake Large: 1094 x 1952 mm (weighs only 5.5 kg)
  • Pancake Small: 630 x 1346 mm

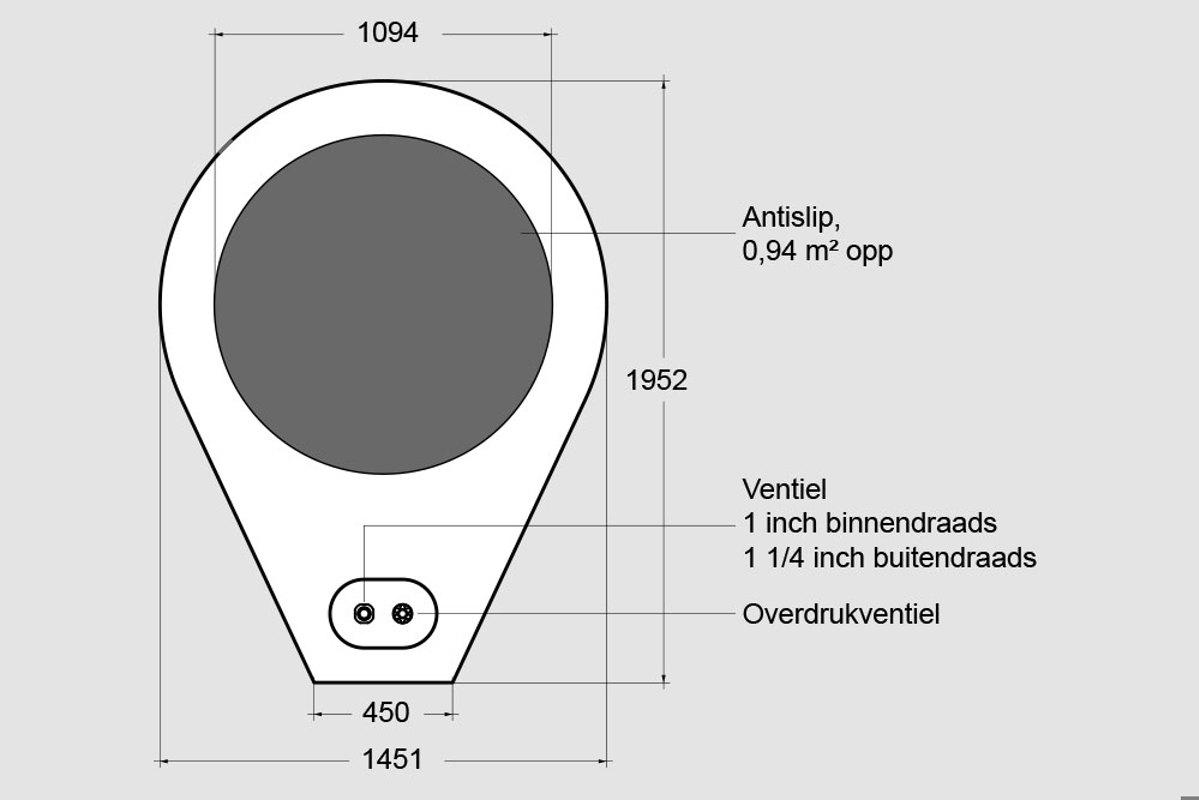

Maatvoering Large

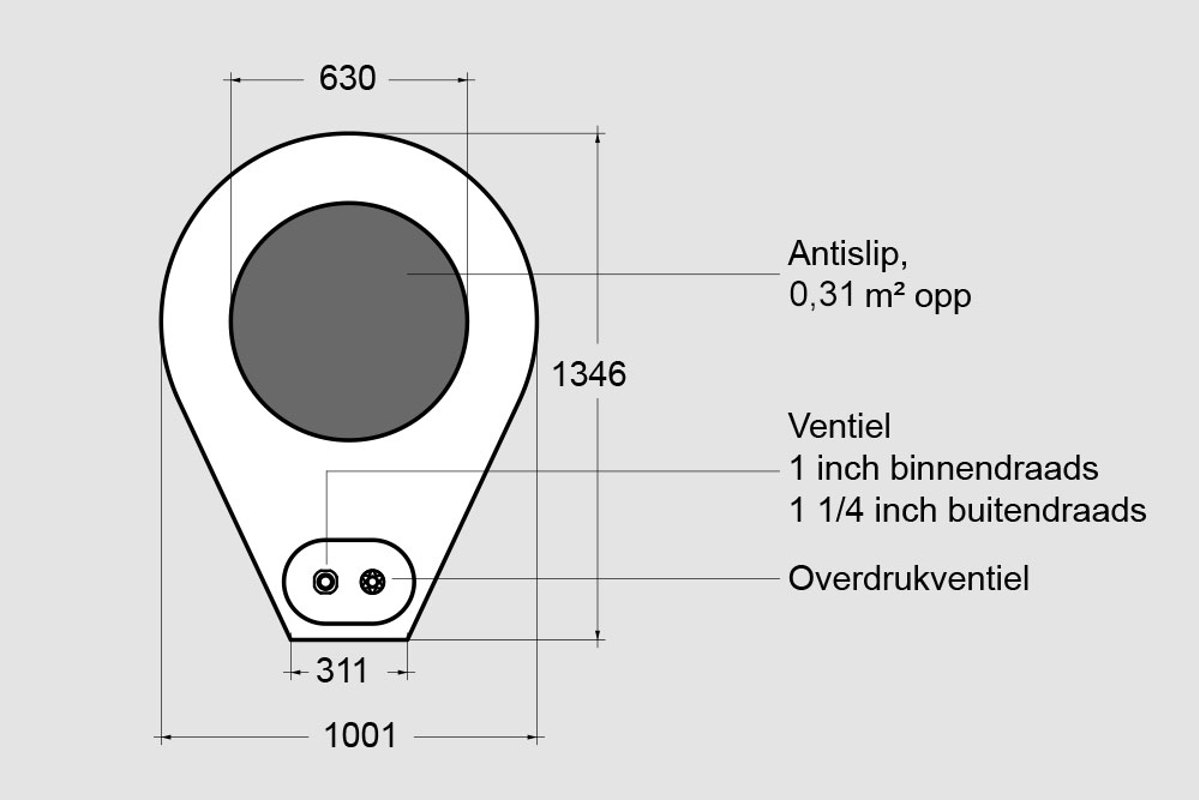

Maatvoering Small

Lift capacities

The two charts below show the lift capacity in relation to the lifting height of the two types of pancakes.

Liftvermogen pancake

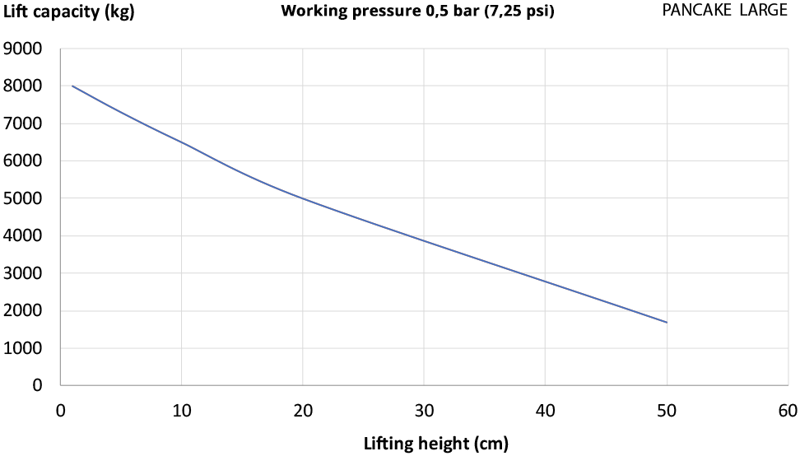

Chart 1. Lift capacity Pancake Large



Liftvermogen pancake

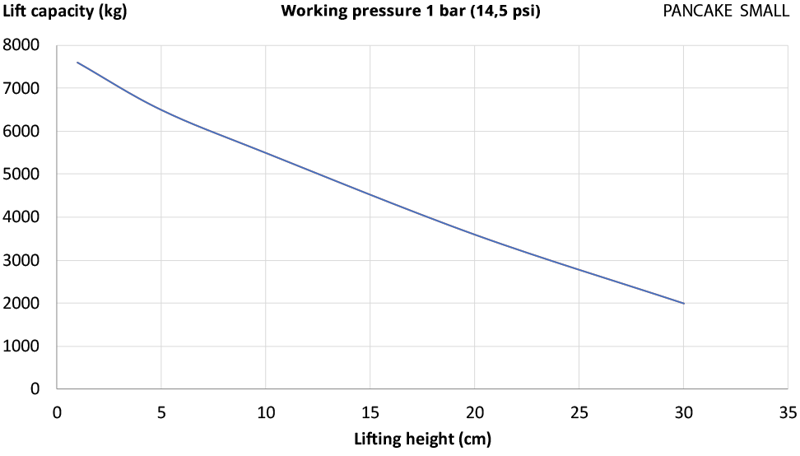

Chart 2. Lift capacity Pancake Small
