ETFE skylights Château Randan

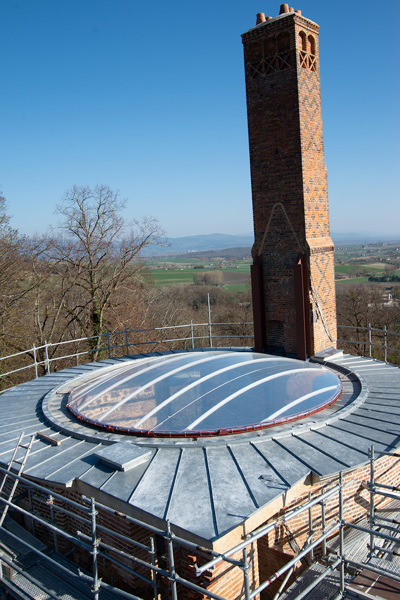

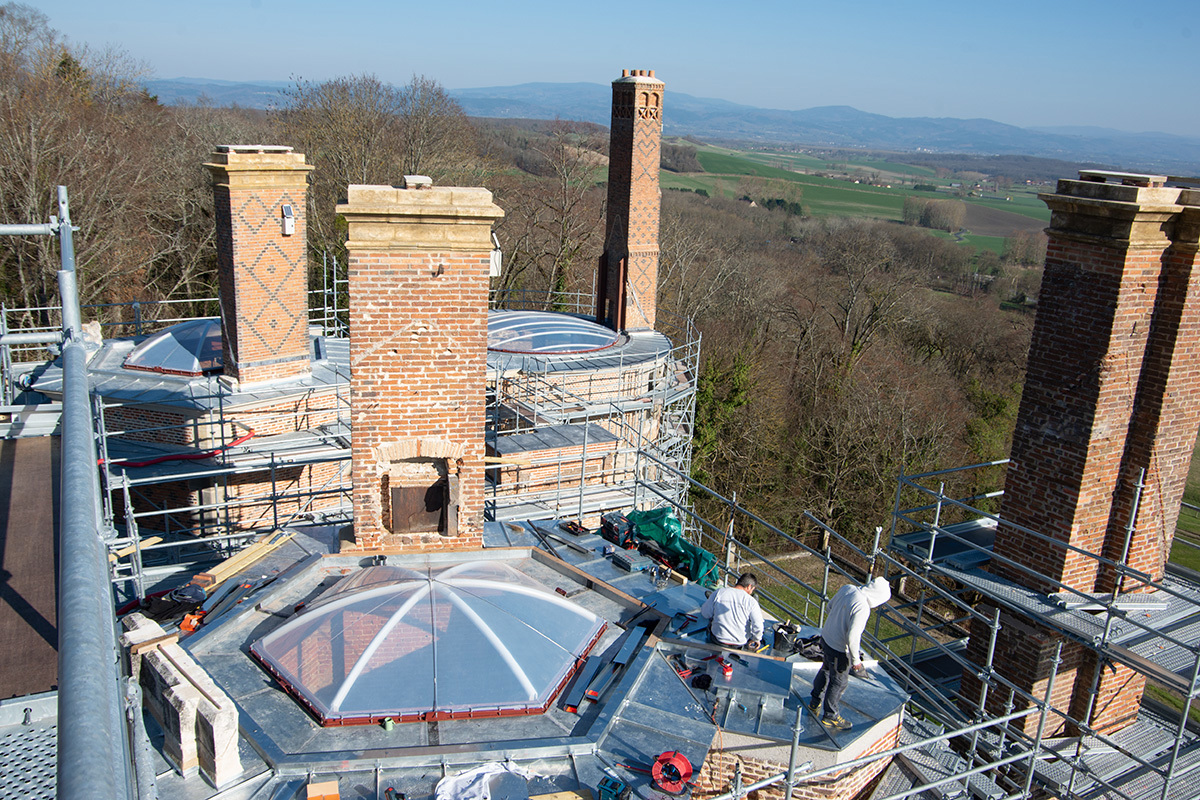

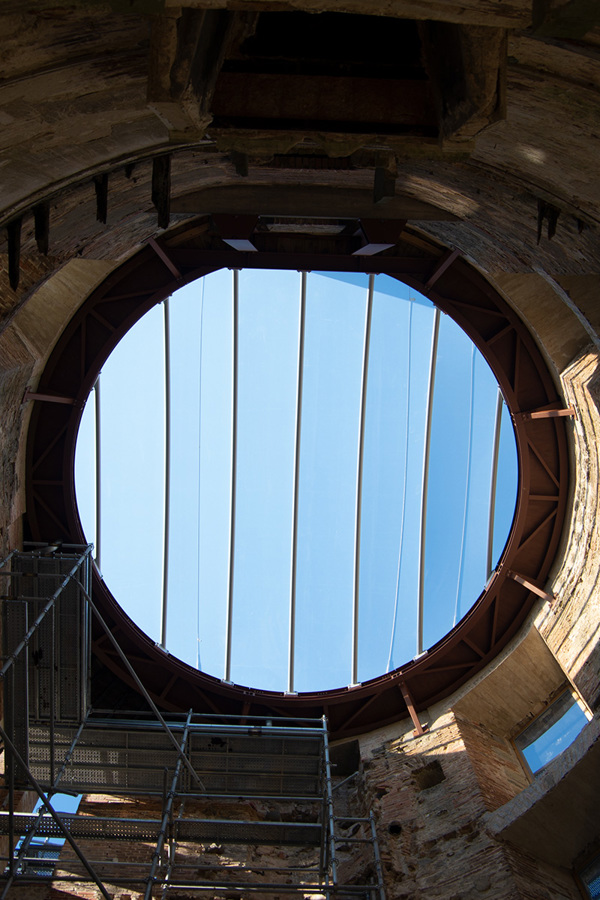

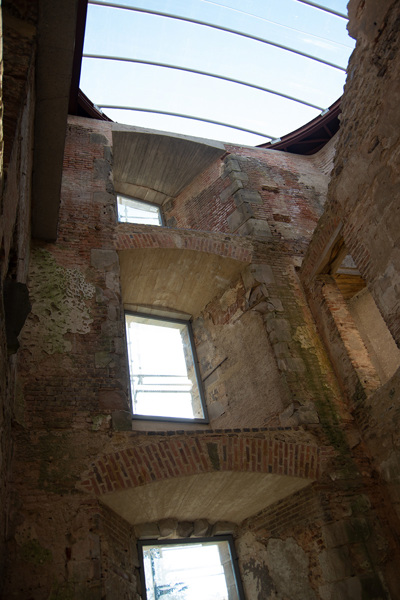

In cooperation with her French partner Highpoint Structures, Buitink Technology engineered, delivered and installed ETFE membranes for the skylights of the Château de Randan in department Puy-de-Dôme in France.

This project is part of the renovation of castle Randan to increase comfort and protection against rainfall.

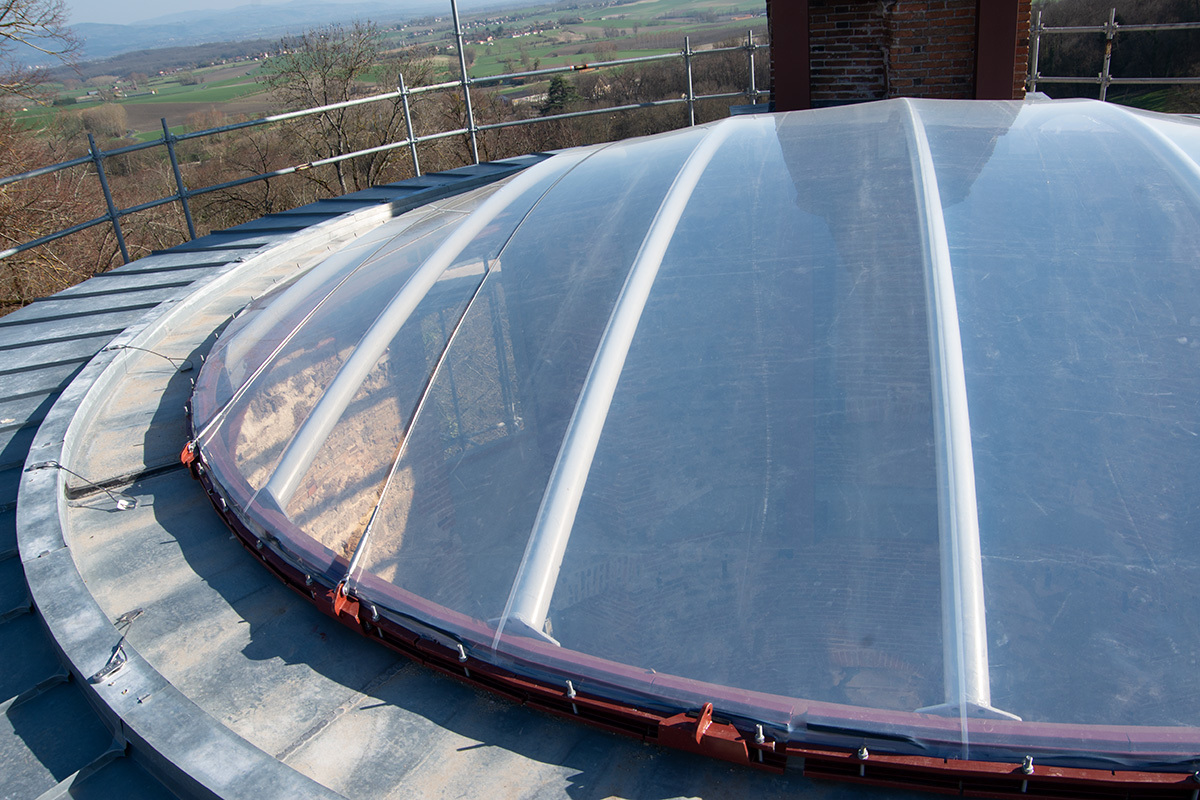

Single layer tensed ETFE foil

A single layer tensed ETFE foil was chosen due to its self cleaning properties, durability, high degree of transparency and its extreme light weight.

To deal with wind force Stainless Steel cables were foreseen around the membranes.

The total surface area of the ETFE membranes is about 450 m2.

Project data skylights

Material: ETFE foil, transparent
Surface area:
About 450 m2, 15 ETFE domes
Client: Conseil Régional d'Auvergne
Architect: Unanime, Paris
ETFE membranes:
Buitink Technology en Highpoint Structures
Year of installation: 2019

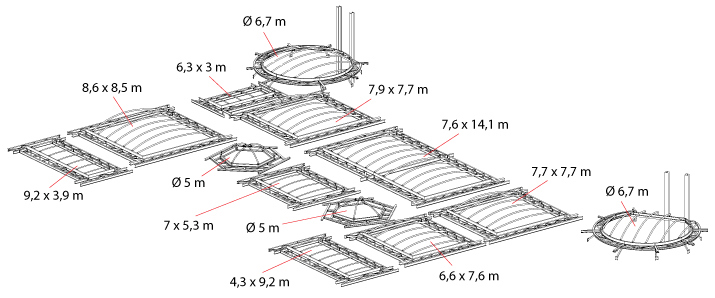

Measures of the roof

Maatvoering daken

Location

Rue Adélaïde d'Orléans, Randan, Frankrijk
