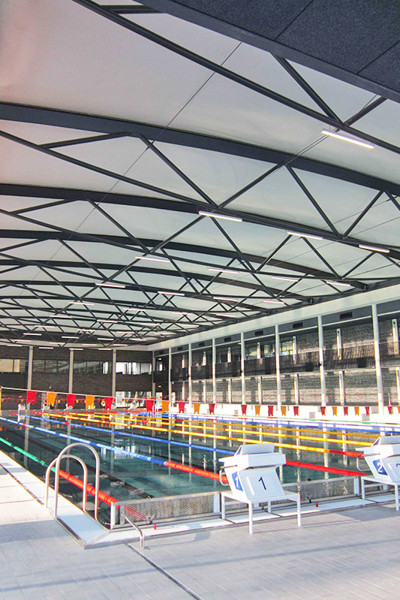

Buitink TechnologyBuitink Technology realized a removable and insulated air cushion roof for the new swimming pool ''De Krommerijn'' in Utrecht (The Netherlands).

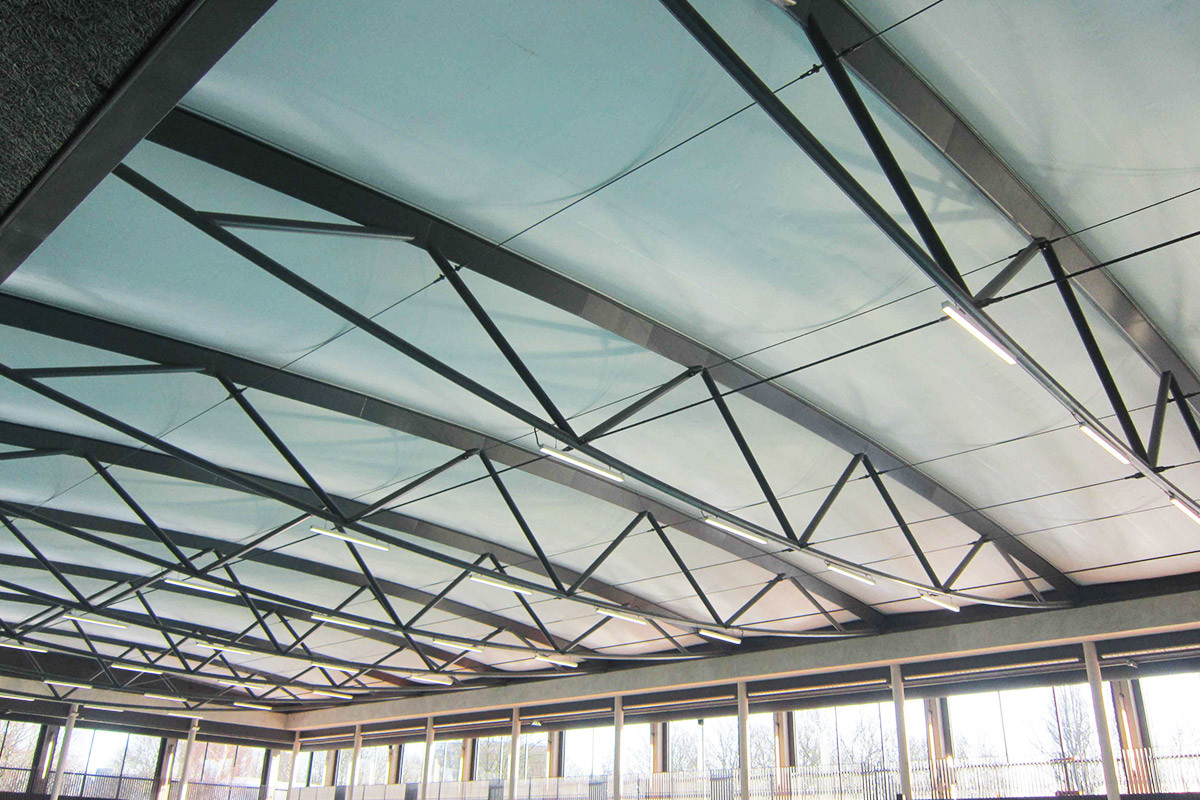

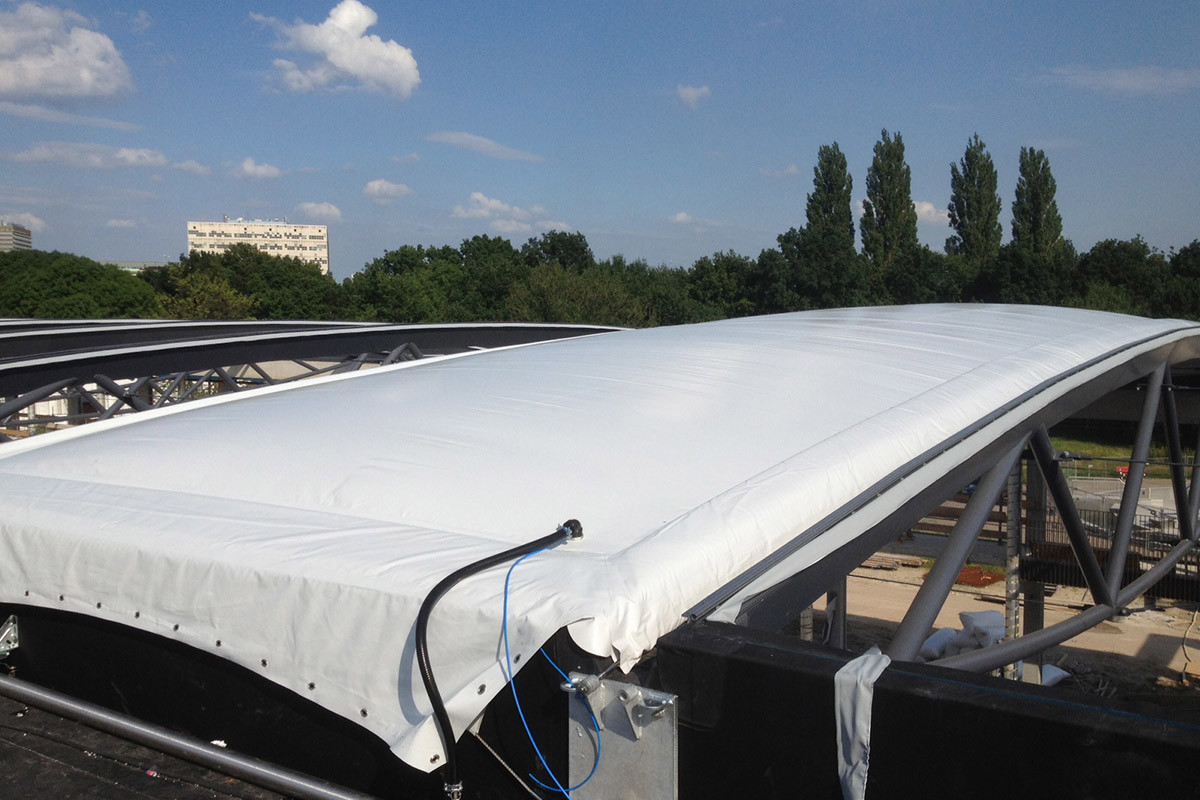

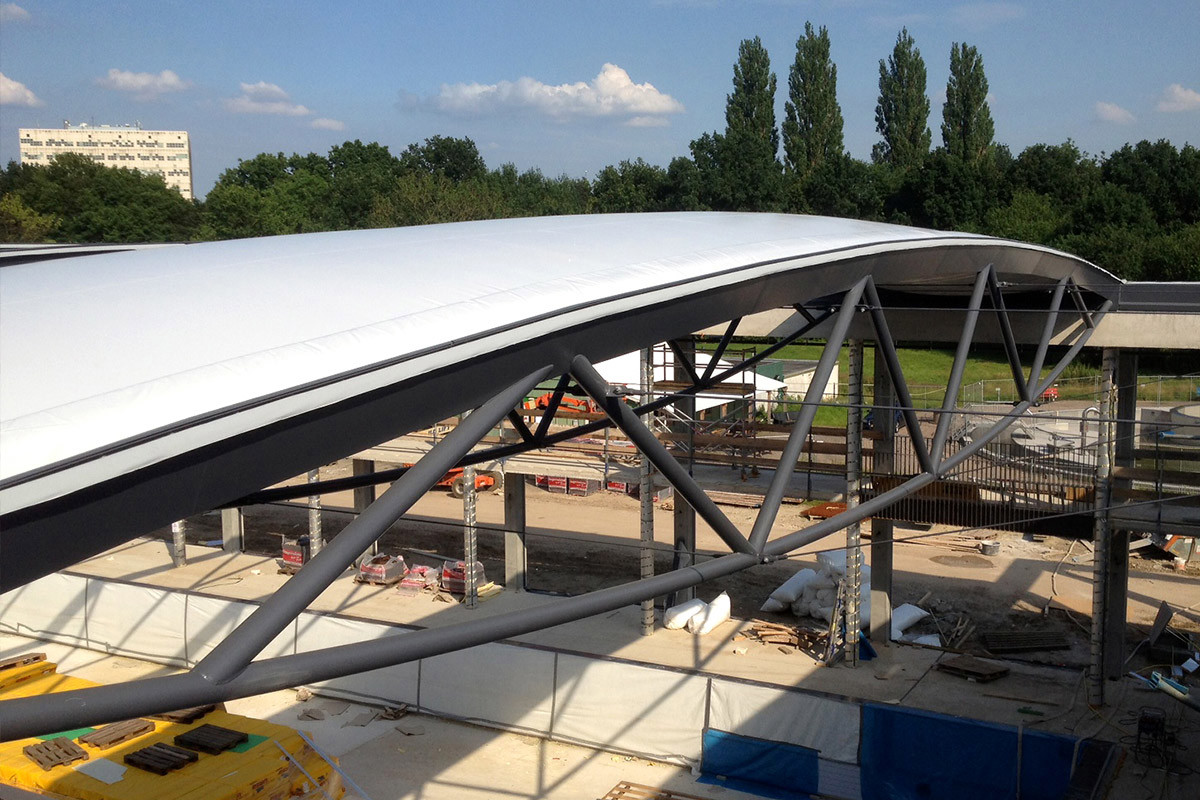

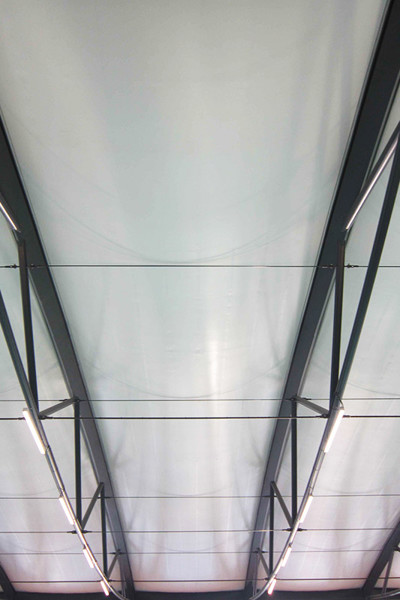

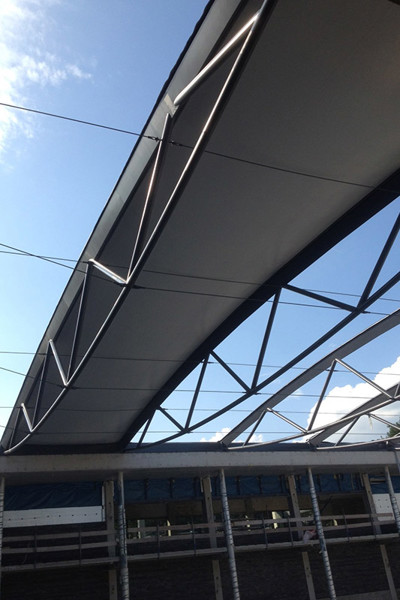

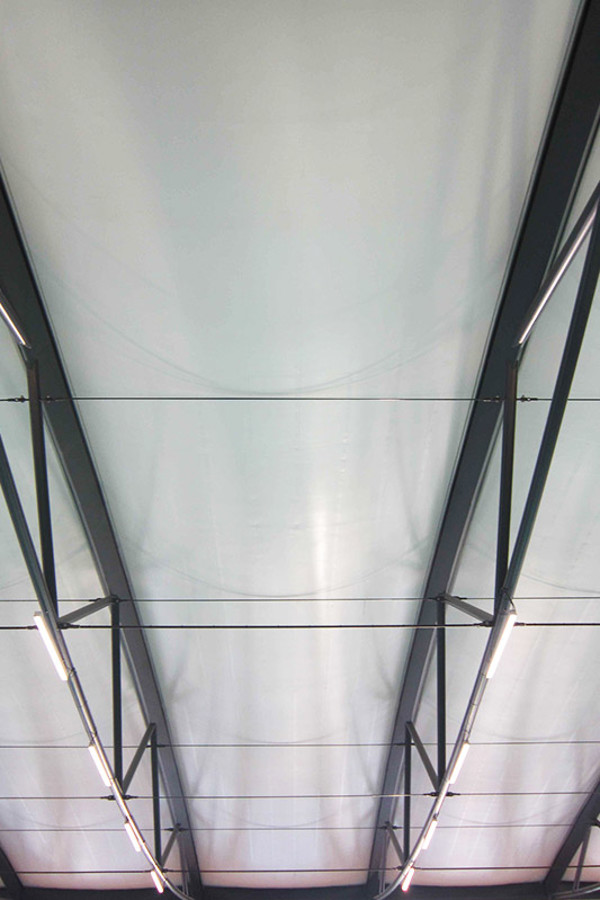

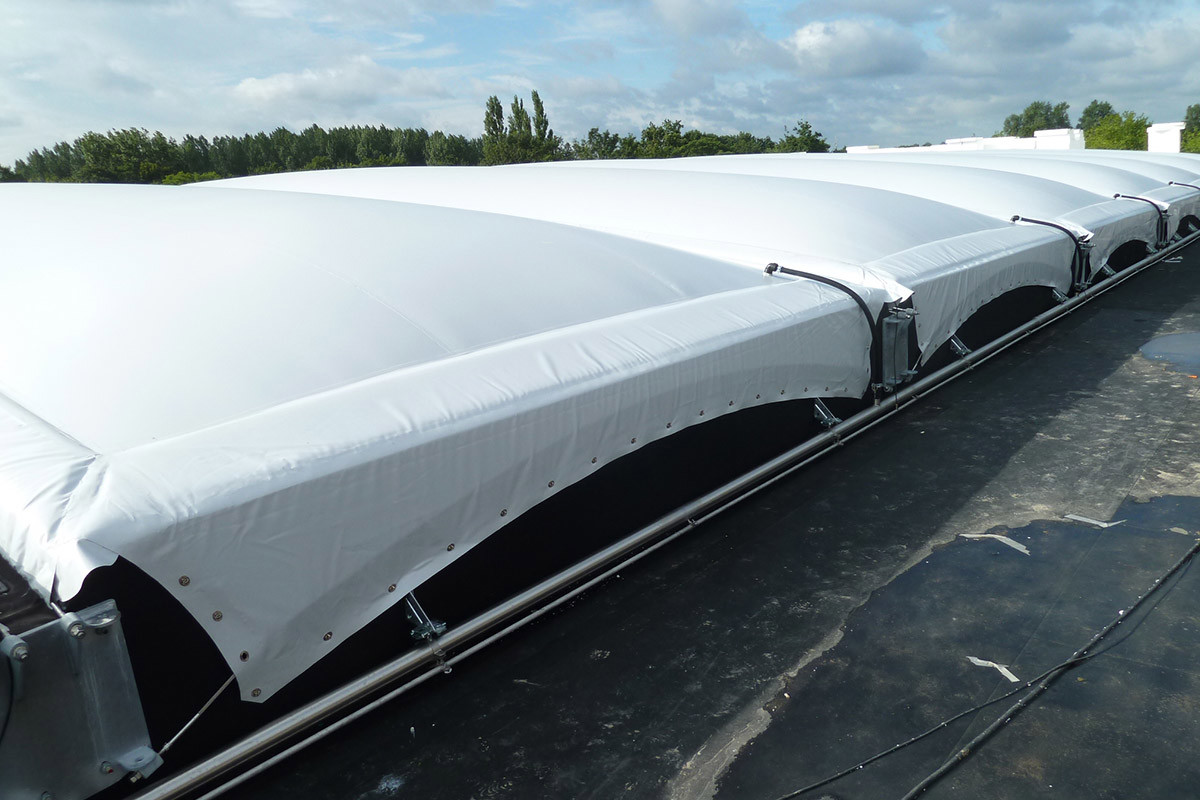

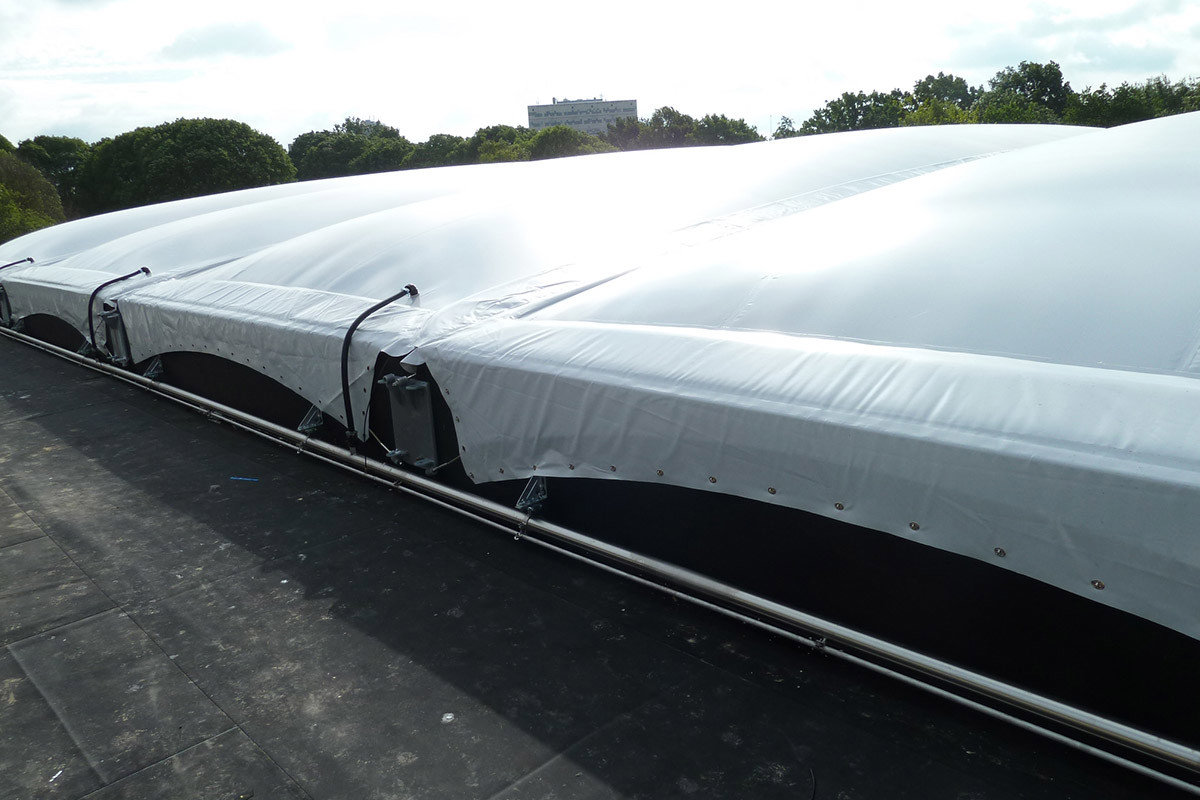

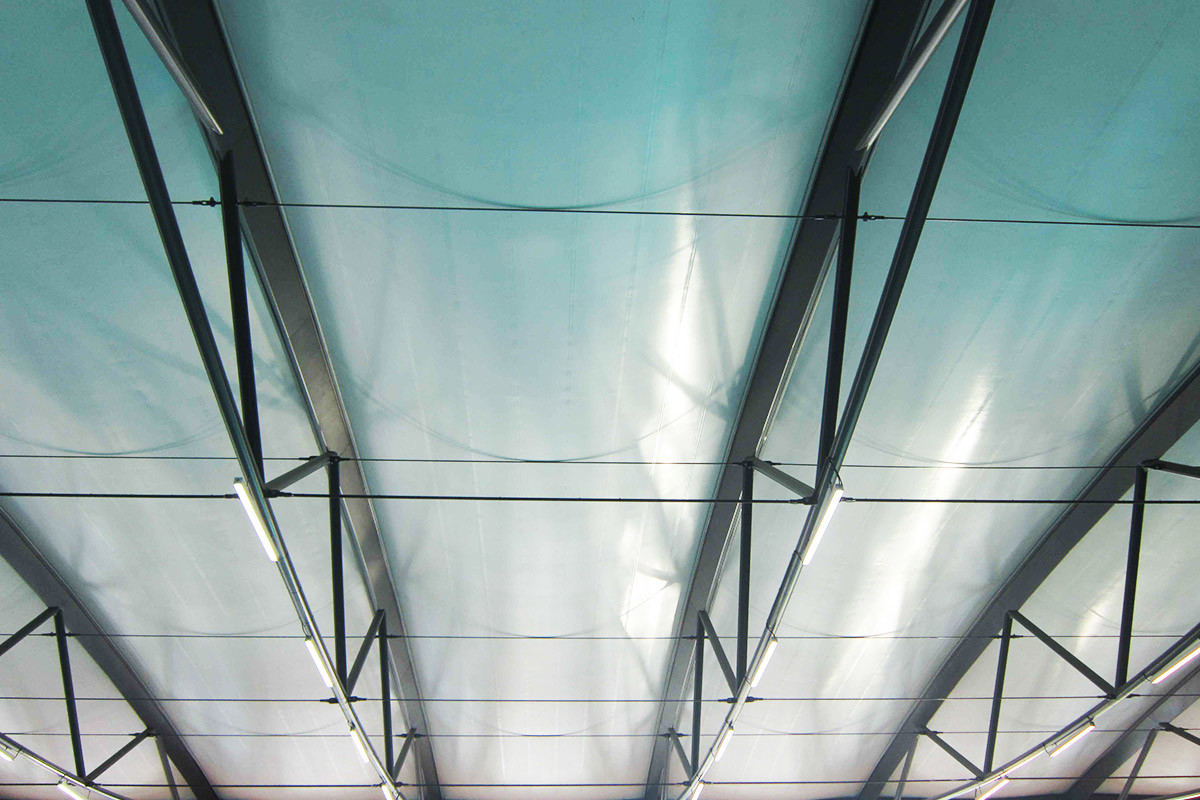

The roof consists of 11 air cushions with a total surface of approximately 1.600 sqm. The cushions are composed of two layers of coated fabric. The bottom layer of the air cushions is provided with a layer of vapor proof film, on top of which 10 cm of flexible insulation material is fixed. The air cushions are fixed on 12 beams with a span of 26 m. The beam structure is stabilised by tension rods.
In summer the air cushions are removed, creating an open-air swimming pool in stead. After summer the cushions are re-installed again and the swimming pool is winter proof!
Project data
| Material: | PVC gecoat polyesterdoek |
| Client: | Gemeente Utrecht |
| Main contractor: | Bouwbedrijf van de Hengel |
| Architect: | Wehrung Architecten en Jeanne Dekkers Architectuur |
| Engineering: | Tentech BV, Utrecht |
| Membranen: | Buitink Technology |
| Steelworks: | Buiting Staal- en Machinebouw |
| Year of implementation: | 2012 |
