Air-cushion roof Hellebrekers
Contact form
+31 (0)316-250830

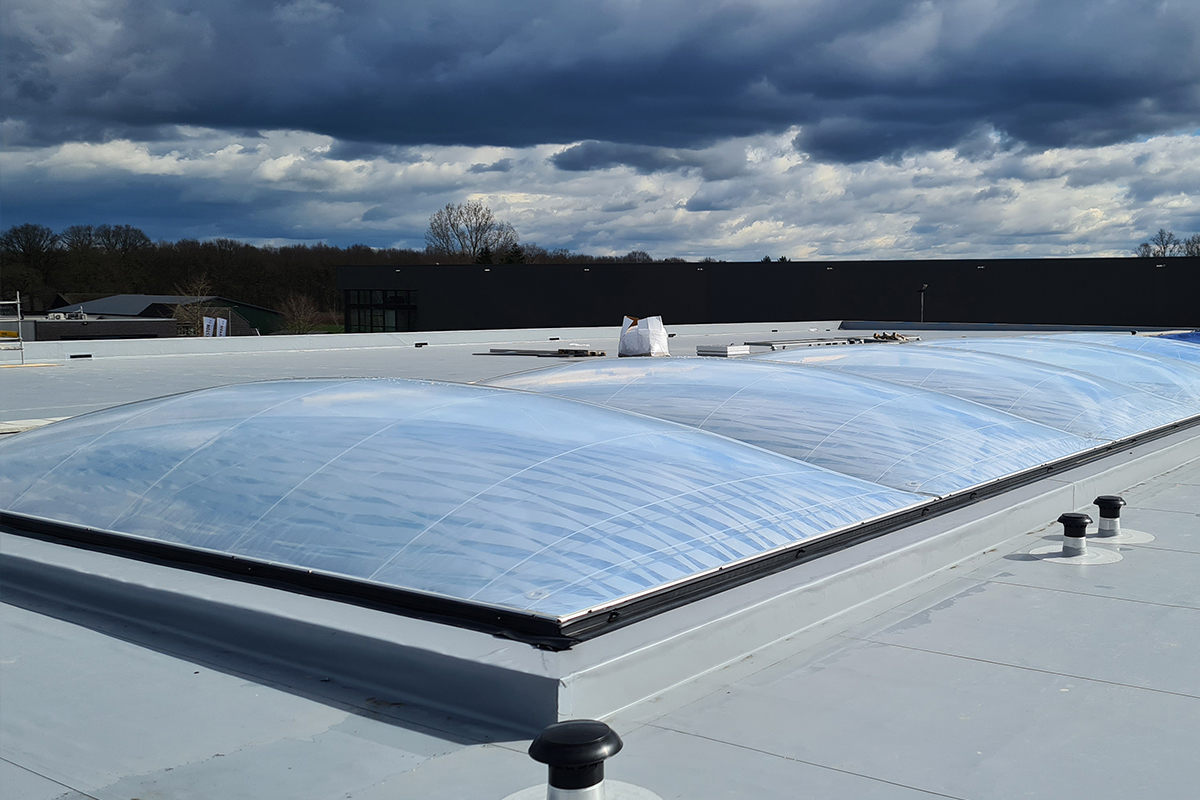

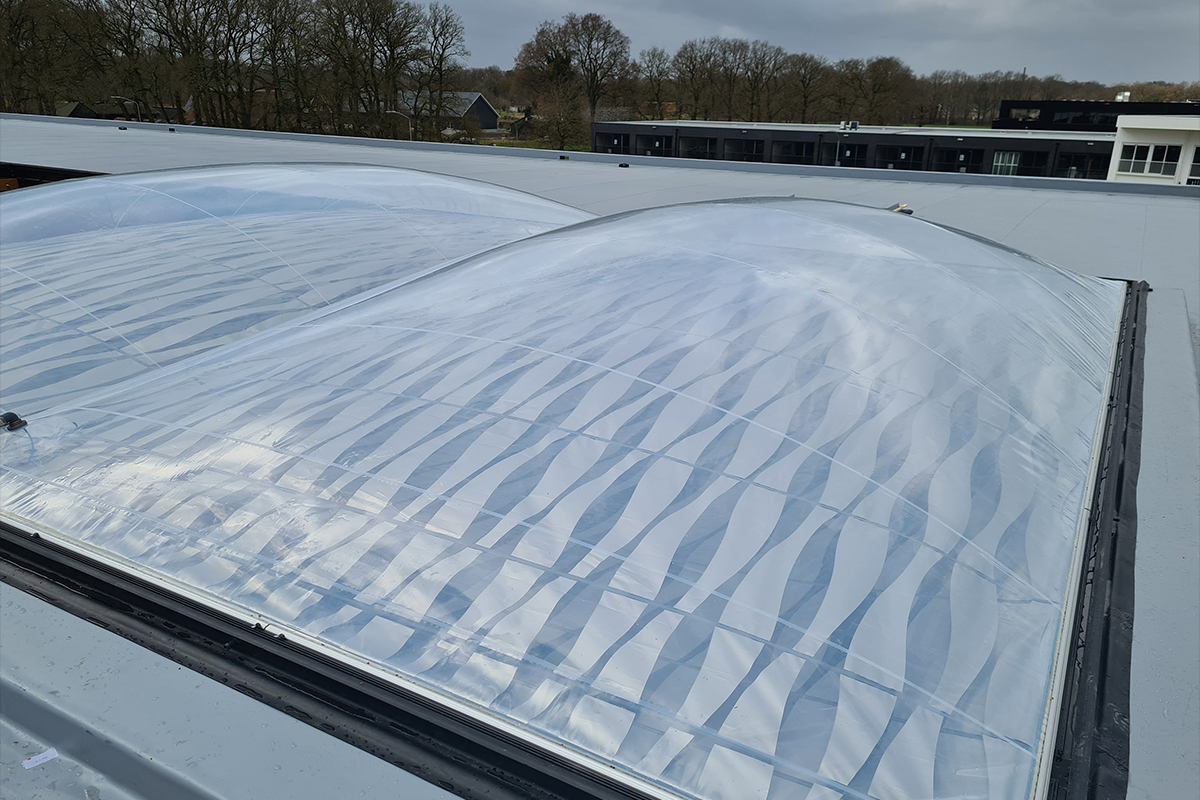

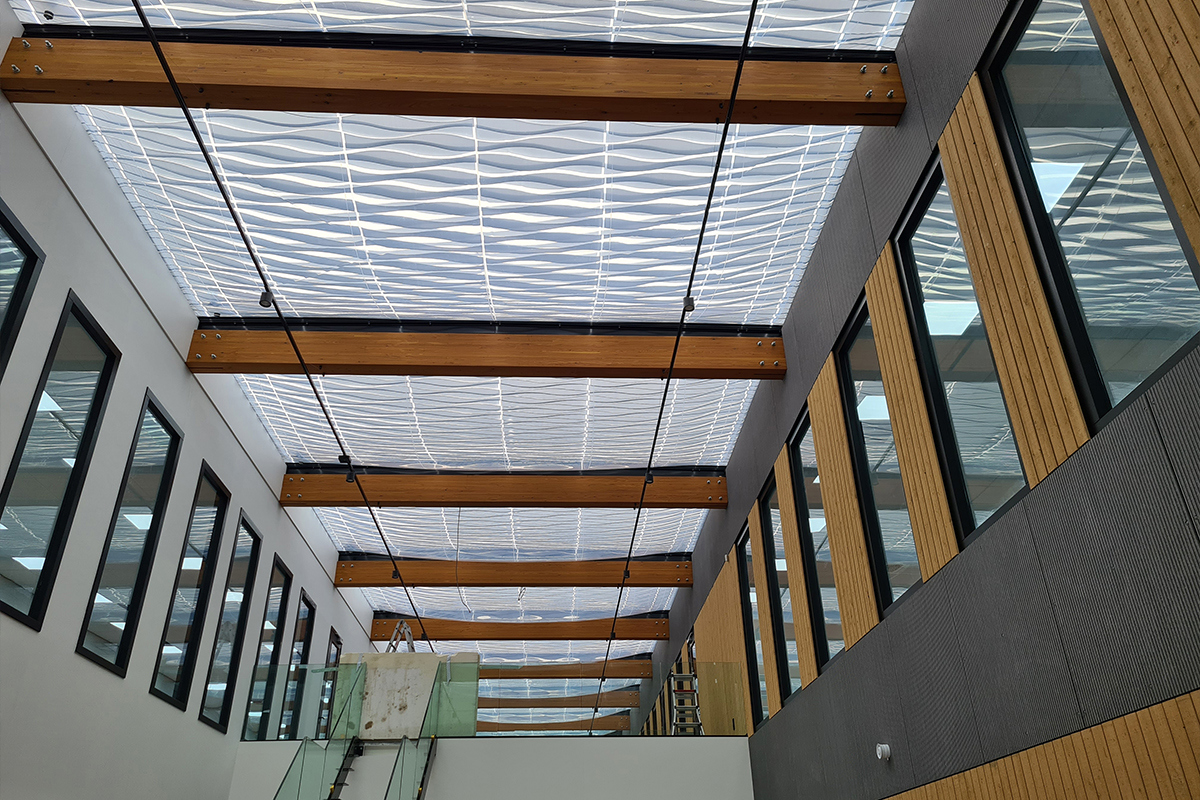

Buitink TechnologyBuitink Technology has realised the transparent and sunlight-regulating ETFE air-cushion roof over the atrium of Hellebrekers’ new head office in Nunspeet.

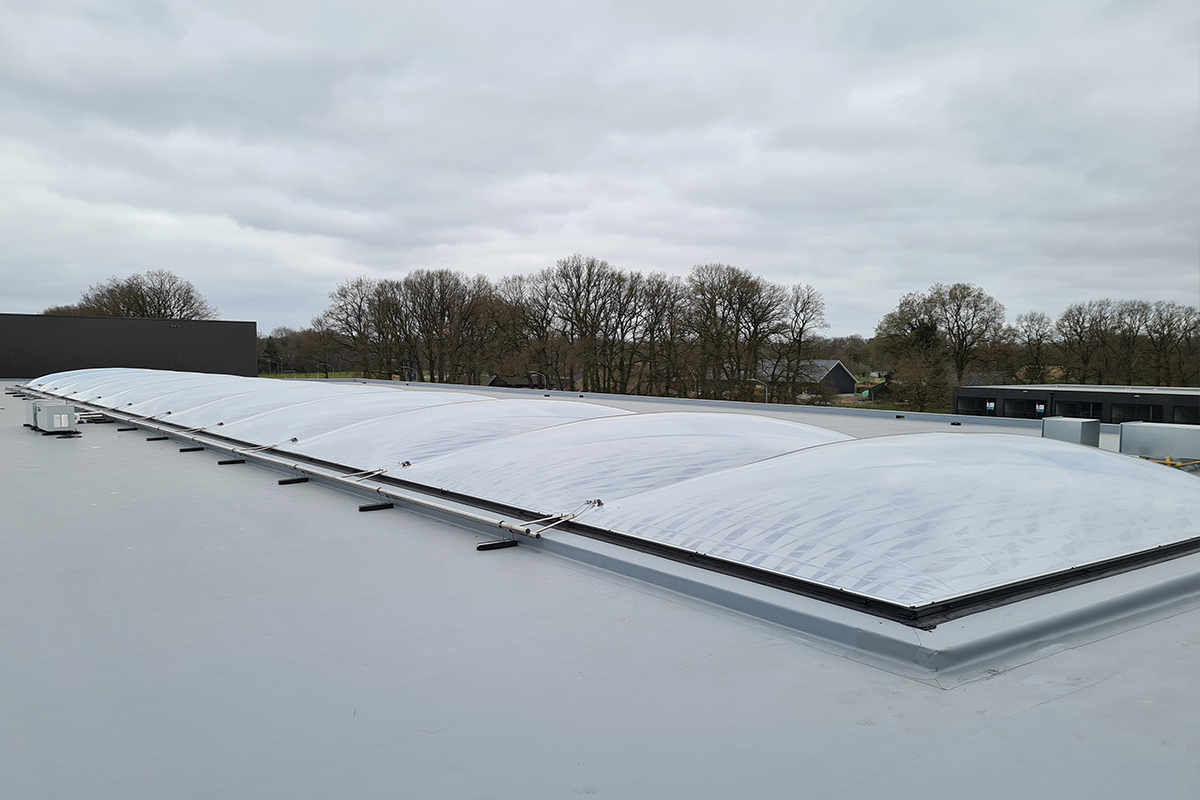

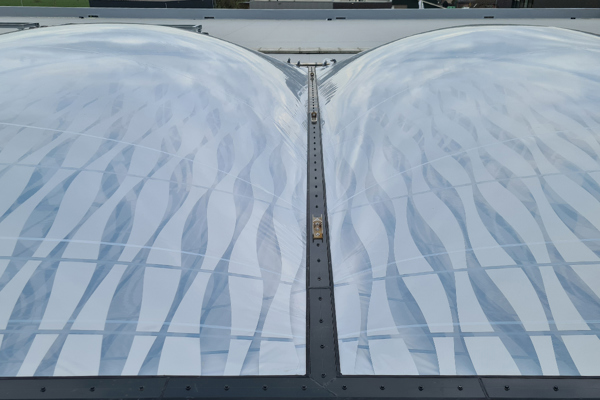

The air-cushion roof is made up of 12 ETFE cushions with a total surface area of approx. 350 m2.

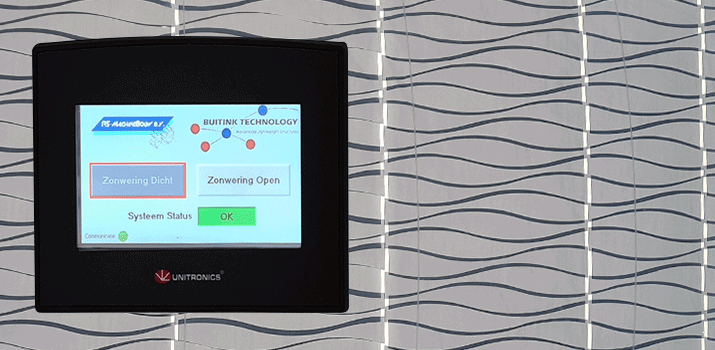

Air-pressure controlled blinds

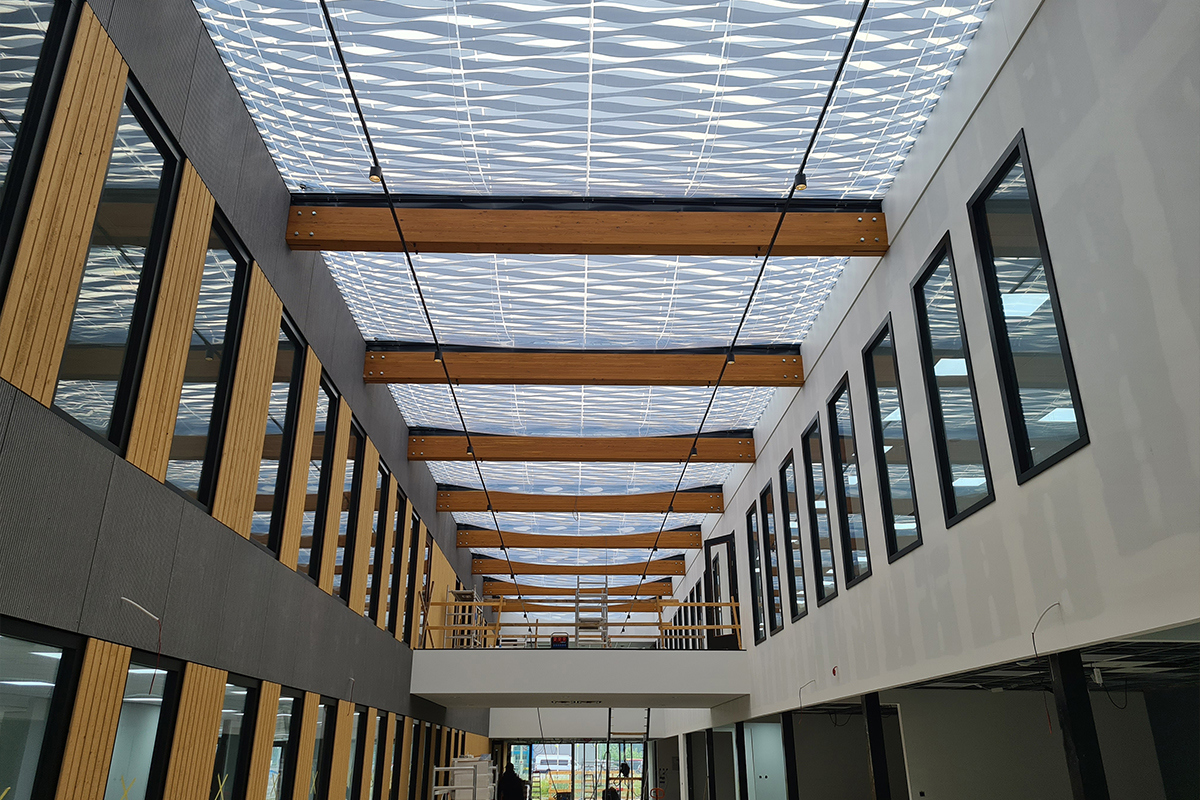

The roof comprises four layers of ETFE foil (creating three air chambers). The patterns printed on the middle two layers run in different directions. Using air pressure to control how far apart or close together these layers are held controls the level of shade. Bringing the layers close together produces maximum protection from sunlight and the more they are separated, the greater the light transmission.
You can read more about how a four-layer ETFE air-cushion roof controls sunlight ingress on the next page:
Sustainable choice
The choice of ETFE sheeting and its use as an air-cushion roof are sustainable thanks to the high insulation values of the roof and the eco-friendly properties of the ETFE sheeting itself.
The following PDFs contain further information about the sustainability of ETFE sheeting:
Project data
| Dimensions: |
350 m2, made up of 12 ETFE cushions |
| Material: | EFTE sheeting, four layers with sunlight ingress control |
| Client: | Hellebrekers BV |
| Architect: | Architektenburo Guido Bakker |
| Main contractor: | Prins Bouw BV |
| ETFE air-cushion roof: | Buitink Technology |
| Year of installation: | 2021 |

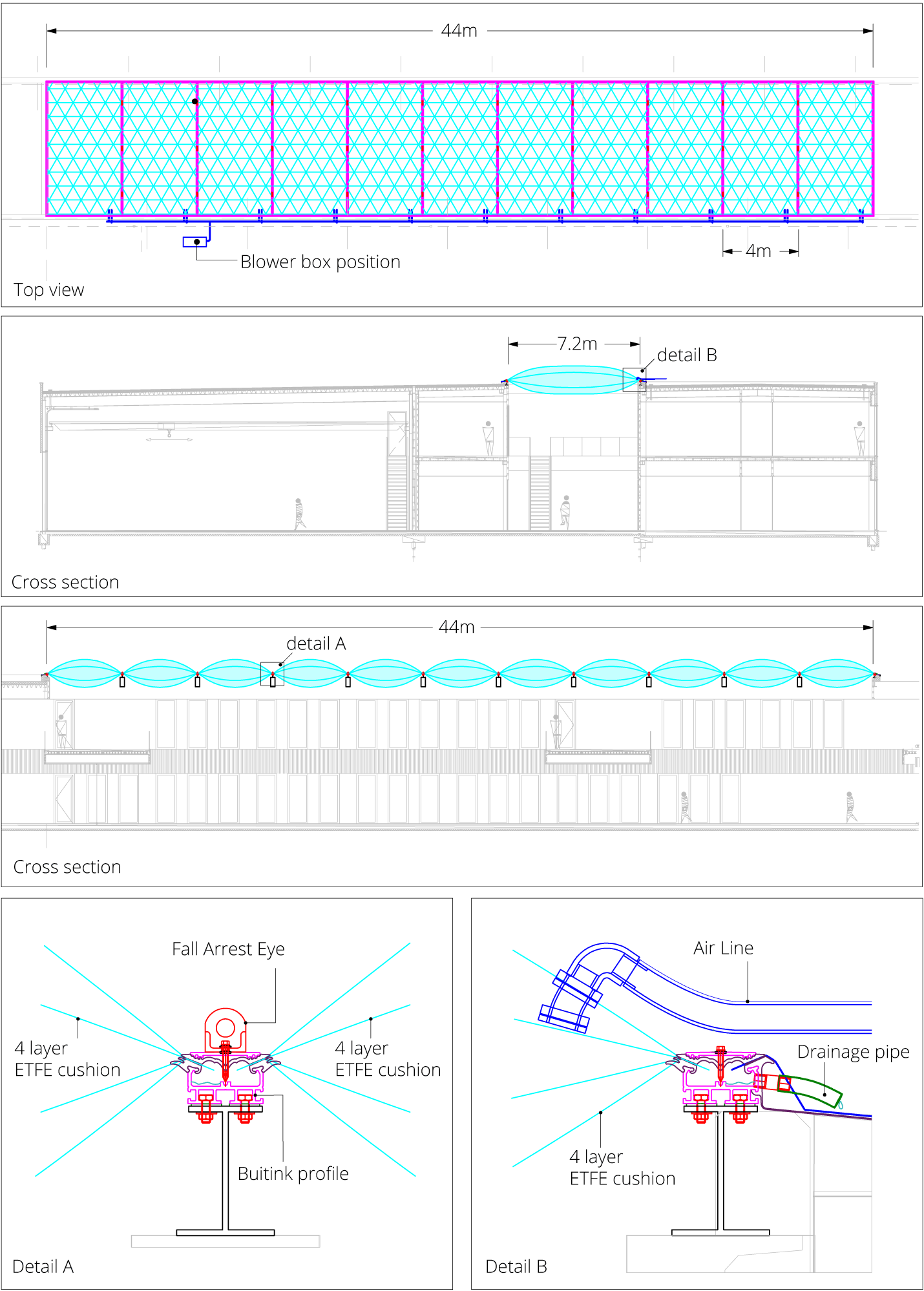

Development and engineering

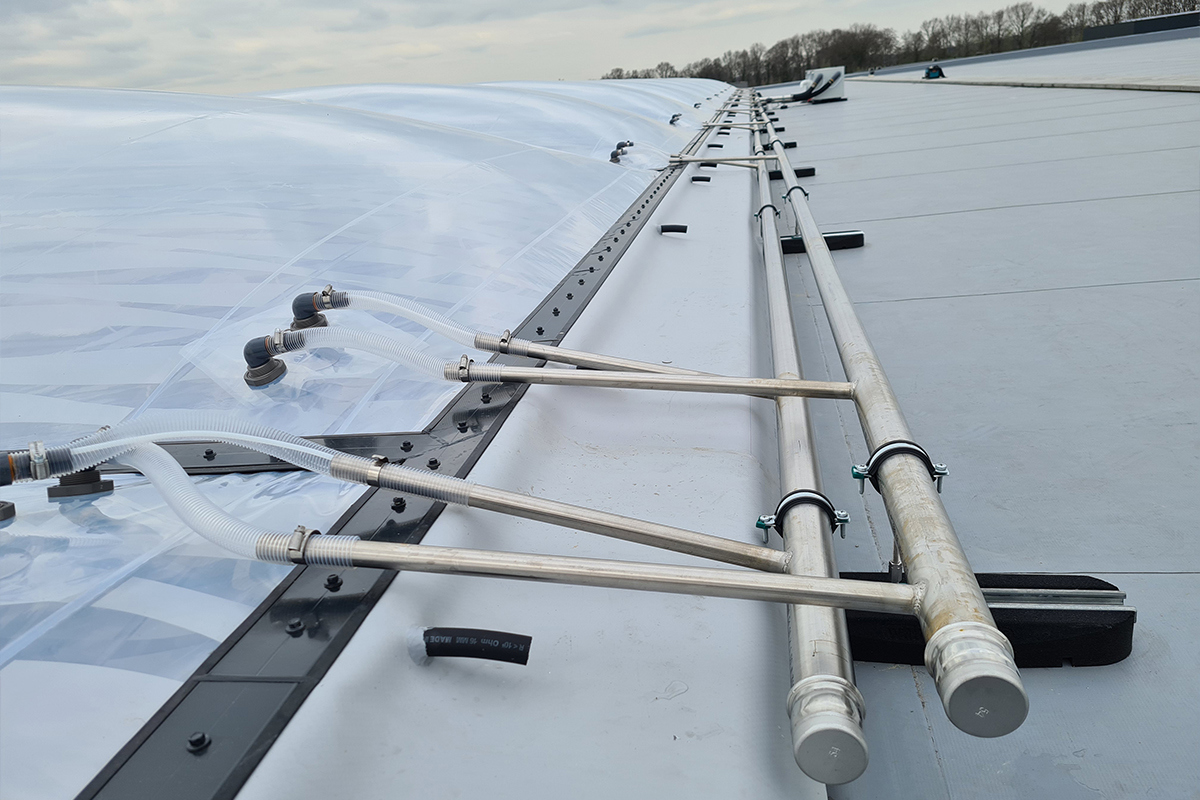

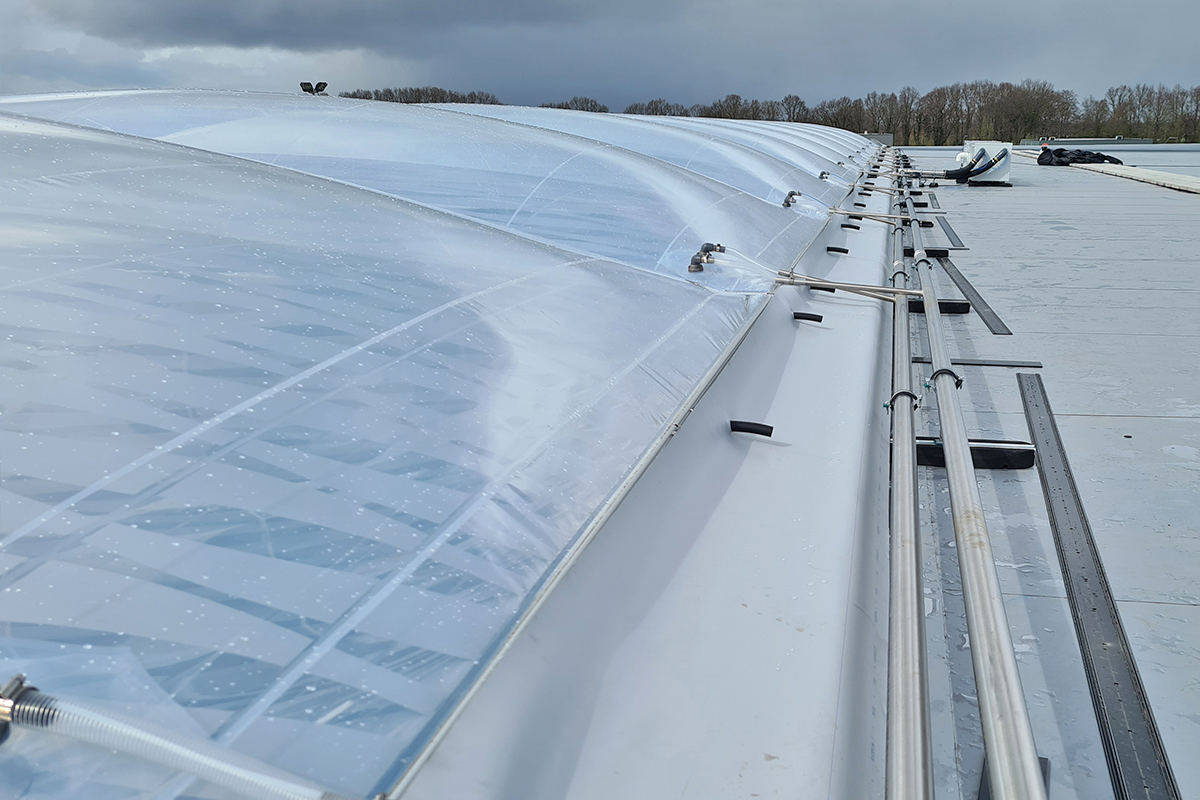

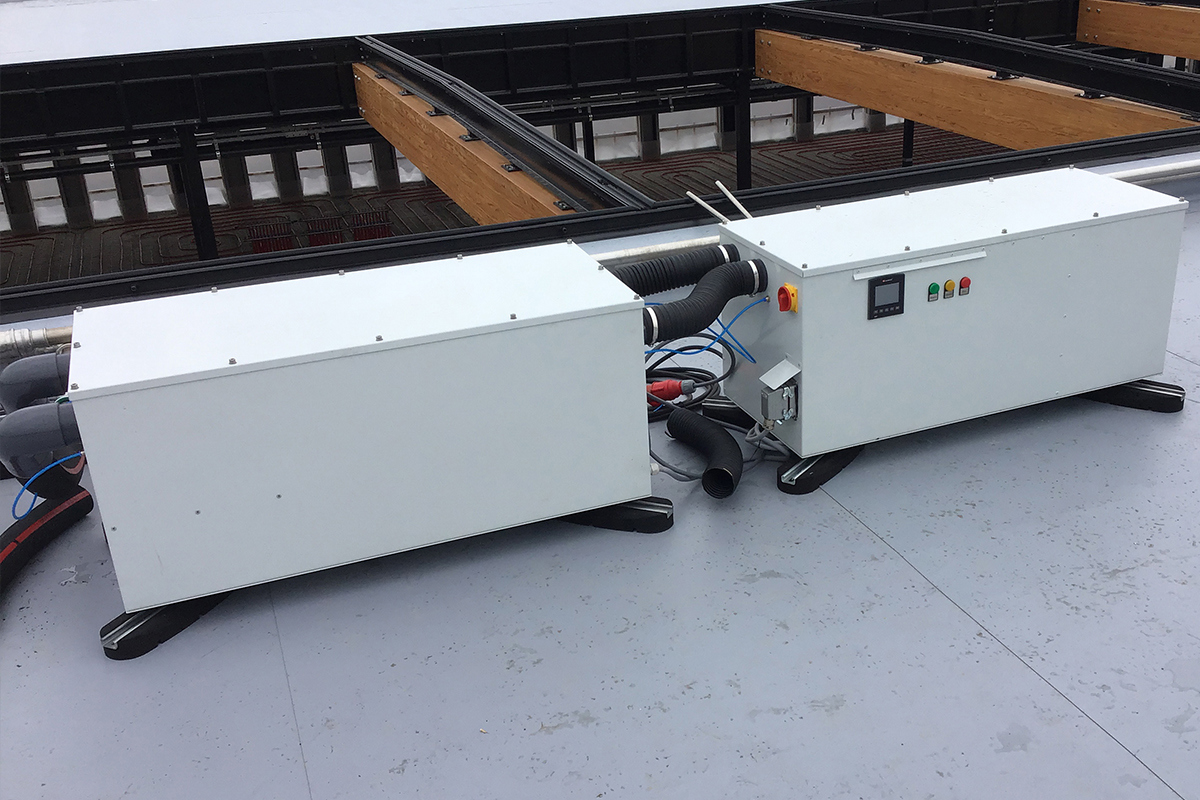

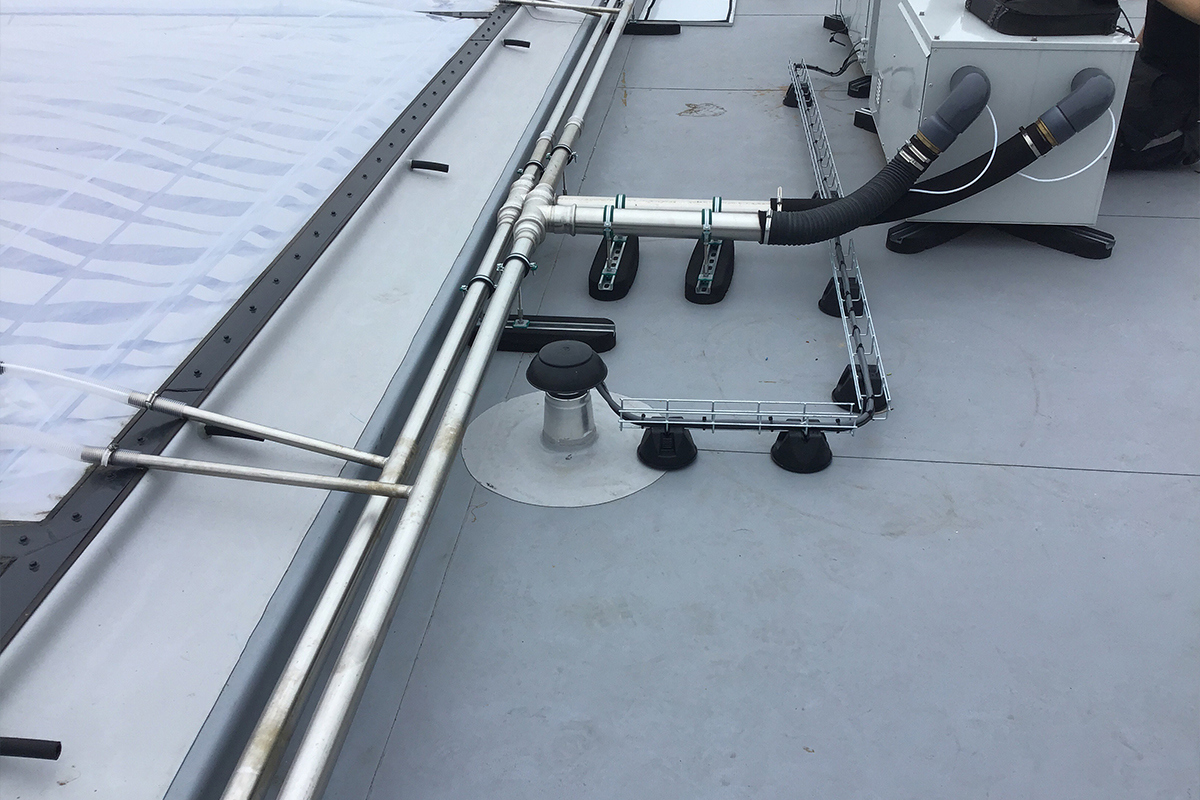

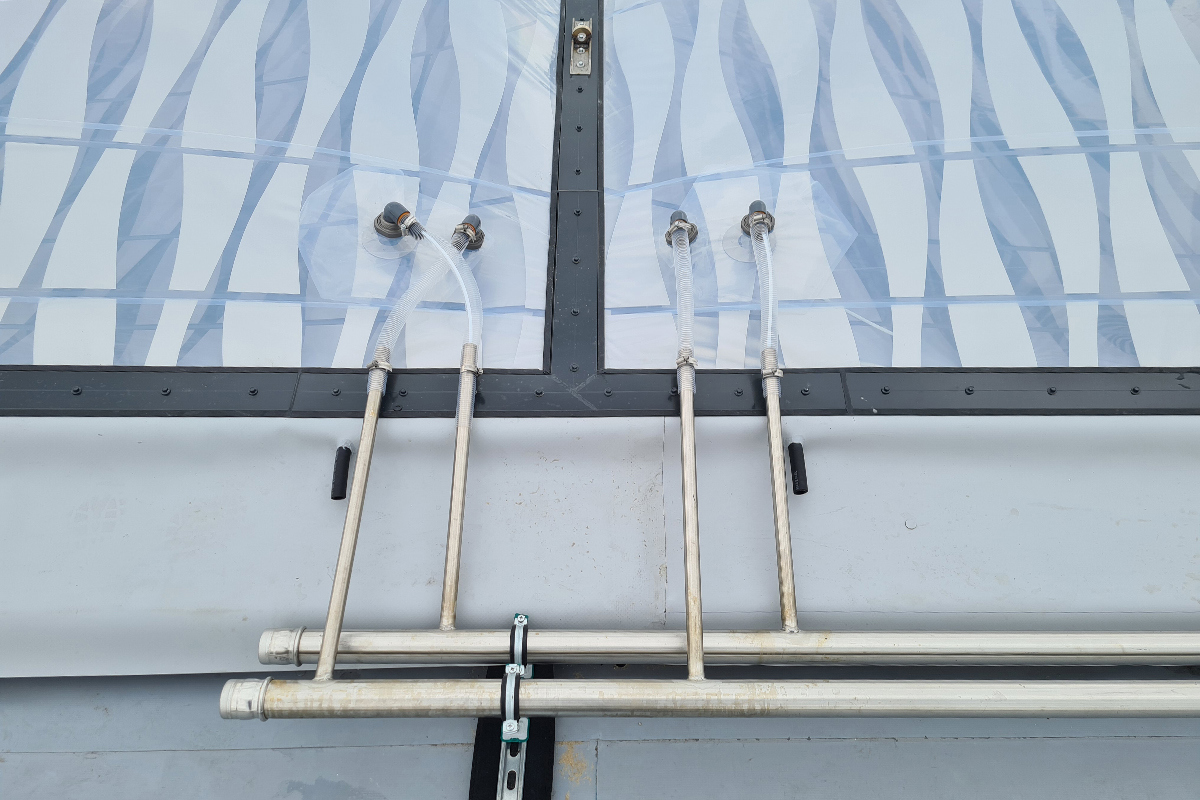

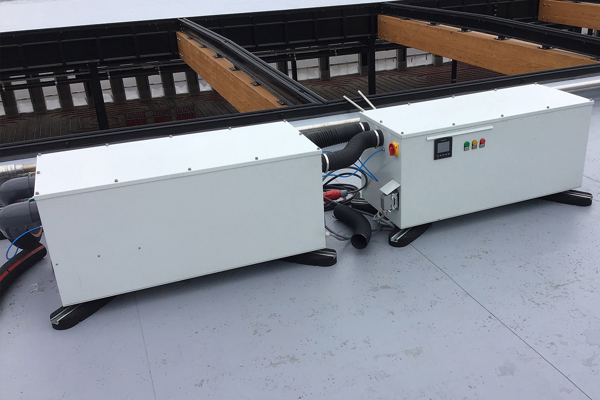

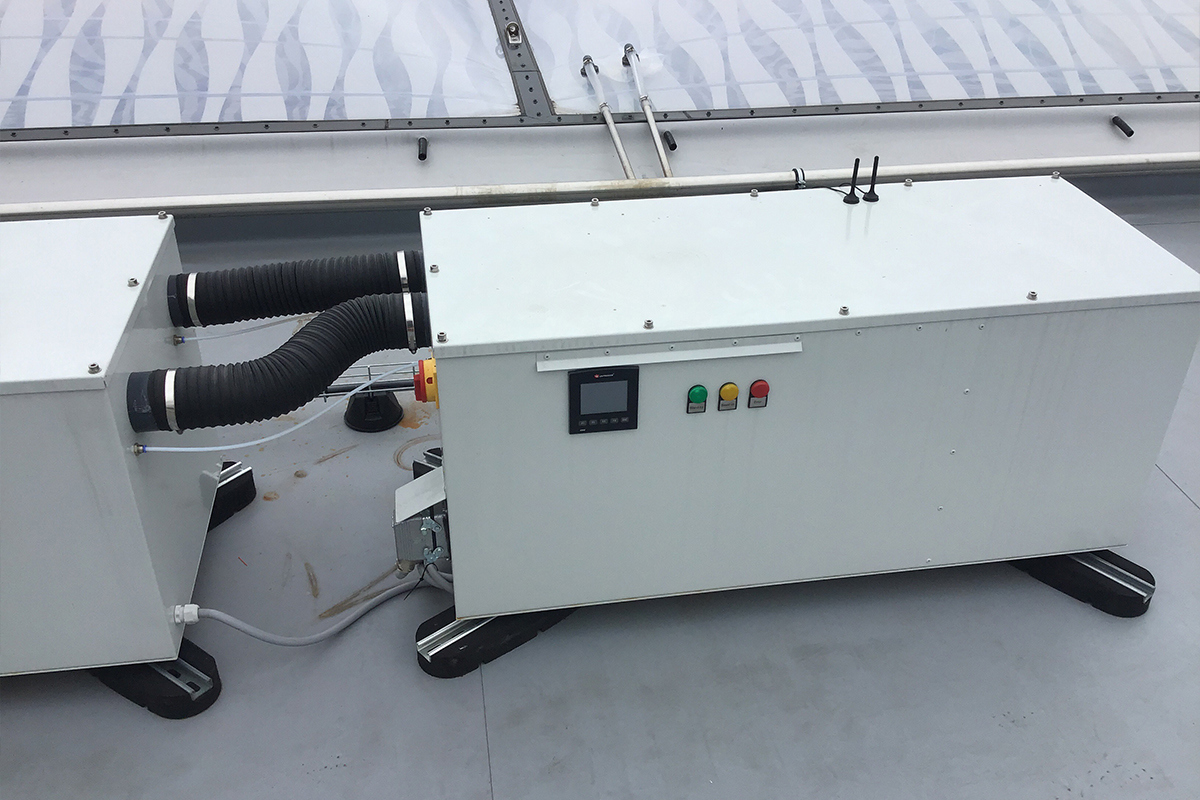

Air supply lines for ETFE air-cushion roof
