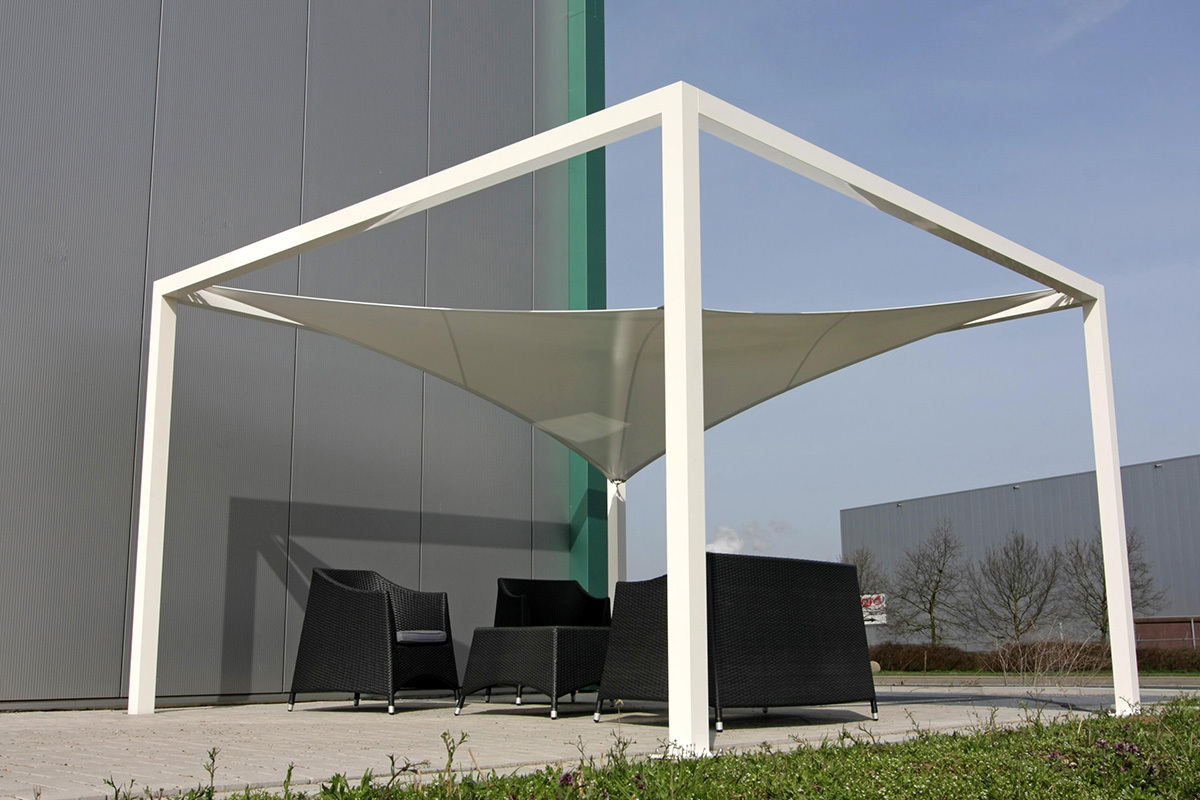

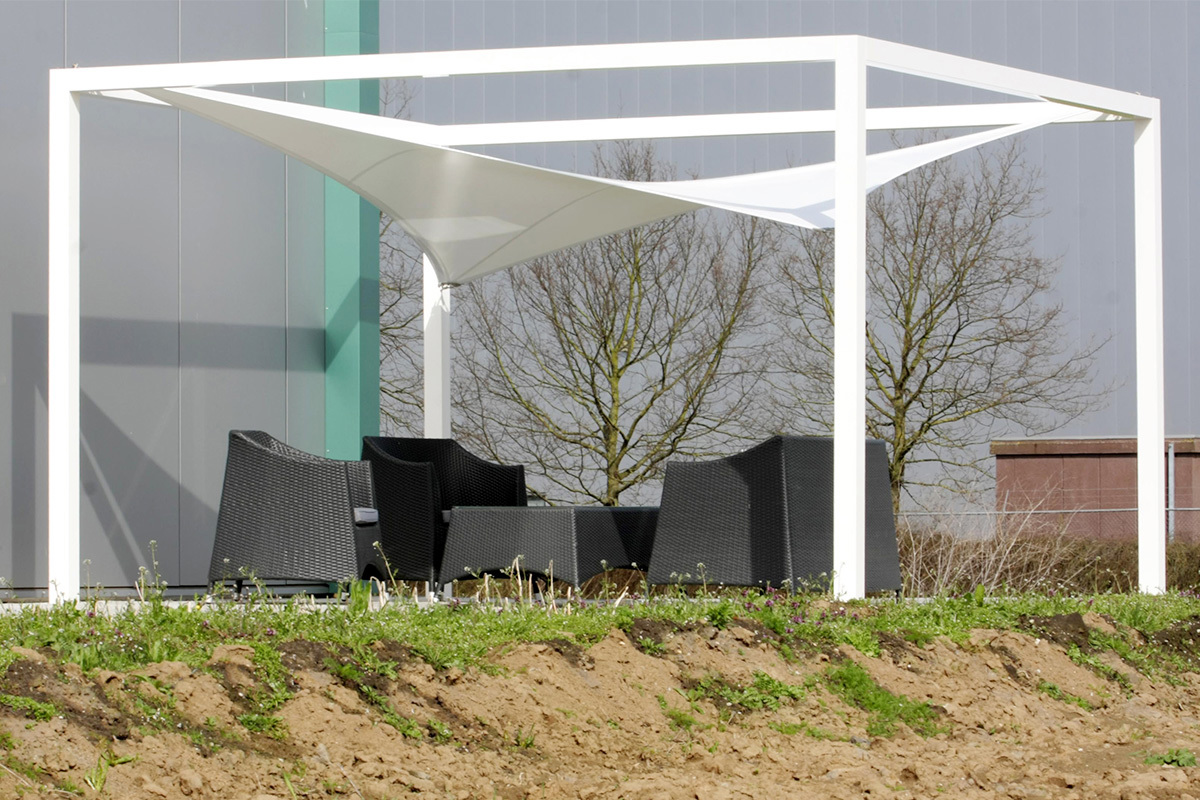

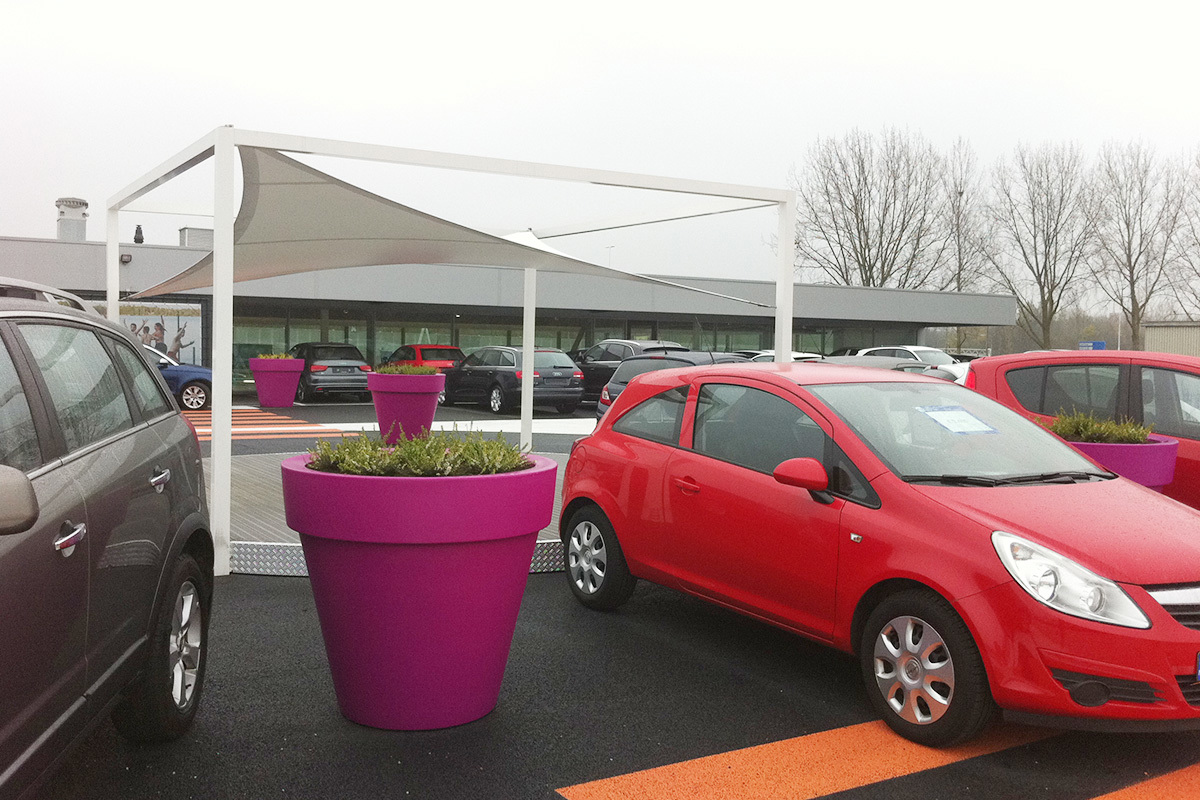

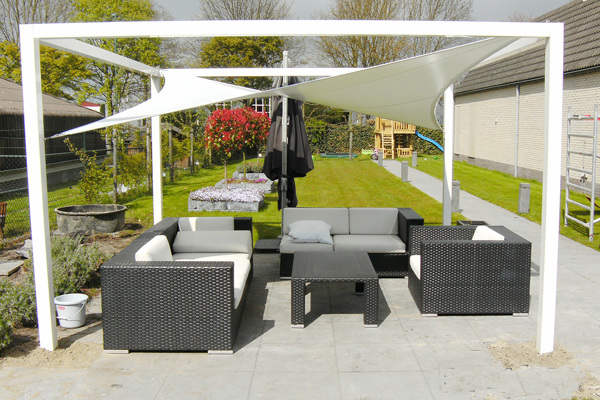

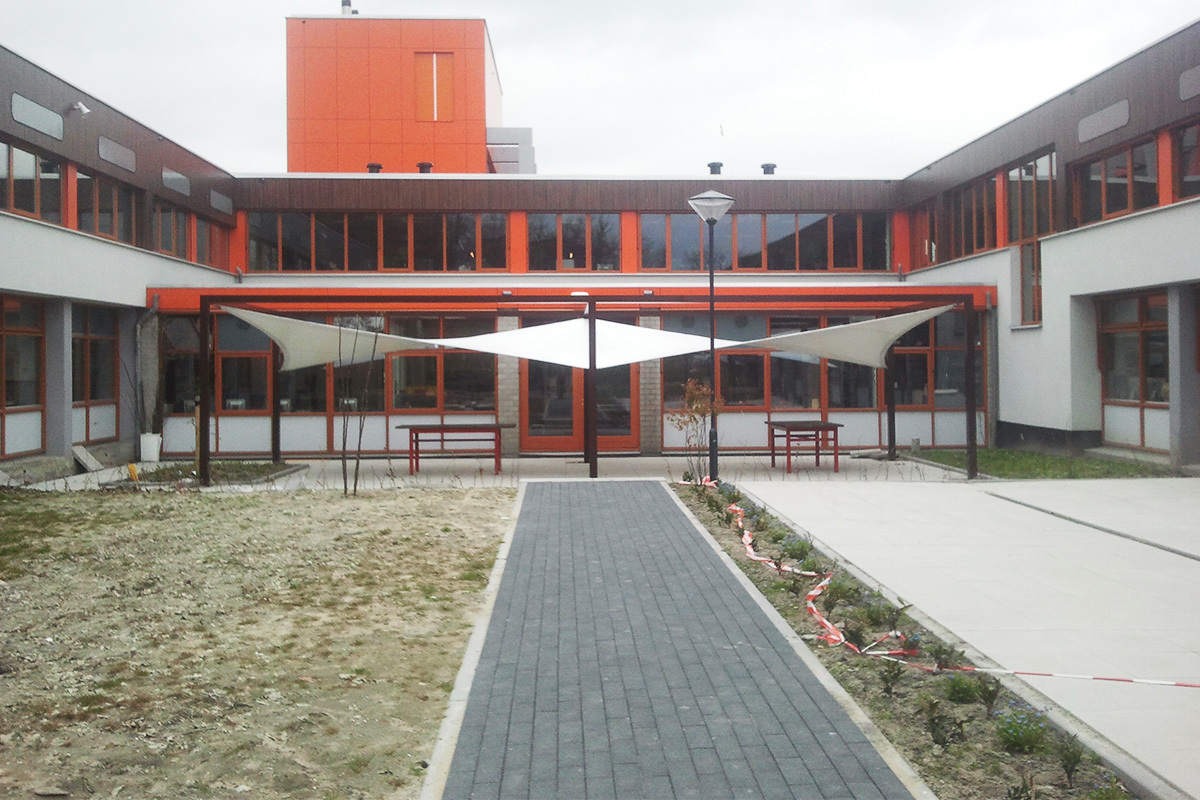

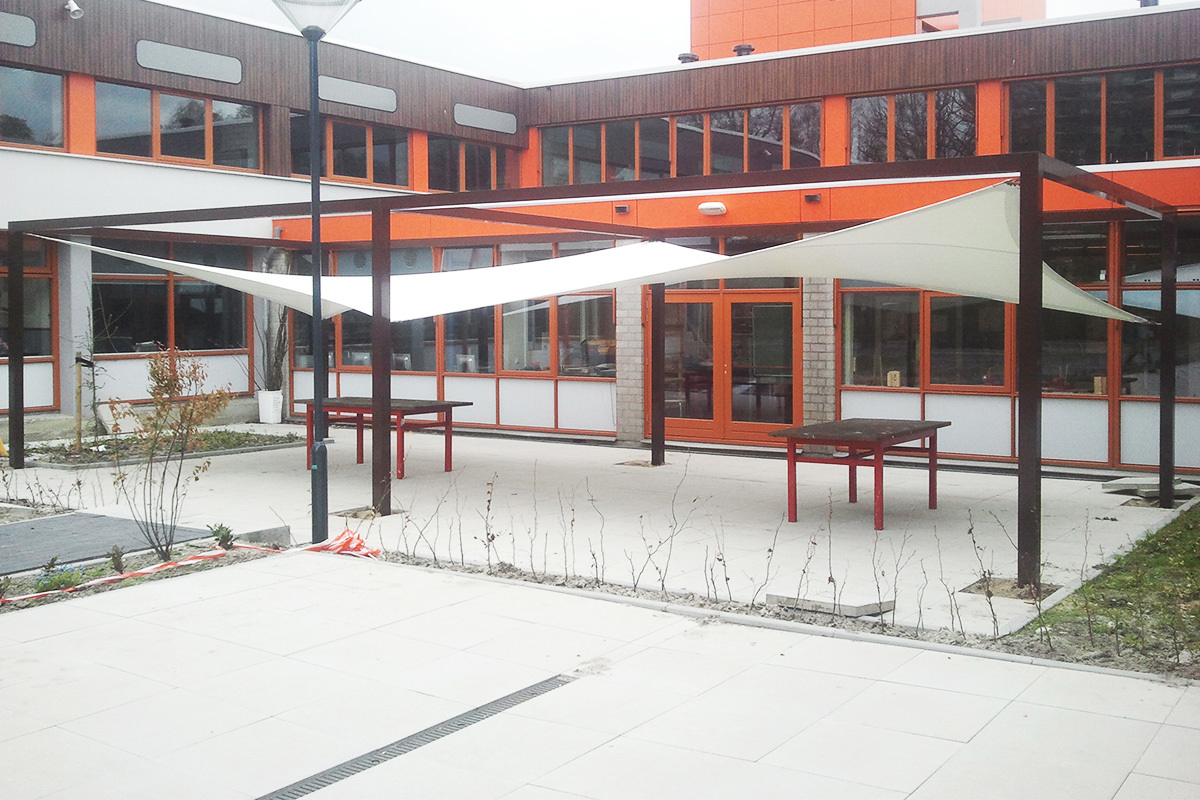

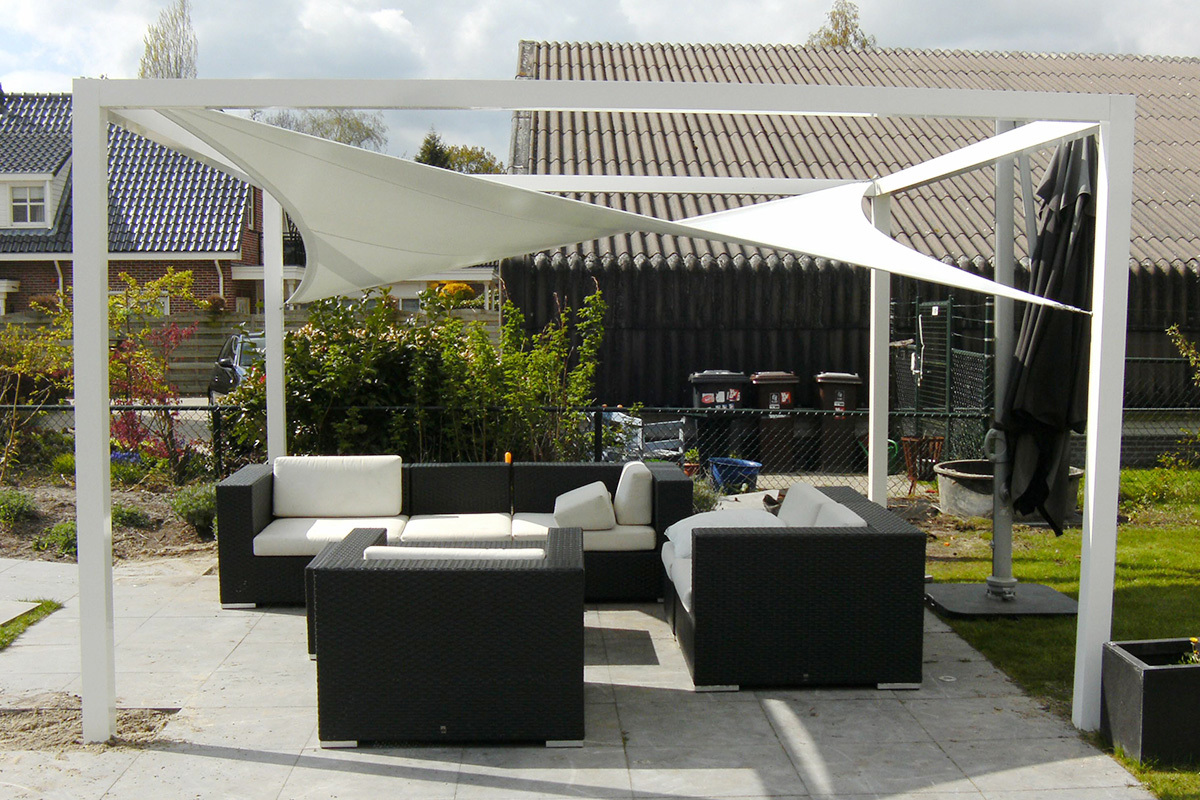

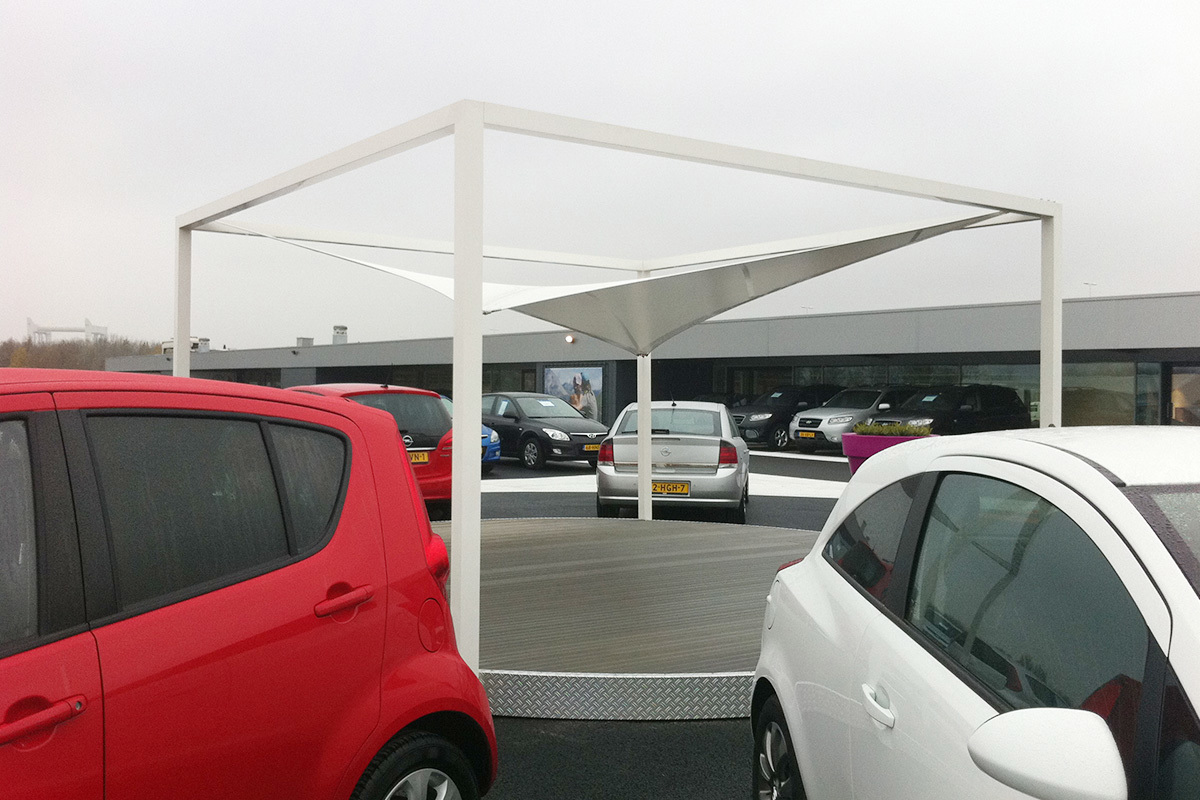

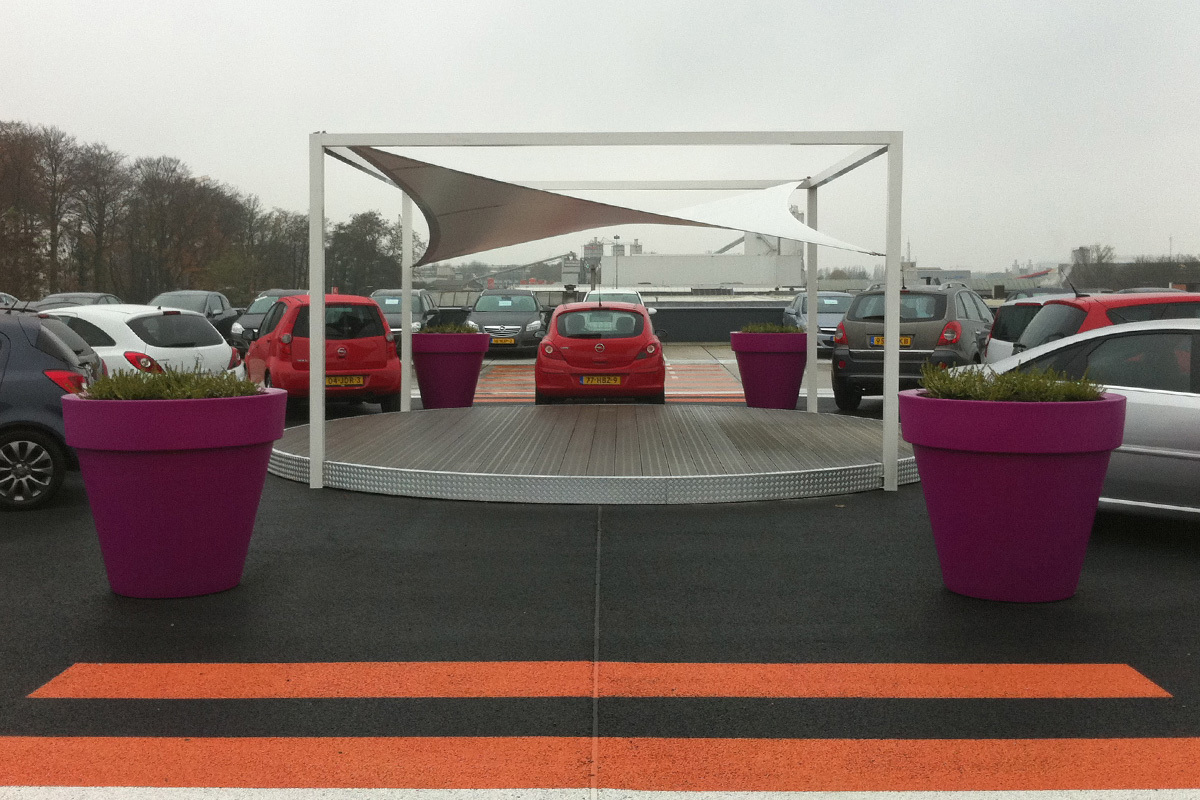

Buitink Technology makes innovative fabric architecture like our tensioned membrane lounge coverings. The lounge covering ES AW is an absolute top-class terrace covering. This covering is storm proof and can remain installed throughout the year.

Specifications membrane lounge covering

This type of tensioned membrane lounge coverings has the following specification:

• Model: Enclosed Saddle All Weather^® (ES AW^®);
• Size: 4 x 4 x 2,5m (standard), custom made possible;
• Construction: Aluminum square tubes 100x100 mm + tensioned membrane + stainless steel auxiliaries (plates, clamps, cables etc).

Aluminum frame

The ES AW^® consists of an aluminum frame of square tubes of 100x100 mm (or more if the dimensions are larger). The frame is provided with footplates (for fixation to the ground) and is easy to install trough screw anchors (80 cm long). Also we can install this construction for you (including the ground anchors, price on request).

The aluminum construction can be duplex coated in any RAL color (120 my thickness).

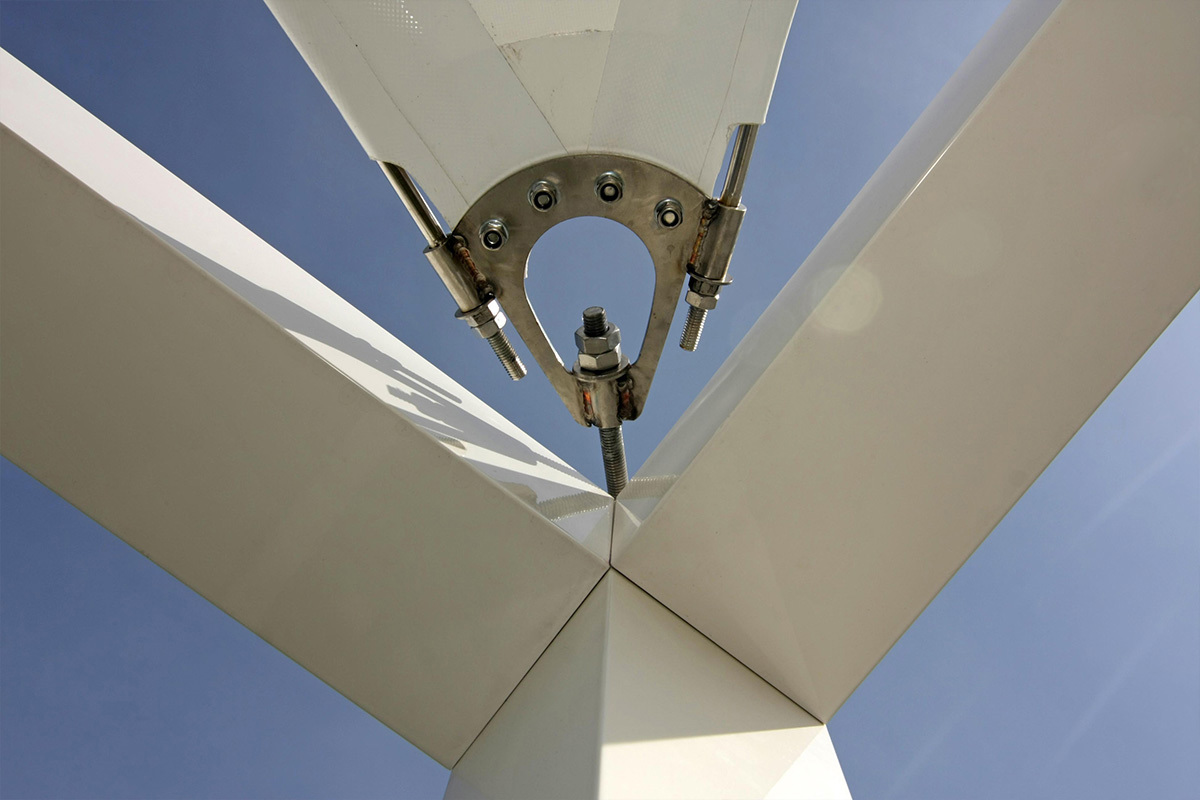

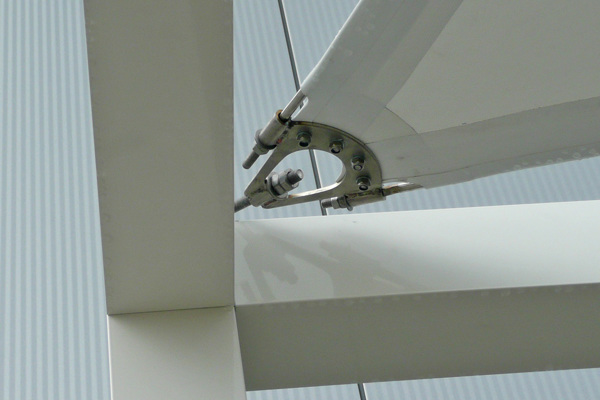

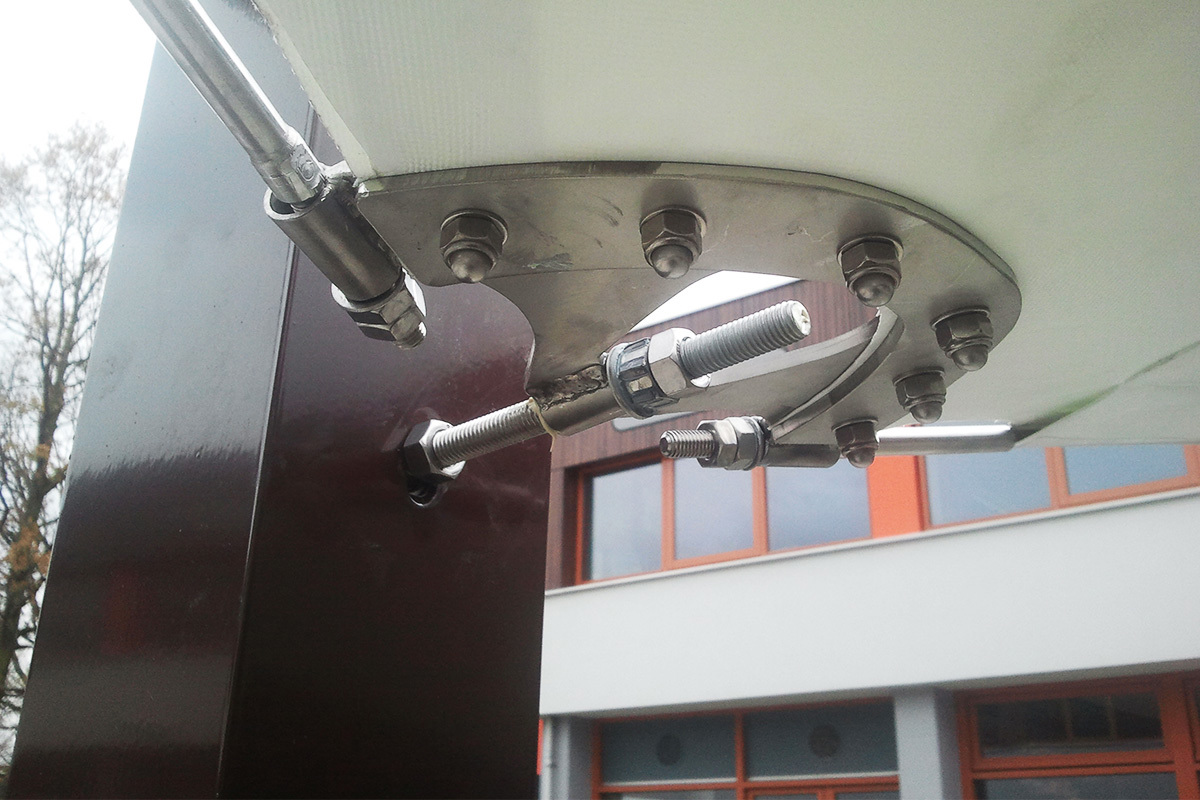

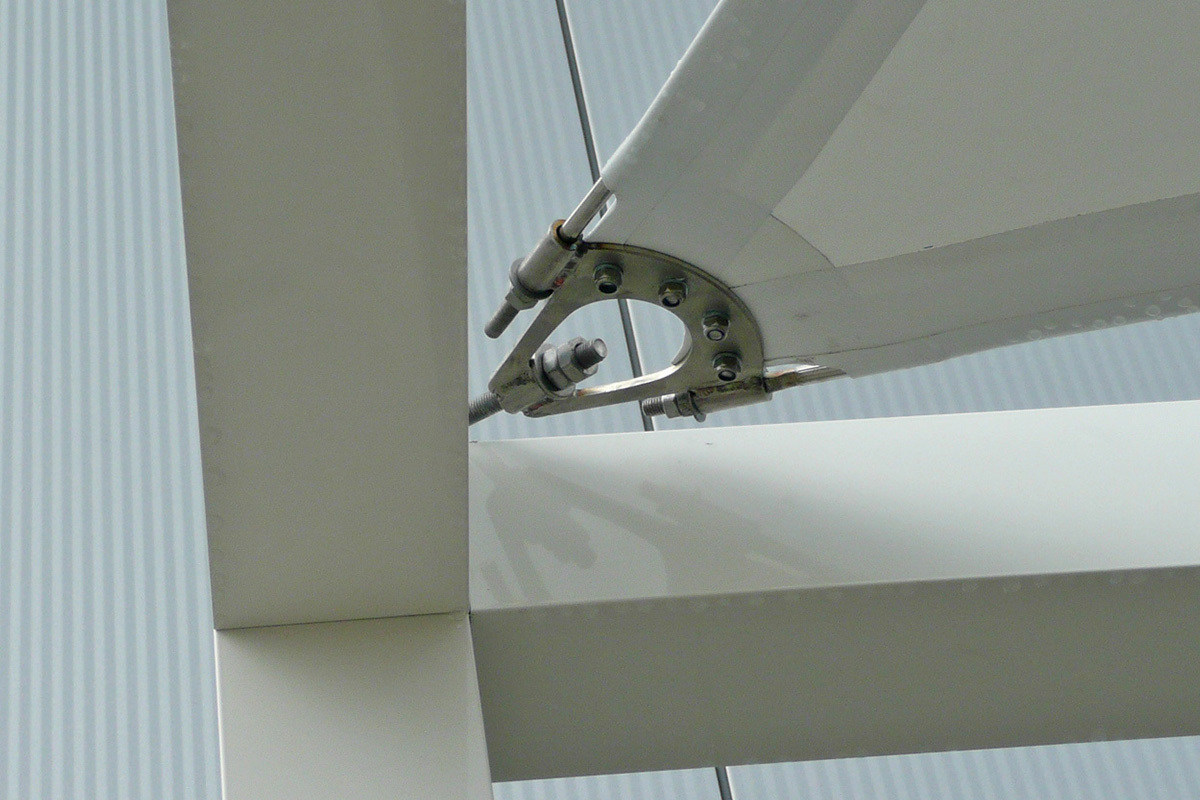

A double curved tensioned membrane is installed in the frame. The membrane is provided with a pocket around with a stainless steel cable. At the corners the membrane is provided with stainless steel clamping plates.

PVC coated polyester fabric of Ferrari

The membrane is made of a top quality PVC coated polyester fabric of Ferrari, which is UV- and weather resistant, fire retardant, dirt repelling (due to a special PVDF coating) and developed to remain installed outside. There are many options in color and type of material (colors, closed or mesh fabric).
