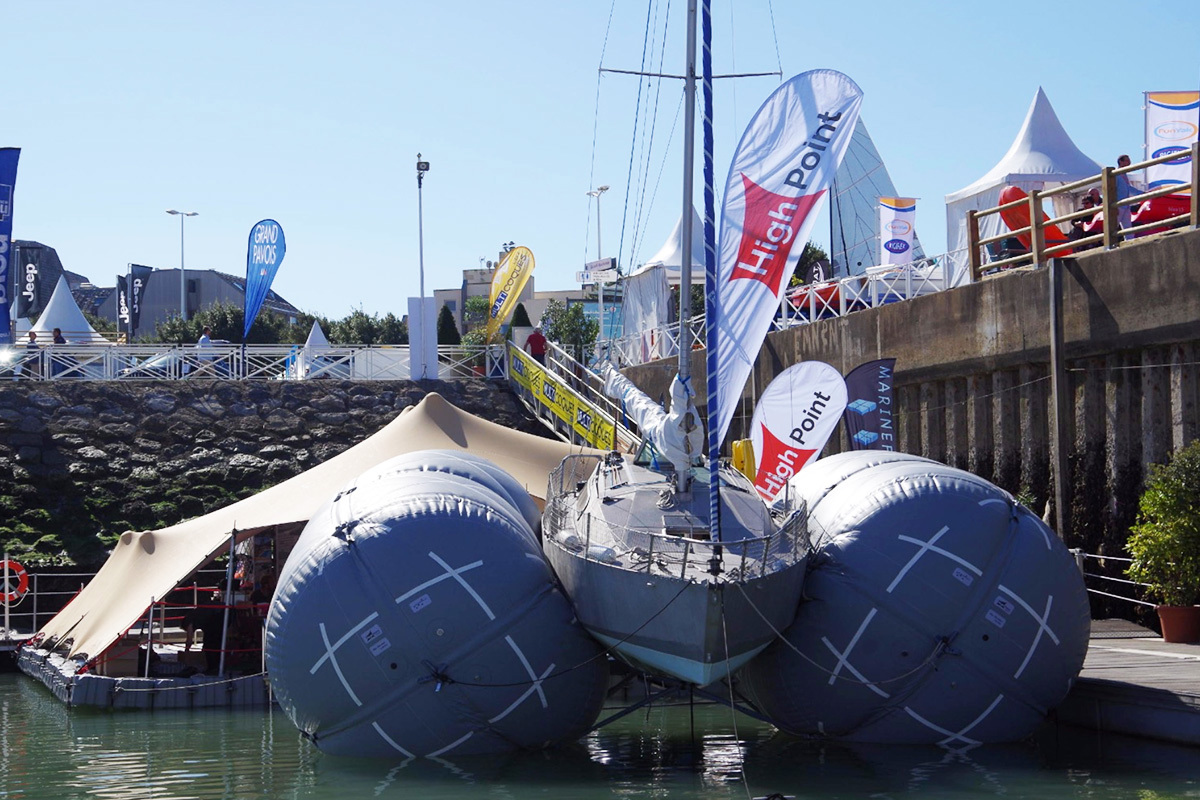

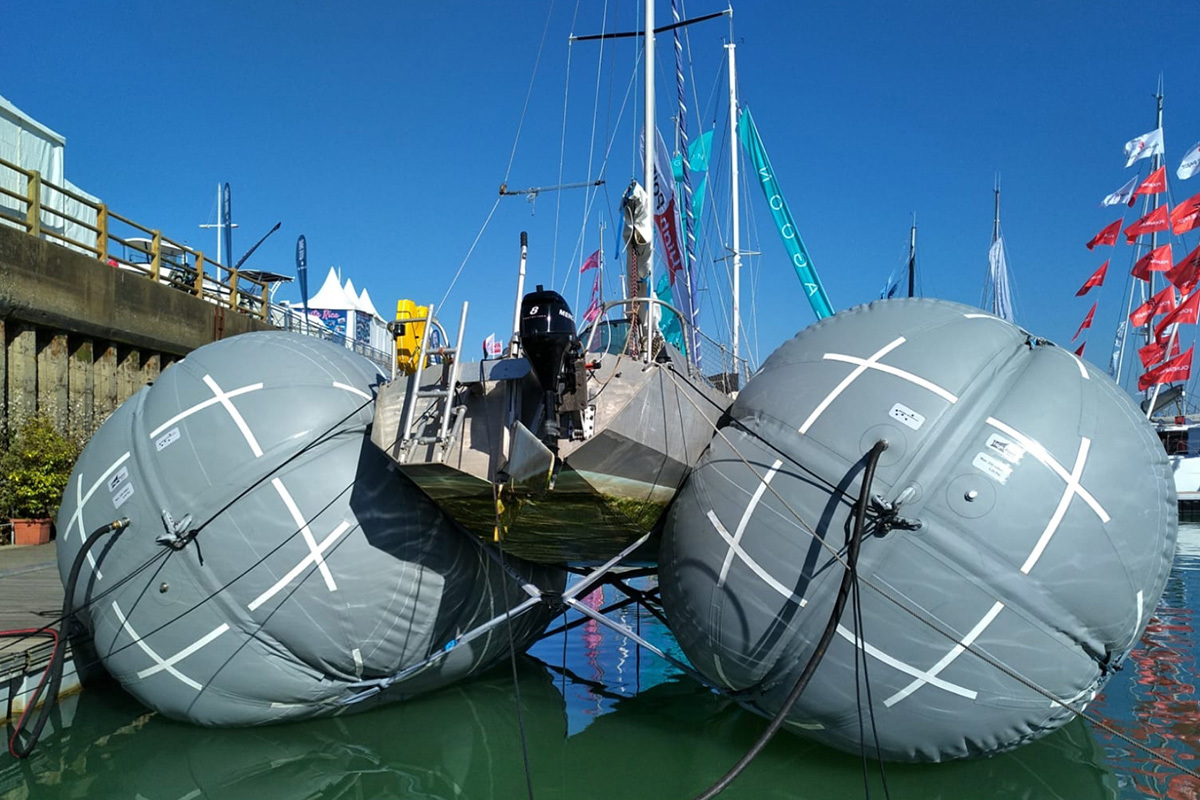

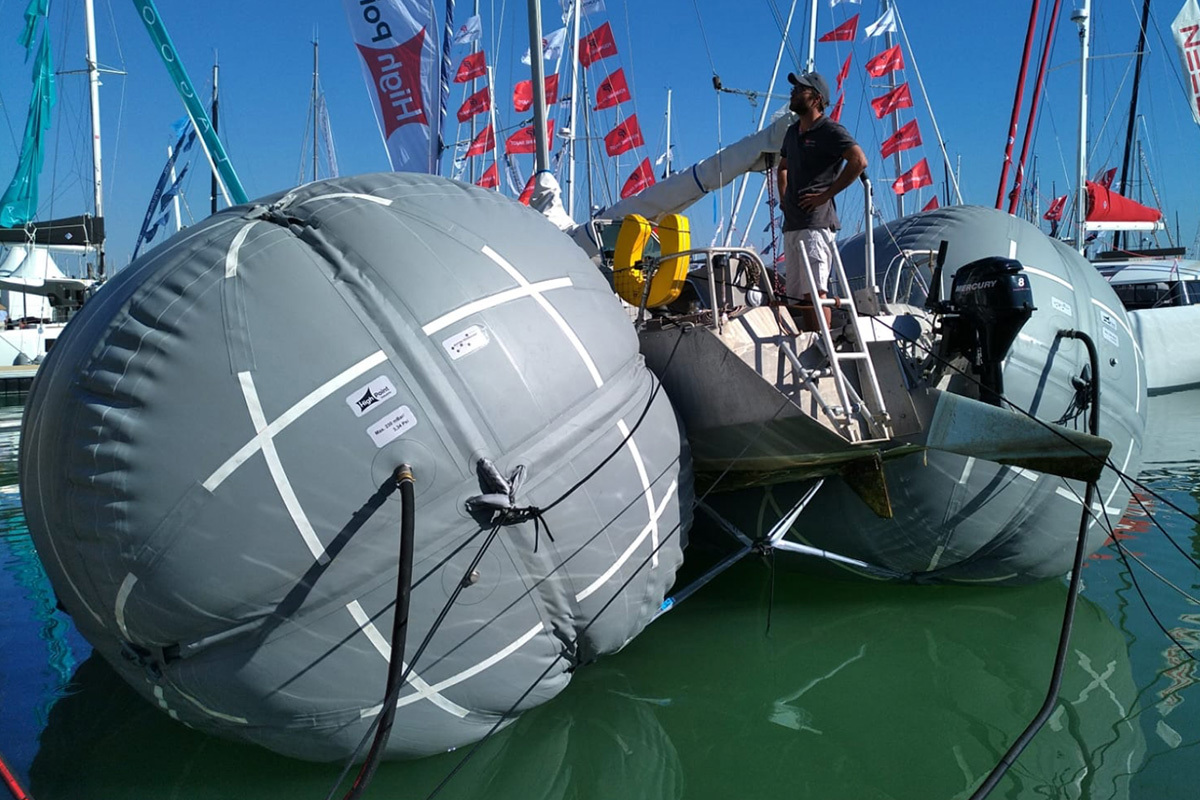

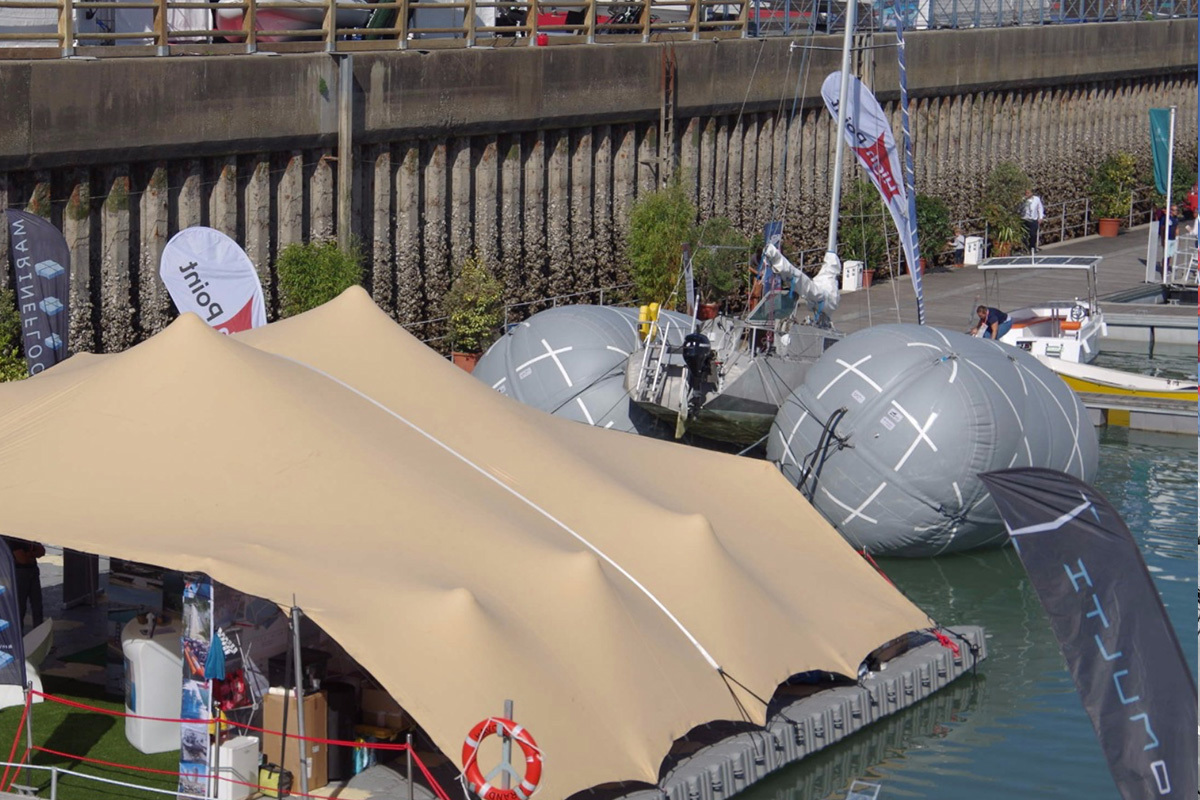

Buitink TechnologyIn the case of a boat, two floats must be used, connected by tires/ slings. By filling the floats with air, the boat is raised by the tires and then ''floats'' as it were between the two tubes. The underside of the boat (hull) is then accessible for inspection and maintenance, and also, for example, the engine or its drive can be inspected.
We have several models, so depending on the type of boat the desired level above water the right float can be selected.
Laat alles drijven met Buitink Technology's flotation bags!
5 types tubes/ 5 models
All types and shapes of boats and catamarans are on the water. Therefore we deliver 5 types.
1. Type 41 42
1.1 Size of an inflated tube
| Diameter tube | 4.10 m |
| Length tube | 4.20 m |
| Volume tube | 55.44 m3 |
1.2 Lifting power
| Distance (m) |
Lifting capacity per tube (kg) |
Lifting capacity system of 2 tubes (kg) |
||
| 1. | A | 0.50 | 3600 | 7200 |
| B | 3.60 | |||
| 2. | A | 1.00 | 10000 | 20000 |
| B | 3.10 | |||
| 3. | A | 1.25 | 14000 | 28000 |
| B | 2.85 | |||
| 4. | A | 1.75 | 22000 | 44000 |
| B | 2.35 | |||
| 5. | A | 2.00 | 26500 | 53000 |
| B | 2.10 | |||
| A = Depth underwater | B = Height above water level | ||||
| A (max) = 2.00 m | ||||
2. Type 33 38
2.1 Size of an inflated tube
| Diameter tube | 3.30 m |
| Length tube | 3.80 m |
| Volume tube | 32.0 m3 |
2.2 Lifting power
| Distance (m) |
Liftingcapacity per tube (kg) |
Liftingcapacity system of 2 tubes (kg) |
||
| 1. | A | 0.50 | 3000 | 6000 |
| B | 2.80 | |||
| 2. | A | 1.00 | 8000 | 16000 |
| B | 2.30 | |||
| 3. | A | 1.50 | 14000 | 28000 |
| B | 1.80 | |||
| 4. | A | 1.65 | 16000 | 32000 |
| B | 1.65 | |||
| 5. | A | 2.00 | 21000 | 42000 |
| B | 1.35 | |||
| A = Depth underwater | B = Height above water level | ||||
| A (max) = 2.00m | ||||
3. Type 30 35
3.1 Size of an inflated tube
| Diameter tube | 3.00 m |
| Length tube | 3.50 m |
| Volume tube | 24.7 m3 |
3.2 Lifting power
| Distance (m) |
Lifting capacity per tube (kg) |
Lifting capacity system of 2 tubes (kg) |
||
| 1. | A | 0.50 | 2500 | 5000 |
| B | 2.50 | |||
| 2. | A | 1.00 | 7000 | 14000 |
| B | 2.00 | |||
| 3. | A | 1.50 | 12000 | 24000 |
| B | 1.50 | |||
| 4. | A | 2.00 | 17000 | 34000 |
| B | 1.00 | |||
| 5. | A | 2.20 | 19200 | 38400 |
| B | 0.80 | |||
| A = Depth underwater | B = Height above water level | ||||
| A (max) = 2.20m | ||||
4. Type 25 30
4.1 Size of an inflated tube
| Diameter tube | 2.50 m |
| Length tube | 3.00 m |
| Volume tube | 14.7 m3 |
4.2 Lifting power
| Distance (m) |
Lifting capacity per tube (kg) |
Lifting capacity system of 2 tubes (kg) |
||
| 1. | A | 0.50 | 2000 | 4000 |
| B | 2.00 | |||
| 2. | A | 0.75 | 3600 | 7200 |
| B | 1.75 | |||
| 3. | A | 1.50 | 9100 | 18200 |
| B | 1.00 | |||
| 4. | A | 2.00 | 12500 | 25000 |
| B | 0.50 | |||
| 5. | A | 2.25 | 13800 | 27600 |
| B | 0.25 | |||
| A = Depth underwater | B = Height above water level | ||||
| A (max) = 2.50m | ||||
5. Type 18 23
5.1 Size of an inflated tube
| Diameter tube | 1.80 m |
| Length tube | 2.30 m |
| Volume tube | 5.9 m3 |
5.2 Lifting power
| Distance (m) |
Lifting capacity per tube (kg) |
Lifting capacity system of 2 tubes (kg) |
||
| 1. | A | 0.50 | 1250 | 2500 |
| B | 1.30 | |||
| 2. | A | 0.75 | 2250 | 4500 |
| B | 1.05 | |||
| 3. | A | 1.00 | 3250 | 6500 |
| B | 1.00 | |||
| 4. | A | 1.50 | 5100 | 10200 |
| B | 0.30 | |||
| 5. | A | 1.60 | 5400 | 10800 |
| B | 0.20 | |||
| A = Depth underwater | B = Height above water level | ||||
| A (max) = 1.60m | ||||
Transport and storage
When empty and folded the tubes are very compact. Dimensions and weight of Type 33 38:
| Length(L) | 1.30 m |  |
| Width (B) | 1.00 m | |
| Height (H) | 0.90 m3 | |
| Weight | 185 kg |

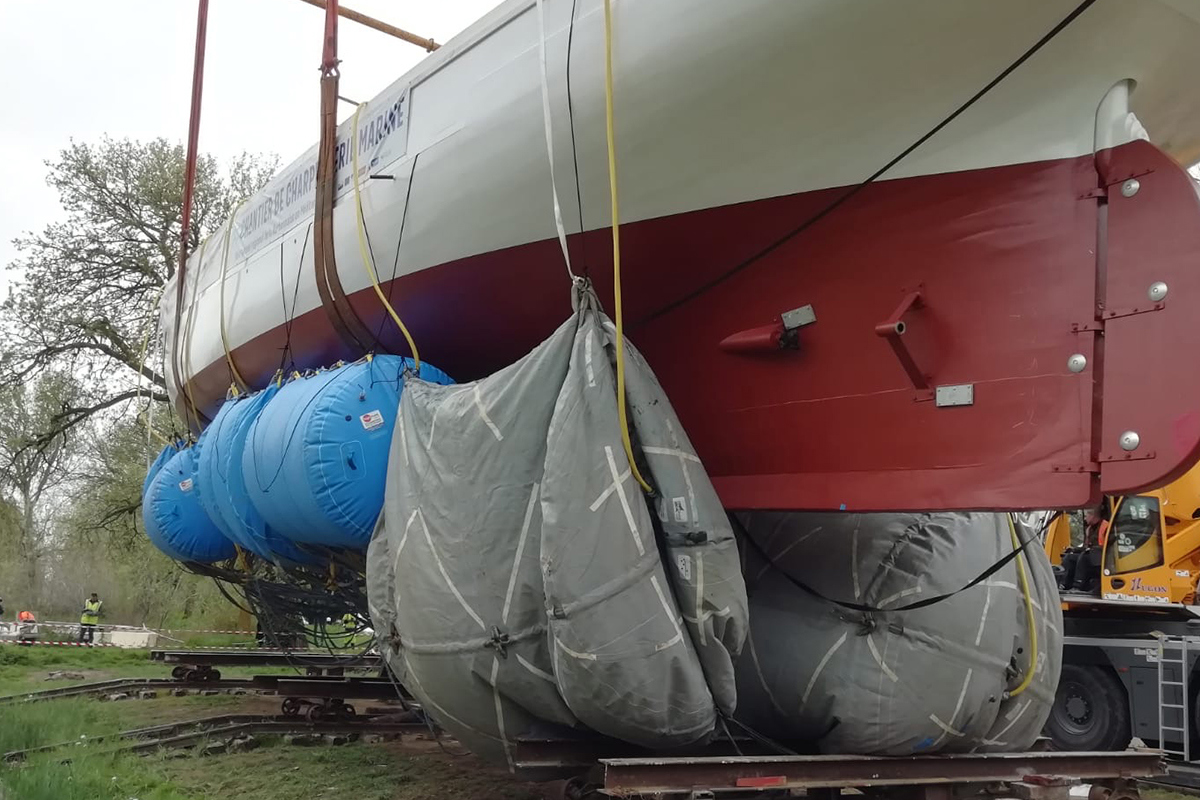

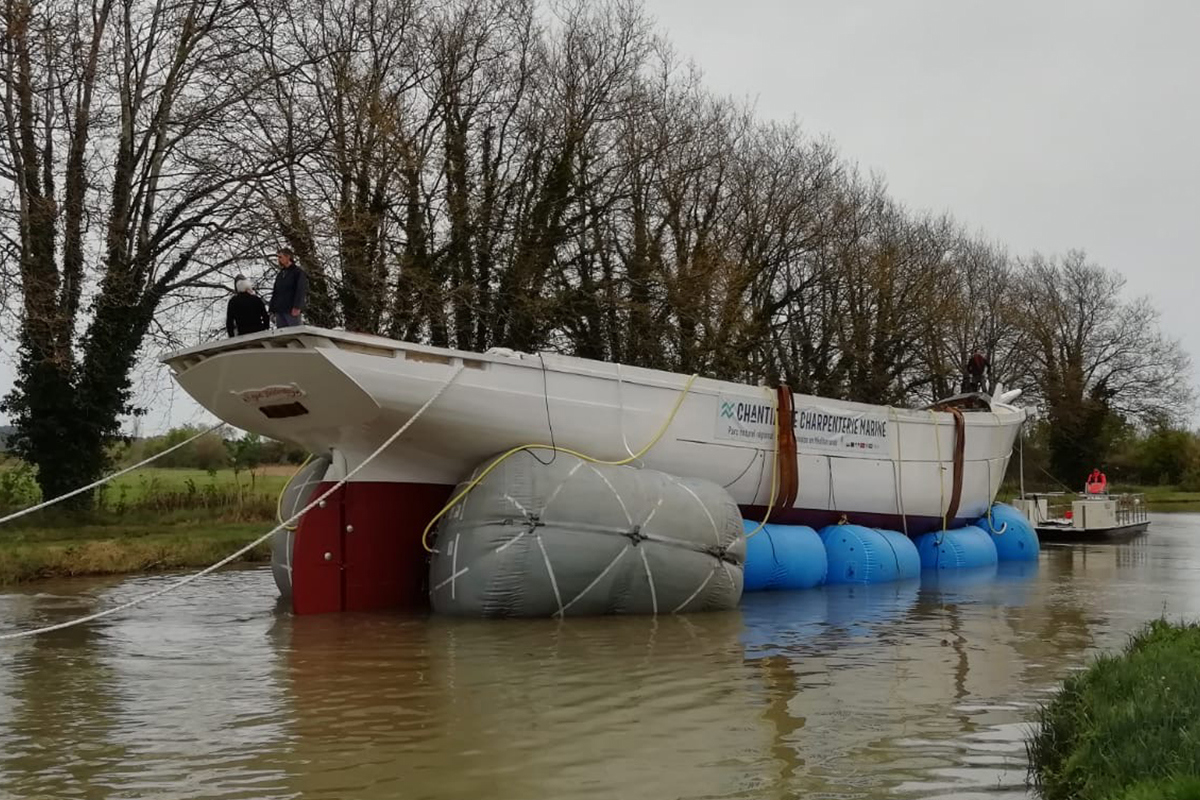

Salvaging larger and smaller boats
Besides large boats and catamarans our system can lift also small boats
