Lifting catamaran
Contact form
+31 (0)316-250830
Buitink TechnologyWhen a catamaran needs to be lifted out of the water (for example, for maintenance on the floats), this can be done with one elevator cushion placed under the boat in the middle. The elevator cushion can then be filled with air and pressurized, lifting the catamaran out of the water and making the floats and other underwater parts accessible for inspection and maintenance.
We have several models, so depending on the type of catamaran the desired level above water the right float can be selected.
Laat alles drijven met Buitink Technology's flotation bags!
5 types of tubes/ 5 models
Catamarans come in all shapes and sizes. Therefore, we supply elevator cushions in 5 standard types.
1. Type 41 42
Dimensions tube when inflated:
| Diameter tube | 4.10 m |
| Length tube | 4.20 m |
| Volume tube | 55.44 m3 |
Liftability:
| Distance (m) |
Lifting capacity per tube (kg) |
||
| 1. | A | 0.50 | 3600 |
| B | 3.60 | ||
| 2. | A | 1.00 | 10000 |
| B | 3.10 | ||
| 3. | A | 1.25 | 14000 |
| B | 2.85 | ||
| 4. | A | 1.75 | 22000 |
| B | 2.35 | ||
| 5. | A | 2.00 | 26500 |
| B | 2.10 | ||
| A = Depth underwater | B = Height above water level | |||
| A (max) = 2.00 m | |||
2. Type 33 38
Dimensions tube when inflated:
| Diameter tube | 3.30 m |
| Length tube | 3.80 m |
| Volume tube | 32.0 m3 |
Liftability:
| Distance (m) |
Liftingcapacity per tube (kg) |
||
| 1. | A | 0.50 | 3000 |
| B | 2.80 | ||
| 2. | A | 1.00 | 8000 |
| B | 2.30 | ||
| 3. | A | 1.50 | 14000 |
| B | 1.80 | ||
| 4. | A | 1.65 | 16000 |
| B | 1.65 | ||
| 5. | A | 2.00 | 21000 |
| B | 1.35 | ||
| A = Depth underwater | B = Height above water level | |||
| A (max) = 2.00 m | |||
3. Type 30 35
Dimensions tube when inflated:
| Diameter tube | 3.00 m |
| Lengte tube | 3.50 m |
| Volume tube | 24.7 m3 |
Liftability:
| Distance (m) |
Lifting capacity per tube (kg) |
||
| 1. | A | 0.50 | 2500 |
| B | 2.50 | ||
| 2. | A | 1.00 | 7000 |
| B | 2.00 | ||
| 3. | A | 1.50 | 12000 |
| B | 1.50 | ||
| 4. | A | 2.00 | 17000 |
| B | 1.00 | ||
| 5. | A | 2.20 | 19200 |
| B | 0.80 | ||
| A = Depth underwater | B = Height above water level | |||
| A (max) = 2.20 m | |||
4. Type 25 30
Dimensions tube when inflated:
| Diameter tube | 2.50 m |
| Lengte tube | 3.00 m |
| Volume tube | 14.7 m3 |
Liftability:
| Distance (m) |
Lifting capacity per tube (kg) |
||
| 1. | A | 0.50 | 2000 |
| B | 2.00 | ||
| 2. | A | 0.75 | 3600 |
| B | 1.75 | ||
| 3. | A | 1.50 | 9100 |
| B | 1.00 | ||
| 4. | A | 2.00 | 12500 |
| B | 0.50 | ||
| 5. | A | 2.25 | 13800 |
| B | 0.25 | ||
| A = Depth underwater | B = Height above water level | |||
| A (max) = 2.50 m | |||
5. Type 18 23
Dimensions tube when inflated:
| Diameter tube | 1.80 m |
| Lengte tube | 2.30 m |
| Volume tube | 5.9 m3 |
Liftability:
| Distance (m) |
Lifting capacity per tube (kg) |
||
| 1. | A | 0.50 | 1250 |
| B | 1.30 | ||
| 2. | A | 0.75 | 2250 |
| B | 1.05 | ||
| 3. | A | 1.00 | 3250 |
| B | 1.00 | ||
| 4. | A | 1.50 | 5100 |
| B | 0.30 | ||
| 5. | A | 1.60 | 5400 |
| B | 0.20 | ||
| A = Depth underwater | B = Height above water level | |||
| A (max) = 1.60 m | |||
Transport and storage

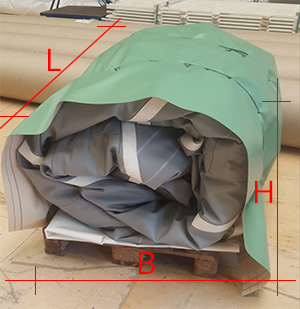

When empty and folded the tubes are very compact. Dimensions and weight of Type 33 38:
| Length (L) | 1.30 m |  |
| Width(B) | 1.00 m | |
| Height(H) | 0.90 m3 | |
| Weight | 185 kg |
On-site catamaran maintenance

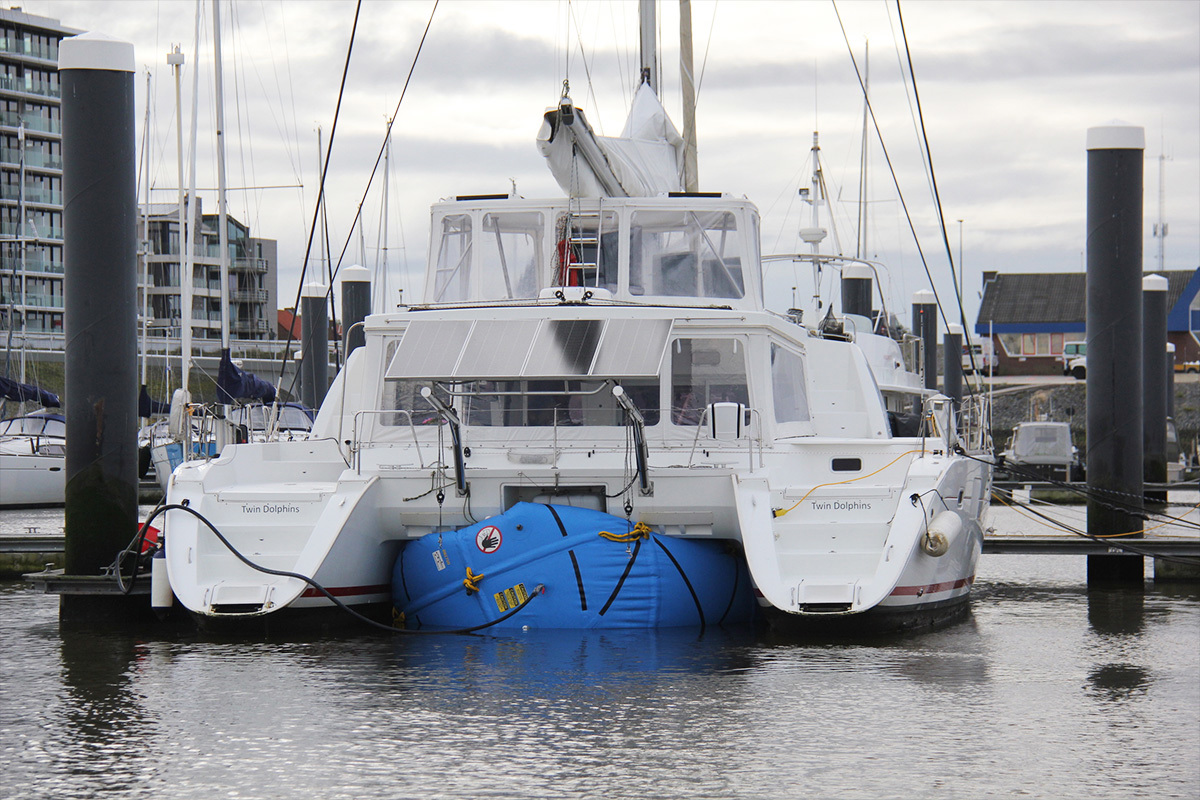

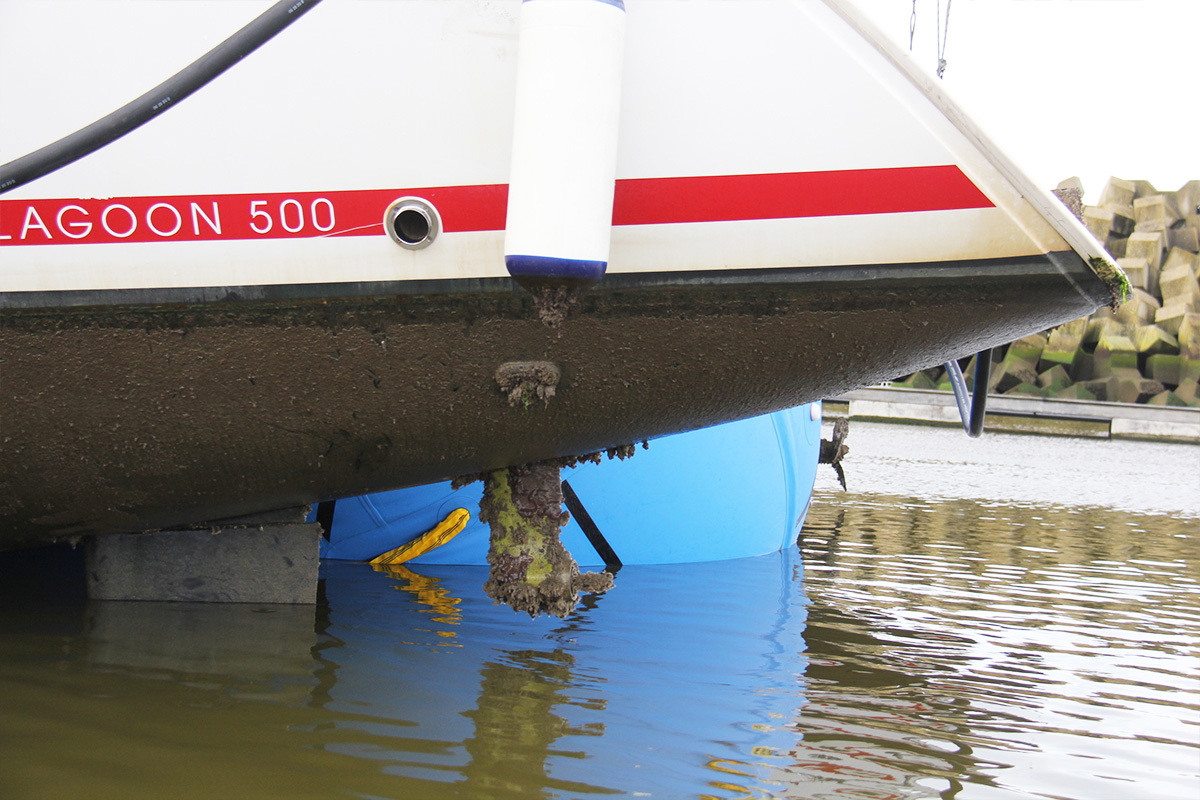

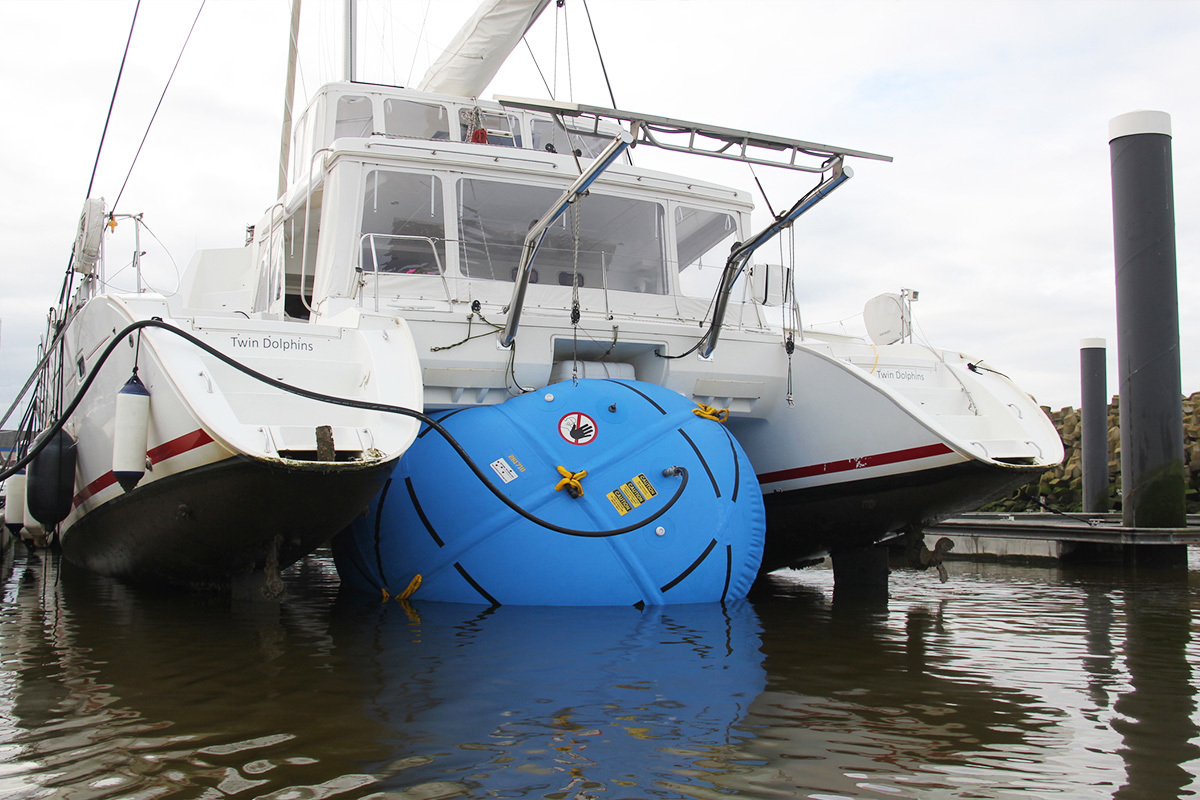

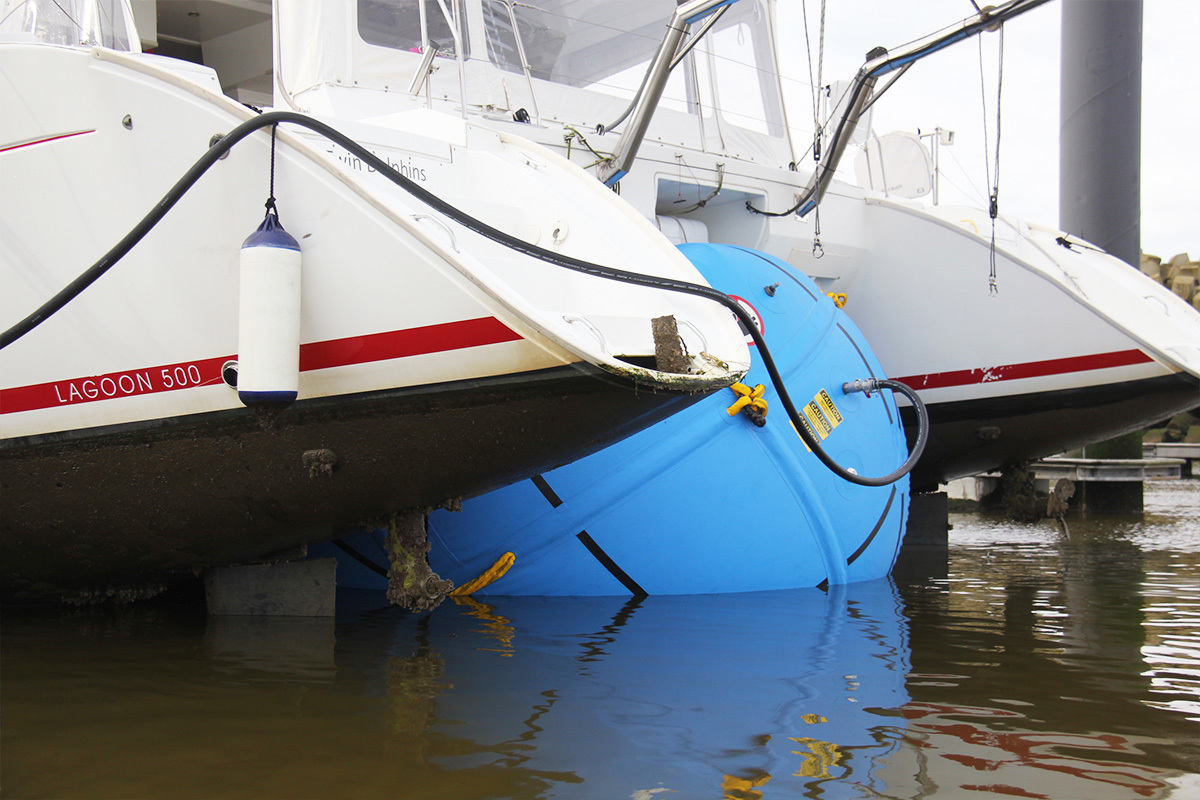

Below is a good view of how certain parts of a catamaran were lifted above the water level so that on-site maintenance could be performed.
